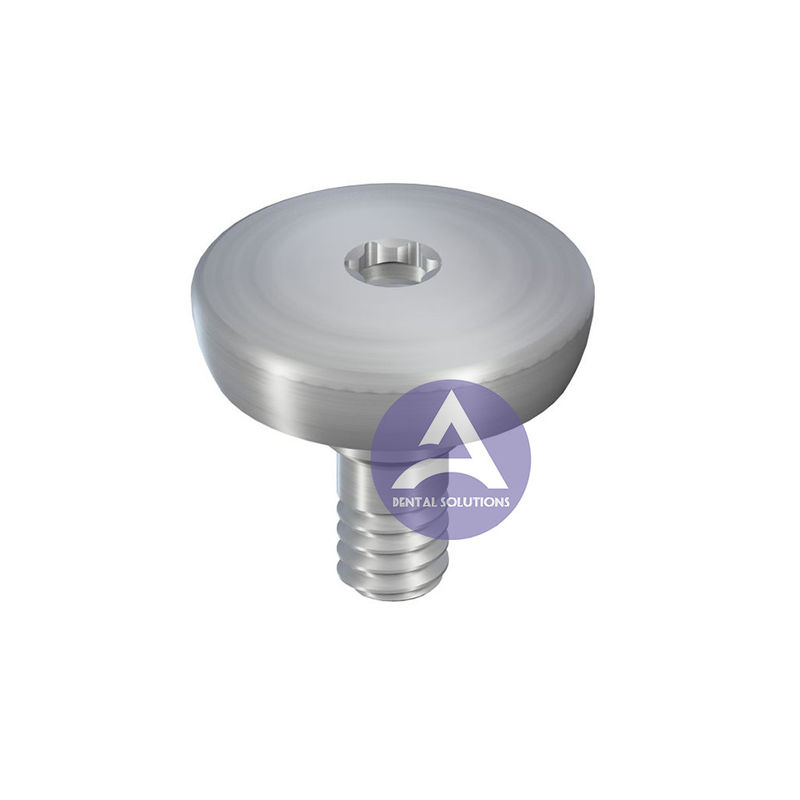

WN Implant Healing Abutment Ø 7.2mm H 4.5mm

Basic Information
Place of Origin: China
Brand Name: ANGELS
Certification: TUV CE, ISO13485, ISO9001
Model Number: ITI Straumann Tissue Level®
Minimum Order Quantity: 10pcs
Price: USD6-9
Packaging Details: 1pcs/bag
Delivery Time: 3~5 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500,000pcs/month
Detail Information
Material: Ti 6AI-4V ELI (Grade 5) Warranty: 12 Months
After-sale Service: Online Technical Support Compatible: WN (Wide Neck)
Gingival: 2mm/3mm/4.5mm Properties: Implant Materials & Artificial Organs
Product Tolerance: +-0.01mm Diameter: Ø 7.2mm
REF No.: 048.038S / 048.039S / 048.053S
High Light:

4.5mm Implant Healing Abutment


WN Implant Healing Abutment

Product Description

ITI Straumann WN Healing abutment - Ø 7.2mm, H 2mm/3mm/4.5mm


ITI Straumann Tissue Level® Implant Titanium Healing Cap Abutment Compatible

RC Ø 7.2mm, H: 2mm/3mm/4.5mm


Ti 6AI-4V ELI (Supply from Germany)



048.038S / 048.039S / 048.053S



* Titanium interface abutment

* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility

* Can production Custom Gingival Heights


WN Implant Healing Abutment  Ø 7.2mm H 4.5mm 0



WN Implant Healing Abutment  Ø 7.2mm H 4.5mm 1

WN Implant Healing Abutment  Ø 7.2mm H 4.5mm 2

WN Implant Healing Abutment  Ø 7.2mm H 4.5mm 3


Connection Type
RN (Regular Neck)
2mm / 3mm / 4.5 mm
Ø 7.2 mm
Implant Platform
Regular Neck Ø 6.5 mm
Implant Line
Tissue Level Implants
Implant Category
Healing Cap, Healing Abutment




Tissue level and tapered effect implant


WN Implant Healing Abutment  Ø 7.2mm H 4.5mm 4

Fig. 1

All healing abutments employ the same Torx (SCS) driver tip regardless of the implant/abutment platform diameter, except one NN healing abutment catalog # 048.374, which uses a hex driver.
Narrow neck (NN) healing abutments (Fig.2, top row) are produced in three versions, one plastic (3.4mm height), one metal (3.4mm height) and a low profile (1.8mm) metal abutment.
Regular neck (RN) healing abutments (Fig.1) are offered in five configurations. Three straight walled metal abutments in heights of 2mm, 3mm and 4.5mm. Two metal abutments with a bevel machined on one side of the body. This bevel is intended to aide in proper tissue contour development during the healing phase and should be changed to

WN Implant Healing Abutment  Ø 7.2mm H 4.5mm 5

Fig. 2

straight walled healing abutment after about three weeks. One of the beveled abutments has a height of 2mm and the other has a height of 3.5mm.
Wide neck (WN) healing abutments (Fig.2, middle and bottom row) are available in three straight walled heights of 2mm, 3mm and 4.5mm. One beveled abutment with a 2mm height to effect a more favorable tissue contour during the initial healing period.
