| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | Nobel Biocare Active® |
| Minimum Order Quantity: | 5pcs |
| Price: | USD10-14 (included screw) |
| Packaging Details: | 1pcs/bag |
| Delivery Time: | 3~5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Ti 6AI-4V ELI (Grade 5) | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Connection: | Engaging |
| Compatible: | 3.0mm/ NP 3.5mm/ RP 4.3mm/ WP 5.5mm | Properties: | Implant Materials & Artificial Organs |
| Product Tolerance: | +-0.01mm | ||
| High Light: | Nobel Biocare Ti Base Abutment,Nobel Active Ti Base Abutment,TUV CE Ti Base Abutment |
||

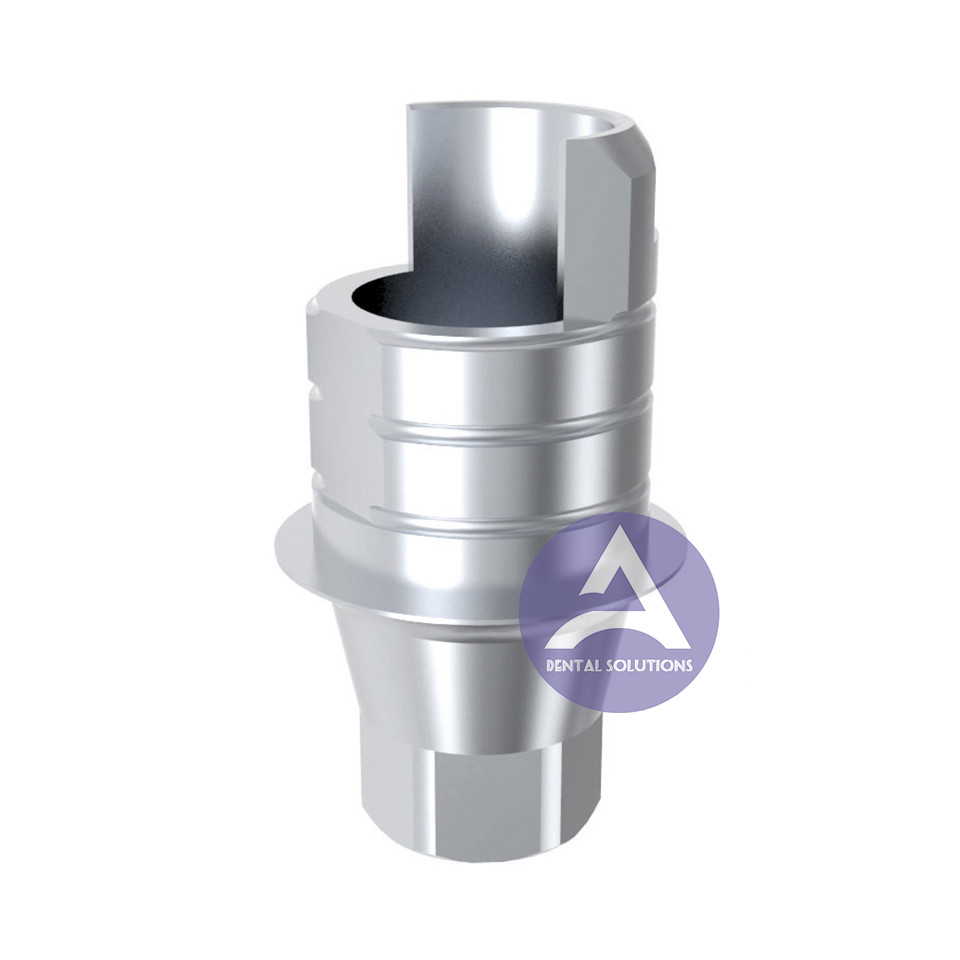

Nobel Biocare Active® Titanium Ti-Base Abutment Compatible
3.0mm/ NP 3.5mm/ RP 4.3mm/ WP 5.5mm
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
* Titanium interface abutment
* 1pc Screw Included
* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility
* Exterior retentions for more cementation bonding
Specific design ensures a stable union, reinforcing the structure of zirconium in the areas of greatest stress, softening edges and ensuring the service life of the prosthesis.
Furthermore, the saving is also shown in the less time needed when working on the most sensitive part of the prosthesis, the adjustment with the implant.
Approved by CE, ISO 9001, ISO 13485
|
|
TITANIUM BASE |
A |
B |
C |
D |
||
| 15.041 | NP | Non-engaging | 3,50 | Circular | 0,30 | 4,90 | |
| 16.041 | NP | Engaging | 3,50 | Hex 2,25 | 0,30 | 4,90 | |
| 15.042 | RP | Non-engaging | 4,30 | Circular | 0,30 | 4,90 | |
| 16.042 | RP | Engaging | 4,30 | Hex 2,25 | 0,30 | 4,90 | |
Points of NobelActive™ Snappy Abutment:
Fig. 2
Snappy™ abutments intended for posterior restorations are fabricated in two abutment heights of 4mm (Fig.2, top row) and 5.5mm (Fig.2, bottom row) with a choice of two (1.5, 3mm) collar heights for both platform diameters. RP/WP Snappy™ abutments are produced with two emergence profiles, regular and wide. Each abutment is packaged with a final screw to make a complete kit. None of the abutments are color coded or otherwise marked to identify the platform diameter, only the abutment height is indicated by the numbers 4 and 5 printed on the abutment.
