| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | Astra OsseoSpeed® |
| Minimum Order Quantity: | 10pcs |
| Price: | USD1.5~3.5/pc |
| Packaging Details: | 10pcs/bag |
| Delivery Time: | 3~5 Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Titanium GR5 | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Size: | NP 3.0mm/ RP 3.5-4.0mm/ WP 4.5-5.0mm |
| Hex: | 1.27mm | Properties: | Implant Materials & Artificial Organs |
| Product Tolerance: | +-0.01mm | ||
| High Light: | 3.0mm Dental Implant Titanium Screw,Astra OsseoSpeed Implant Screw,Astra OsseoSpeed Titanium Screw |
||

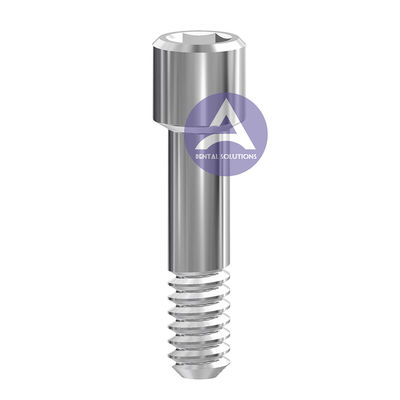

Astra OsseoSpeed NP 3.0mm Dental Implant Titanium Screw
Astra OsseoSpeed® Dental Implant Titanium Screw
Astra OsseoSpeed®
* NP 3.0mm
* RP 3.5-4.0mm
* WP 4.5-5.0mm
Compatible driver = Screwdriver Hex 1.27mm
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
- Accuracy, lighting intensity
- Identical to the original screw design
- Tool inspection with 150% of the original torque value
- Hand inspection of the threaded part
Their design ensures a perfect fit with standard accessories as well as with special CAD / CAM systems for structures, bridges and special abutments, bridges, bars, etc.
Approved by CE, ISO 9001, ISO 13485
|
|
SCREW HEX. |
A |
B |
C |
|
| 19.015 | NP | ||||
| 19.016 | RP | M 1,60 | 2,35 | 8,25 | |
| 19.017 | WP | M 1,60 | 2,35 | 8,25 | |
| 19.615 | NP | ||||
| 19.616 | RP | M 1,60 | 2,35 | 8,25 | |
| 19.617 | WP | M 1,60 | 2,35 | 8,25 | |
Points of Astra OsseoSpeed™ Screw:
Final screws
Each platform diameter group (3.0), (3.5/4.0), (4.5/5.0) has its own specific screw and the screws are not interchangeable from platform diameter to platform diameter. Final screws are included with the abutments as a kit but also available separately. No differentiating markings or color coding is present on any of the silver colored final screws.
Lab screws
All screws are torqued with a 0.050 hex driver to a platform diameter specific torque value (3.0 15Ncm, 3.5/4.0 20Ncm, 4.5/5.0 25Ncm). Laboratory screws are available and are color coded in accordance with the platform diameter group color identification scheme (3.0 yellow, 3.5/4.0 aqua, 4.5/5.0 lilac). DesignLine™ abutments (TiDesign™, ZirDesign™, CastDesign™, TempDesign™) share the same platform dependent screws.
UniAbutment screws
Angled UniAbutment screws for the UniAbutments themselves are included with each UniAbutment to make a complete kit. Two implant/abutment platform diameter (3.5/4.0, 4.5/5.0) specific screws are produced and separately available for purchase. Screws for UniAbutment UCLA's (20°, 45°, angled) are much smaller than regular abutment screws. Each UCLA is packaged with a hexed (0.050 hex) final screw and a separate slotted final screw is offered separately. The UCLA screws are torqued to 15Ncm only.
