Biomet 3i Certain NP 3.4mm RP 4.1mm Dental Implant Temporary

Basic Information
Place of Origin: China
Brand Name: ANGELS
Certification: TUV CE, ISO13485, ISO9001
Model Number: Biomet 3i Certain®
Minimum Order Quantity: 5pcs
Price: USD10-14 (included screw)
Packaging Details: 1pcs/bag
Delivery Time: 3~5 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500,000pcs/month
Detail Information
Material: Ti 6AI-4V ELI (Grade 5) Warranty: 12 Months
After-sale Service: Online Technical Support Connection: Engaging & Non-Engaging
Compatible: NP 3.4mm/ RP 4.1mm/ WP 5.0mm Properties: Implant Materials & Artificial Organs
Product Tolerance: +-0.01mm
High Light:

RP 4.1mm Dental Implant Temporary

,

NP 3.4mm Implant Temporary

,

Biomet 3i Certain Implant Temporary


Product Description

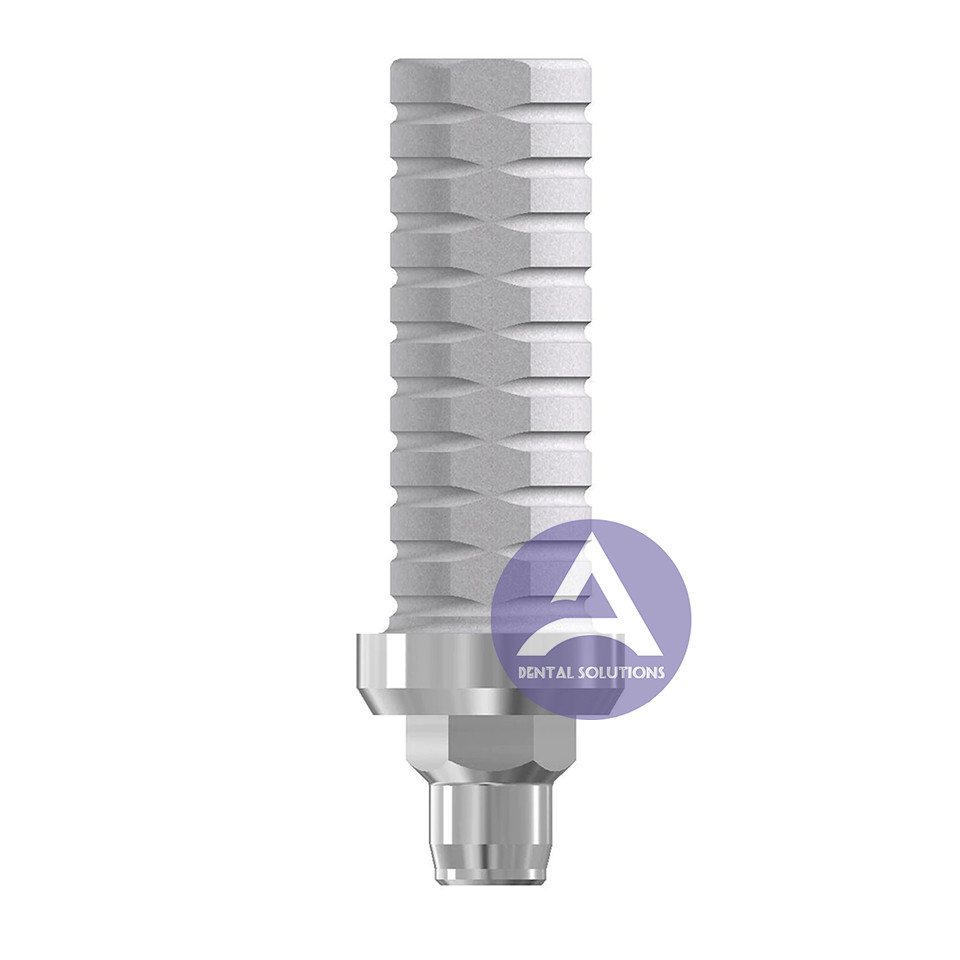

Biomet 3i Certain NP 3.4mm RP 4.1mm Dental Implant Temporary



Biomet 3I Certain® Titanium Temporary Abutment Compatible

NP 3.4mm/ RP 4.1mm/ WP 5.0mm (Engaging & Non-Engaging)



Material:
Ti 6AI-4V ELI (Supply from Germany)



Feature:

* Titanium interface abutment
* 1pc Screw Included

* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility
* Exterior retentions for more cementation bonding



Specific design ensures a stable union, reinforcing the structure of zirconium in the areas of greatest stress, softening edges and ensuring the service life of the prosthesis.



Furthermore, the saving is also shown in the less time needed when working on the most sensitive part of the prosthesis, the adjustment with the implant.


Approved by CE, ISO 9001, ISO 13485



Biomet 3i Certain NP 3.4mm RP 4.1mm Dental Implant Temporary 0









TEMPORARY ABUTMENT





A



B



C



D

24.014 NP Non-engaging 3,45 Hex.2,15 1,50 4,50
25.014 NP Engaging 3,45 Circular 1,50 4,50
24.015 RP Non-engaging 4,10 Hex.2,70 1,50 4,90
25.015 RP Engaging 4,10 Circular 1,50 4,90
24.016 WP Non-engaging 5,00 Hex.2,70 1,50 5,90
25.016 WP Engaging 5,00 Circular 1,50 5,90





Points of Biomet 3i Certain® internal hex abutment:



Biomet 3i Certain NP 3.4mm RP 4.1mm Dental Implant Temporary 1

Fig. 8

Provide® abutments are intended to be delivered by the surgeon, sparing the restoring dentist from having to take open or closed tray fixture level impressions. Instead, abutment level impressions are taken with abutment specific plastic impression copings. Only straight Provide® abutments are offered. Abutments are machined in three collar heights of 1, 2 and 3mm (Fig.8). Emergence profiles are divided in to two groups of 4.8mm for 4.1mm implant/abutment connections and 6.5mm for 5mm and 6mm implant/abutment interfaces.



Biomet 3i Certain NP 3.4mm RP 4.1mm Dental Implant Temporary 2

Fig. 9



The abutment height itself is produced in two heights of 4 and 5.5mm (Fig.9). Both abutment heights are color coded according to the abutment height and abutment/implant connection diameter. Yellow indicates a abutment height of 4mm and silver (no color) indicates a abutment height of 5.5mm for the 4.1mm implant/abutment interface diameter. Green connotates a 4mm abutment height and brown signals a 5.5mm abutment height for both 5mm and 6mm implant/abutment connection diameters. Implant/abutment interfaces are color coded for platform identification blue (4.1mm), yellow (5mm) and green (6mm). Provide® abutments are not offered for 3.4mm implant/abutment platform interfaces.
