|Place of Origin:||China|
|Certification:||TUV CE, ISO13485, ISO9001|
|Model Number:||DIO SM®|
|Minimum Order Quantity:||10pcs|
|Price:||USD8~12/pcs (included screw, 10mm)|
|Delivery Time:||3~5 days|
|Payment Terms:||T/T, Western Union, MoneyGram|
|Material:||Ti 6AI-4V ELI (Grade 5)||Warranty:||12 Months|
|After-sale Service:||Online Technical Support||Size:||10mm, 14mm|
|Compatible:||Mini / Regular(Wide)||Connection:||Engaging|
|Properties:||Implant Materials & Artificial Organs||Product Tolerance:||+-0.01mm|
DIO SM® Pre Milled Abutment,
Regular Pre Mill Abutment,
Mini Pre Mill Abutment
Compatible Mini Regular DIO SM® Pre Milled Abutment

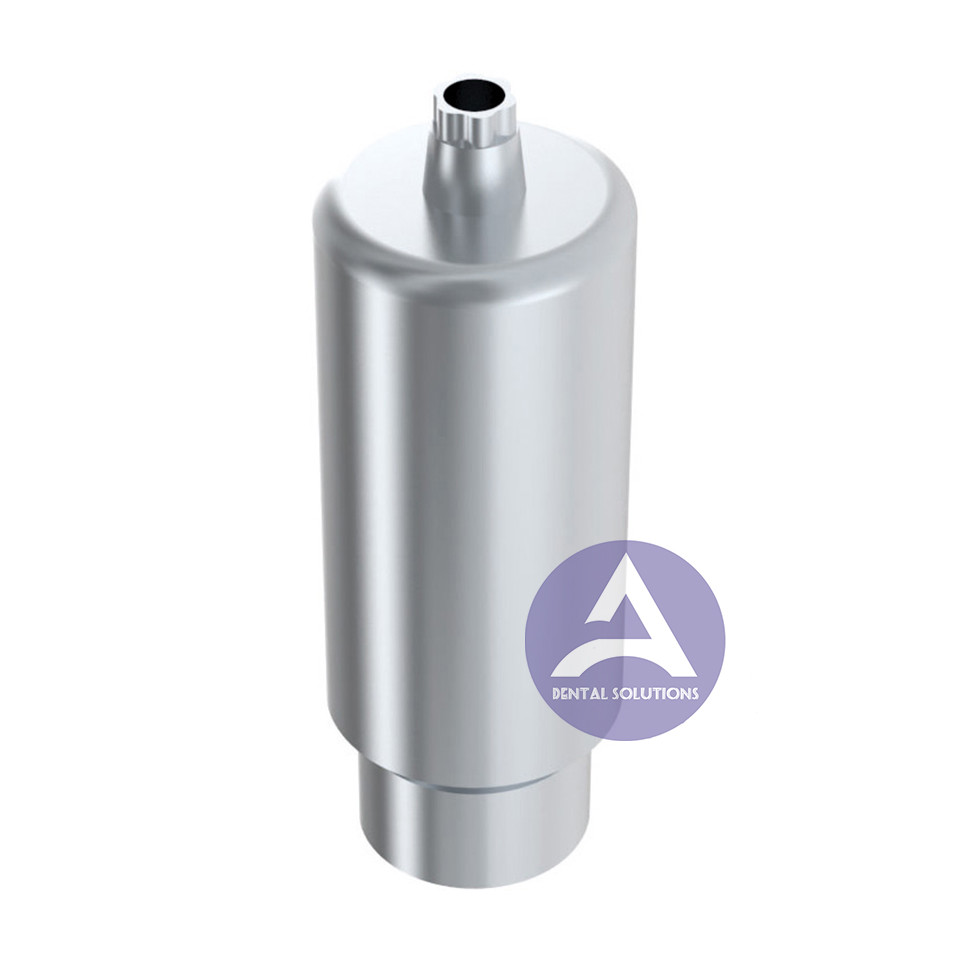

DIO SM® Implant Internal Titanium Premill Blank 10mm Engaging Compatible
Mini / Regular(Wide)
The O.3mm machined surface on the top part of the implant enables to ensure the apparent implant insertion depth. Following implant placement, it functions as 'Platform Switching' since the soft-tissue and bone naturally heal over the implant.
Double Thread - Cortical Bone Fixation
Double thread is designed to prevent damage to the cortical bone. It enhances the initial stability and provides the function of preventing cortical absorption from bacterial infection.
Body Thread - Cancellous Bone Fixation
The streamlined body-thread of the screw is designed to avoid bone fracture under inserting pressure. As the double - thread is connected to the tapered body-thread, it supports the primary stability
Widely designed pitch distance can endure the inserting pressure due to the sufficient support from bone structure.
8mm and 10mm implants have a single cutting edge, 12mm and 14mm implants have dual cutting edges on both sections; the double-thread and the body-thread, these cutting edges are designed to minimised the bone resistance and to facilitate easy self-tapping as well as primary stability.
The apex profile facilitates ease of insertion, reduced potential run-out and minimised bone resistance.
