| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | Biomet 3i Certain® |
| Minimum Order Quantity: | 10pcs |
| Price: | USD15-20/pc, included screw |
| Packaging Details: | 1pcs/bag |
| Delivery Time: | 3~5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Ti 6AI-4V ELI (Grade 5) | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Gingival: | 1mm/2mm/3mm/Customized |
| Compatible: | NP 3.4mm/ RP 4.1mm/ WP 5.0mm | Properties: | Implant Materials & Artificial Organs |
| Product Tolerance: | +-0.01mm | ||
| High Light: | Biomet 3i Dental Implants Abutment,Biomet 3i Implants Abutment,WP 5.0mm Implants Abutment |
||

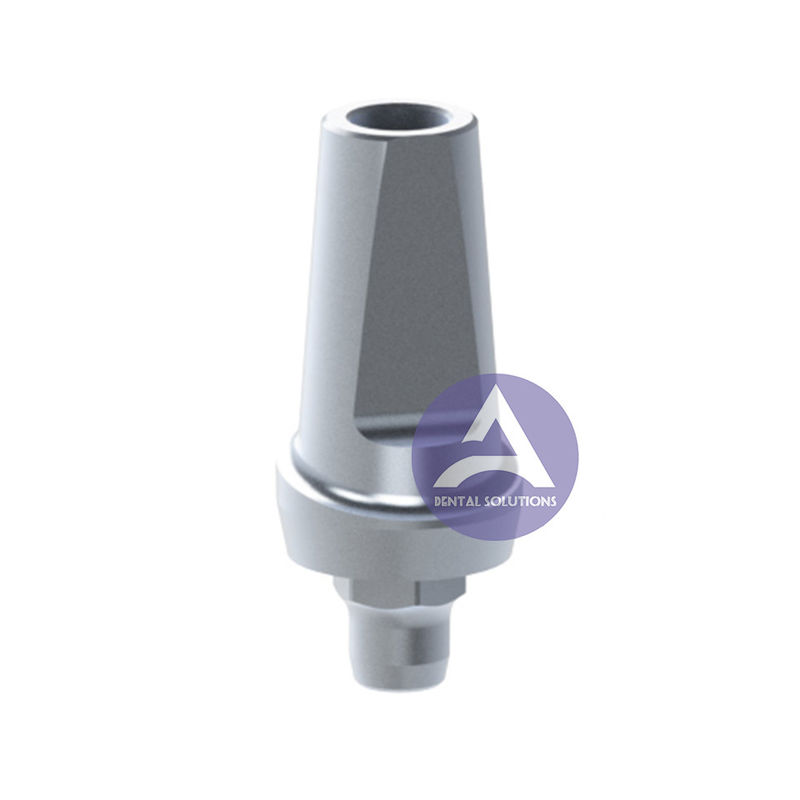

RP 4.1mm WP 5.0mm Biomet 3i Dental Implants Abutment
Biomet 3i Certain® Titanium Straight Abutment Compatible
NP 3.4mm / RP 4.1mm / WP 5.0mm
Desciption:
This staight abutment comes with a screw that takes a 1.2mm hex driver
This abutment is prep-able with a 1mm/2mm/3mm collar height. (Or according your customize request)
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
* Titanium interface abutment
* 1pc Screw Included
* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility
* Can production Custom interface
Approved by CE, ISO 9001, ISO 13485
|
|
ABUTMENT |
A |
B |
C |
D |
|
| 13.014 | NP | 3,45 | Hex.2,15 | 2,00 | 4,50 | |
| 13.015 | RP | 4,10 | Hex.2,70 | 2,00 | 4,90 | |
| 13.016 | WP | 5,00 | Hex.2,70 | 2,00 | 5,90 | |
Points of Biomet 3i Certain® internal hex Abutment:
Fig. 4
4.1, 5.0 and 6.0mm platform (implant/abutment interface diameter) Certain® implants are machined with a double indexing feature consisting of a internal hexagon inside the implant in the coronal portion and a duodegon (double hexagon) deeper inside the implant while 3.4mm platform implant are machined with a duodegon only. Abutments engage only one of these two indexing features based on the style of abutment (straight, pre angled). The indexing feature of 5.0 and 6.0mm platform implants are machined to the same dimension regardless of platform diameter. This attribute enables platform switching within the aforementioned platform diameters. 3.4mm and 4.1mm platform implants can not platform switch.
Fig. 5
A secondary feature called QuickSeat® (Fig.4) gives the clinician tactile and audible feedback when seating the abutment in the patient to verify complete seating. The QuickSeat® feature consists of delicate prongs machined in to the most "apical" portion of the abutment. These prongs should be deactivated during the laboratory phase and activated just before installing the abutment in to the patient with a special QuickSeat® tool.
