| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | Nobel Biocare Active® |
| Minimum Order Quantity: | 10pcs |
| Price: | USD15-20/pc, included screw |
| Packaging Details: | 1pcs/bag |
| Delivery Time: | 3~5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Ti 6AI-4V ELI (Grade 5) | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Gingival: | 1mm/2mm/3mm/Customized |
| Compatible: | NP 3.5mm / RP 4.3mm | Properties: | Implant Materials & Artificial Organs |
| Product Tolerance: | +-0.01mm | Screwdriver: | N-Torx |
| Highlight: | 3.5mm Dental Implants Abutment,NP 3.5mm Dental Abutment,NP 3.5mm Implant Abutment |
||

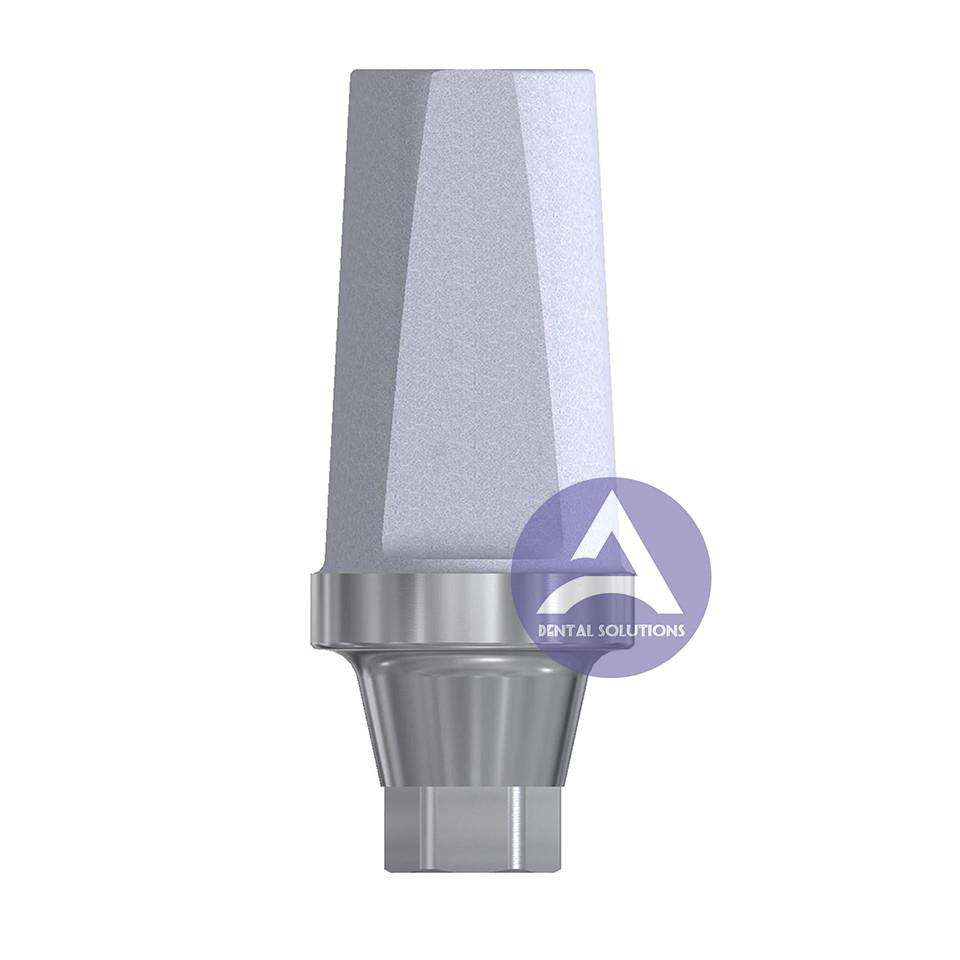

Nobel Biocare Active® Titanium Straight Abutment Compatible
NP 3.5mm / RP 4.3mm
Desciption:
This staight abutment comes with a screw that takes a Nobel-Torx driver
This abutment is prep-able with a 1mm/2mm/3mm collar height. (Or according your customize request)
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
* Titanium interface abutment
* 1pc Screw Included
* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility
* Can production Custom interface
Approved by CE, ISO 9001, ISO 13485
|
|
ABUTMENT |
A |
B |
C |
D |
|
| 13.041 | NP | 3,00 | Hex 2,25 | 2,00 | 4,50 | |
| 13.042 | NP | 3,35 | Hex 2,25 | 2,00 | 4,90 | |
Points of NobelActive™ Straight Abutment:
Fig. 1
Titanium abutments are designed with a sloping collar as a straight and angled (15°) version. The angle and lowest point of the sloping collar are machined in relation to one of the flat sides of the internal hexagon indexing feature. Each abutment is packaged with a final screw to make a complete kit. NP (3.5mm) and RP/WP (4.3/4.9mm) platform abutments are produced in four versions, two straight (Fig.1, top row) with a 1.5mm or 3mm collar and two angled (Fig.1, bottom row) with a 1.5mm or 3mm collar also. None of the abutments are color coded or otherwise marked to identify the platform diameter.
