| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | Zimmer Tapered Screw-Vent® |
| Minimum Order Quantity: | 5pcs |
| Price: | USD10-14 (included screw) |
| Packaging Details: | 1pcs/bag |
| Delivery Time: | 3~5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Ti 6AI-4V ELI (Grade 5) | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Connection: | Engaging |
| Compatible: | NP 3.5mm/ RP 4.5mm/ WP 5.7mm | Properties: | Implant Materials & Artificial Organs |
| Product Tolerance: | +-0.01mm | ||
| High Light: | WP 5.7mm Ti Base Abutment,NP 3.5mm Ti Base Abutment,RP 4.5mm Ti Base Abutment |
||

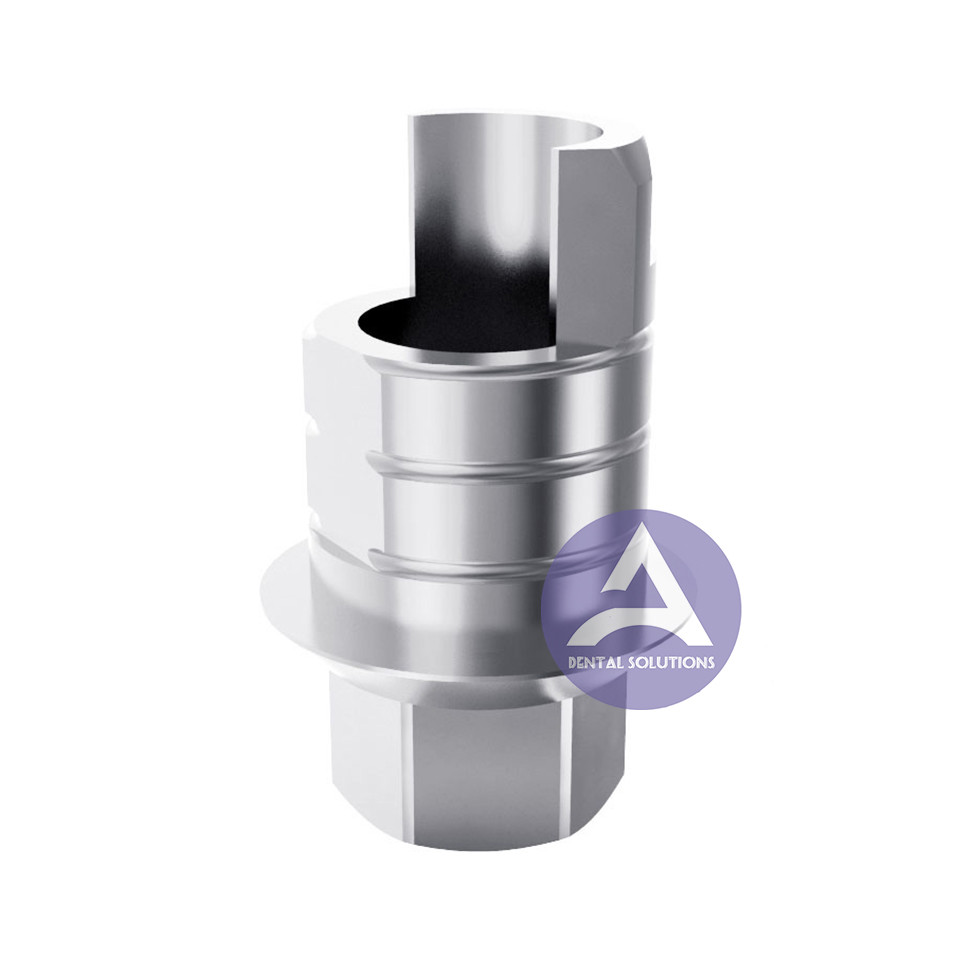

Zimmer Tapered Screw-Vent® Titanium Ti-Base Abutment Compatible
NP 3.5mm/ RP 4.5mm/ WP 5.7mm
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
* Titanium interface abutment
* 1pc Screw Included
* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility
* Exterior retentions for more cementation bonding
Specific design ensures a stable union, reinforcing the structure of zirconium in the areas of greatest stress, softening edges and ensuring the service life of the prosthesis.
Furthermore, the saving is also shown in the less time needed when working on the most sensitive part of the prosthesis, the adjustment with the implant.
Approved by CE, ISO 9001, ISO 13485
|
|
TI BASE |
B |
C |
D |
||
| 15.017 | NP | Non-engaging | Circular | 0,80 | 4,50 | |
| 16.017 | NP | Engaging | Hex.2,42 | 0,80 | 4,50 | |
| 15.018 | RP | Non-engaging | Circular | 0,80 | 4,50 | |
| 16.018 | RP | Engaging | Hex.2,42 | 0,80 | 4,50 | |
| 15.019 | WP | Non-engaging | Circular | 0,80 | 5,70 | |
| 16.019 | WP | Engaging | Hex.3,05 | 0,80 | 5,70 | |
Points of Zimmer Tapered Screw-Vent® (TSV), Screw-Vent®:
Fig. 3
Short titanium Hex-Lock® abutments (Fig.3) are primarily intended for posterior restorations. Abutments are machined with a non sloping collar and a collar height choice of 1mm and 2mm for all three platform diameters (3.5,4.5, 5.7mm). The emergence profile expands one millimeter from the original platform diameter and the abutment height from the intended margin for the cementable restoration is 4mm regardless of platform diameter. Each abutment is packaged with a final fixation screw to make a complete kit. Abutment screws are trapped at will inside the abutment due to engineering ingenuity and replaceable in case of screw failure.
Fig. 4
Bulk titanium abutments (Fig.4) are machined without collar and may require extensive prepping. None of the abutments are color coded or otherwise marked for platform diameter identification. Abutment screws are trapped at will inside the abutment due to engineering ingenuity and replaceable in case of screw failure. Angled bulk abutments are machined with a 20° angle in relation to one of the flat sides of the indexing feature. 3.5mm platform straight abutments are produced in three emergence profile diameters (3.5, 4.5, 5.5mm) and 4.5mm platform abutments are also available in three emergence profiles of 4.5, 5.5 and 6.5mm while 5.7mm platform abutments are fabricated with a emergence profile of 6.5mm. Angled abutments are fashioned with a emergence profile diameter 1mm larger than the respective platform diameter. Each abutment is packaged with a final fixation screw to make a complete kit.
