| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | Camlog® |
| Minimum Order Quantity: | 10pcs |
| Price: | USD6-9 |
| Packaging Details: | 1pcs/bag |
| Delivery Time: | 3~5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Ti 6AI-4V ELI (Grade 5) | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Compatible: | 3.3mm/ 3.8mm/ 4.3mm/ 5.0mm |
| Gingival: | 3mm/ 4mm/ 5mm/ 6mm/Customized | Properties: | Implant Materials & Artificial Organs |
| Product Tolerance: | +-0.01mm | Screwdriver: | Hex 1.27mm |
| High Light: | Camlog Implant Healing Abutment,Camlog Healing Abutment,3.3mm Healing Abutment |
||

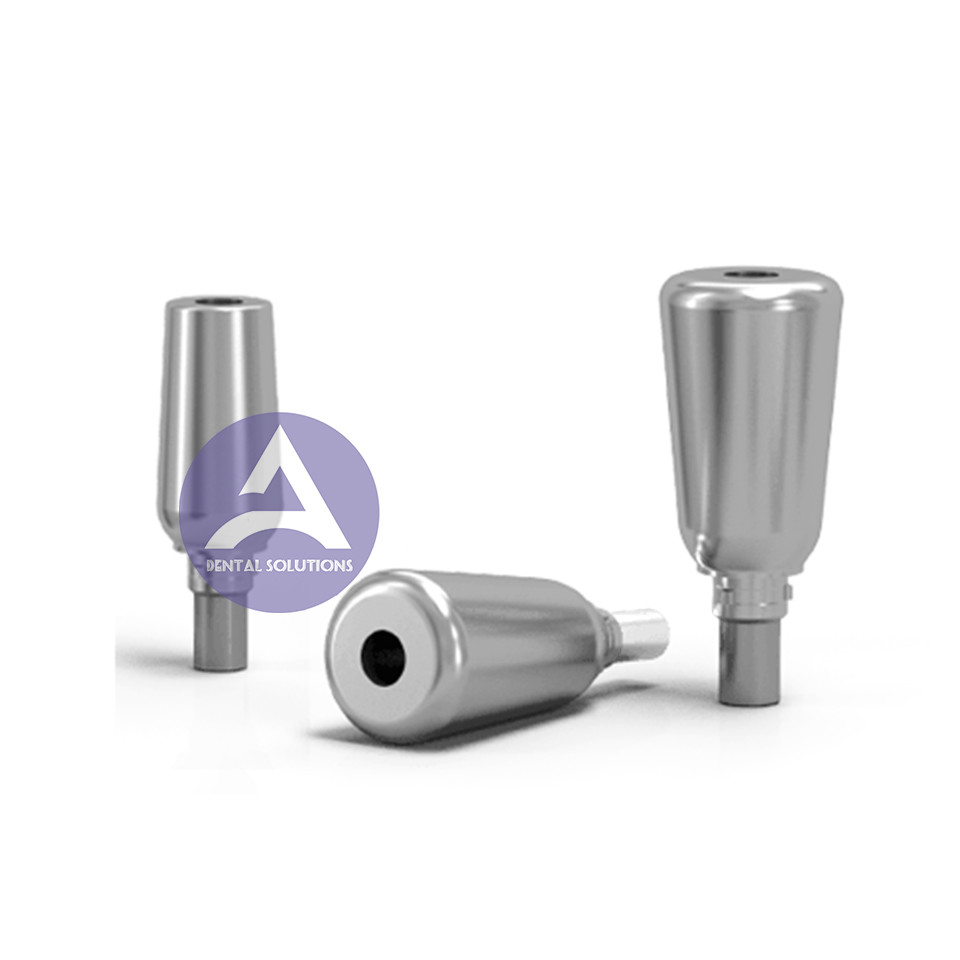

Camlog® Implant Titanium Healing Cap Abutment Compatible
3.3mm/ 3.8mm/ 4.3mm/ 5.0mm
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
* Titanium interface abutment
* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility
* Can production Custom Gingival Heights
Points of Camlog™ Healing Cap:
Fig. 1
Healing abutments are produced in three configurations for platform switching and non switching applications (Fig.1). Platform switching healing abutments are only suitable for Camlog® implants with catalog numbers starting with a "K". The platform switching healing abutments are marked with the letters "PS". Each abutment is color coded in compliance with the prevailing color coding scheme of the Camlog® system. Silver (no color) represents the 3.3mm platform, yellow 3.8, red 4.3, blue 5.0 and green denotes the 6.0mm platform. Abutments are designed as a mono block, incorporating the abutment body and the screw in to a single entity. A 0.050”- 1.25mm hex driver is utilized to hand tighten the abutments.
Fig. 2
Cylindrical healing abutments (Fig.2, top row) are machined with the same diameter as the corresponding implant and do not flare. 3.3mm platform cylindrical healing abutments are available in two heights of 2 and 4mm while all other platform diameters are offered in three heights of 2, 4 and 6mm.
Cylindrical healing abutments for platform switching (Fig.2, bottom row) are machined 0.5mm smaller than the implant platform diameter and without flare. 3.8, 4.3, 5.0 and 6.0mm implant platform abutments are available in three heights of 2, 4 and 6mm. No platform switching abutments are offered for 3.3mm platform implants. Platform switching healing abutments are marked with the letters "PS" on the abutment and may only be used for SCREW-LINE™ implants with a implant catalog number starting with a "K".
Fig. 3
Wide body healing abutments (Fig.3, top row) are designed to flare 1mm wider than the platform diameter of the implant. 3.3mm platform wide body healing abutments are available in two heights of 2 and 4mm while all other platform diameters are offered in three heights of 2, 4 and 6mm.
Wide body healing abutments for platform switching (Fig.3, bottom row) are designed to flare 1.5mm wider than the abutment/implant interface diameter of the abutment. 3.8, 4.3, 5.0 and 6.0mm implant platform abutments are available in two heights of 4 and 6mm. No platform switching abutments are offered for 3.3mm platform implants. Platform switching healing abutments are marked with the letters "PS" on the abutment and may only be used for SCREW-LINE™ implants with a implant catalog number starting with a "K".
