| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | Zimmer Screw-Vent® |
| Minimum Order Quantity: | 10pcs |
| Price: | USD1.5~3/pc |
| Packaging Details: | 10pcs/bag |
| Delivery Time: | 3~5 Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Titanium GR5 | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Size: | NP 3.5mm/ RP 4.5mm/ WP 5.7mm |
| Hex: | 1.27mm | Properties: | Implant Materials & Artificial Organs |
| Product Tolerance: | +-0.01mm | ||
| High Light: | Zirconia abutment final screws,TUV CE Dental Implant Titanium Screw,TUV CE Dental Ti Screw |
||

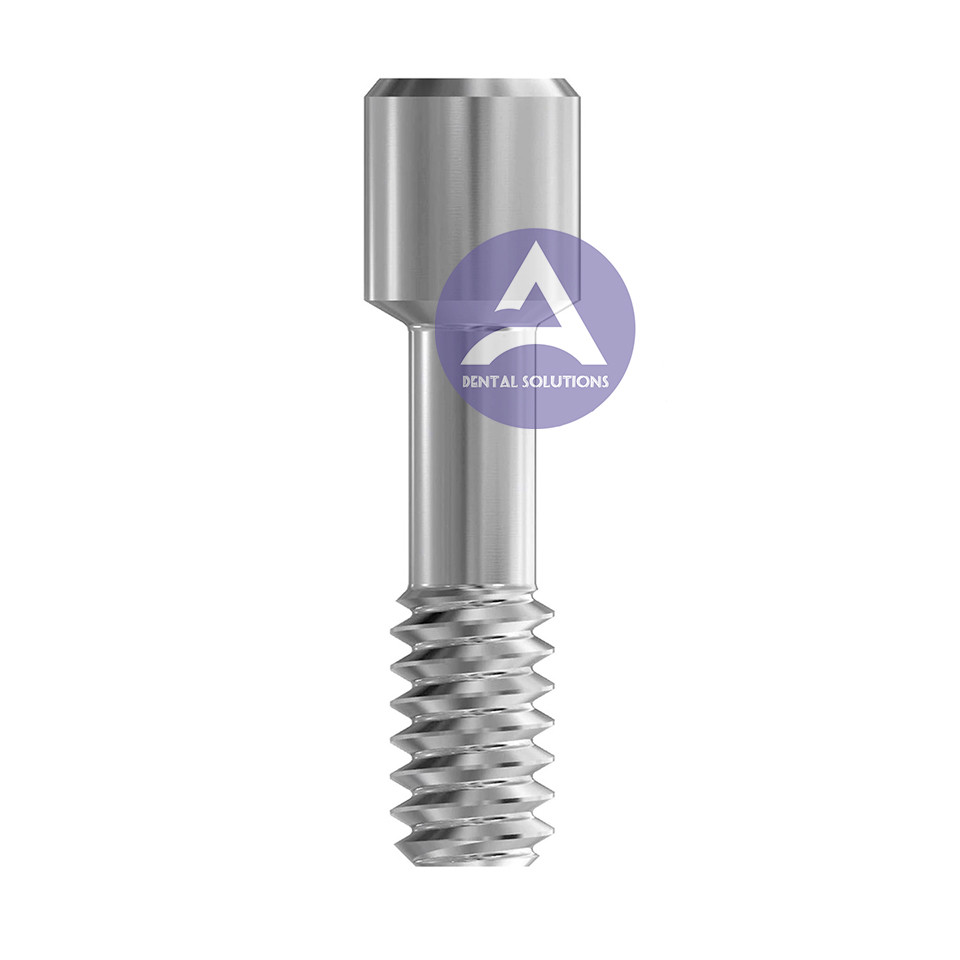

TUV CE Zimmer Screw Vent Dental Implant Titanium Screw
Dental Implant Titanium Screw Compatible With Zimmer Screw-Vent®
Zimmer Screw-Vent®
* NP 3.5mm
* RP 4.5mm
* WP 5.7mm
Compatible driver = Screwdriver Hex 1.27mm
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
- Accuracy, lighting intensity
- Identical to the original screw design
- Tool inspection with 150% of the original torque value
- Hand inspection of the threaded part
Their design ensures a perfect fit with standard accessories as well as with special CAD / CAM systems for structures, bridges and special abutments, bridges, bars, etc.
Approved by CE, ISO 9001, ISO 13485
|
|
SCREW HEX 1,27mm |
A |
B |
C |
|
| 19.012 | NP/RP/WP | UNF 1-72 | 2,30 | 8,20 | |
Points of Zimmer Tapered Screw-Vent® (TSV), Screw-Vent® Screw:
Fig. 1
Titanium contoured Hex-Lock® final abutment screws are included with each abutment purchased. Straight abutments utilize catalog # MHLAS (Fig.1, left) and angled abutment screws are designated catalog # AH20S (Fig. 1, right). Bulk titanium Hex-Lock® abutment screws follow the same catalog number designation as titanium contoured Hex-Lock® final abutment screws. Short Hex-Lock® titanium abutments use Catalog number MHLAS exclusively.
Zirconia abutment final screws utilize catalog number AH20S regardless of platform diameter and straight or angled abutment configuration.
UCLA's utilize final screw catalog number MHLAS regardless of platform diameter and engaging or non engaging configuration.
