Place of Origin: | China |
---|---|
Brand Name: | ANGELS |
Certification: | TUV CE, ISO13485, ISO9001 |
Model Number: | Camlog® |
Minimum Order Quantity: | 10pcs |
Price: | USD1.5~3.5/pc |
Packaging Details: | 10pcs/bag |
Delivery Time: | 3~5 Days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 500,000pcs/month |
Material: | Titanium GR5 | Warranty: | 12 Months |
---|---|---|---|
After-sale Service: | Online Technical Support | Size: | 3.3mm/ 3.8mm/ 4.3mm/ 5.0mm |
Hex: | 1.27mm | Properties: | Implant Materials & Artificial Organs |
Product Tolerance: | +-0.01mm | ||
Highlight: | Camlog Dental Implant Titanium Screw,3.8mm Implant Titanium Screw,5.0mm Dental Titanium Screw |
3.8mm 4.3mm 5.0mm Camlog Dental Implant Titanium Screw

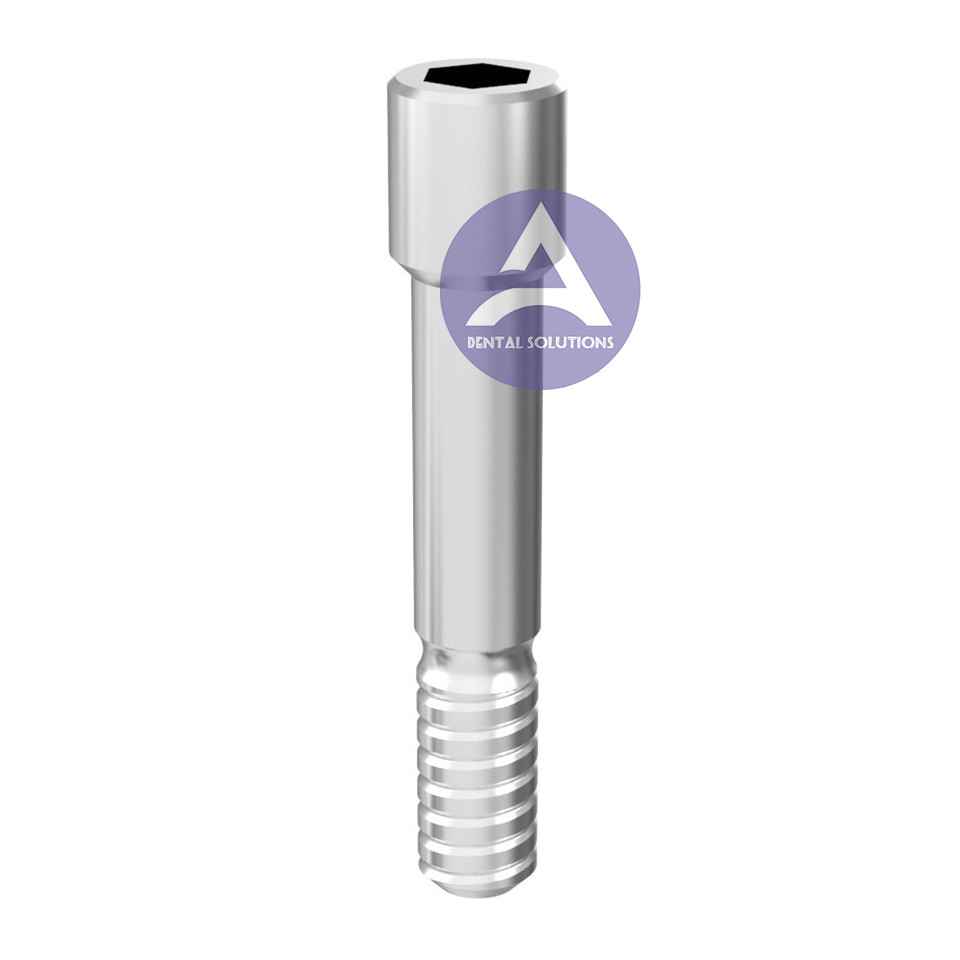

Camlog® Dental Implant Titanium Screw Hex 1.27mm
Camlog®
* 3.3mm
* 3.8mm
* 4.3mm
* 5.0mm
Compatible driver = Screwdriver Hex 1.27mm
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
- Accuracy, lighting intensity
- Identical to the original screw design
- Tool inspection with 150% of the original torque value
- Hand inspection of the threaded part
Their design ensures a perfect fit with standard accessories as well as with special CAD / CAM systems for structures, bridges and special abutments, bridges, bars, etc.
Approved by CE, ISO 9001, ISO 13485
Points of Camlog™ Titanium Screw:
Camlog™ implants and components are distributed through Henry Schein® in the USA.
Fig. 1
Two implant platform diameter dependent final screws are produced for Esthomic®, Logfit®, UCLA, Ceramic, Universal, Titanium CAD/CAM Base and Telescope abutments. The screws are not plated or coated with any material and are silver in color. 3.3, 3.8, and 4.3mm diameter implants utilize catalog number J4005.1601 (Fig.1, left) as a final screw and 5.0, 6.0mm implant diameters utilize catalog number J4005.2001 (Fig.1, right). Both screws are serviced with a 0.050”- 1.27mm hex driver and torqued to 20Ncm.
Fig. 2
Corresponding laboratory screws are anodized with a brown surface coating and should only be used for laboratory procedures. 3.3, 3.8, and 4.3mm diameter implants utilize catalog number J4006.1601 (Fig.2, left) as a final screw and 5.0, 6.0mm implant diameters utilize catalog number J4006.2001 (Fig.2, right). Both screws are serviced with a 0.050”- 1.27mm hex driver.
