| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | Nobel Branemark® |
| Minimum Order Quantity: | 10pcs |
| Price: | USD1.5~3.5/pc |
| Packaging Details: | 10pcs/bag |
| Delivery Time: | 3~5 Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Titanium GR5 | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Size: | NP 3.5mm/ RP 4.0mm/ WP 5.0mm |
| Hex: | Nobel Branemark® | Properties: | Implant Materials & Artificial Organs |
| Product Tolerance: | +-0.01mm | ||
| High Light: | WP 5.0mm Dental Implant Titanium Screw,Nobel Branemark Dental Screw,Nobel Branemark Implant Screw |
||

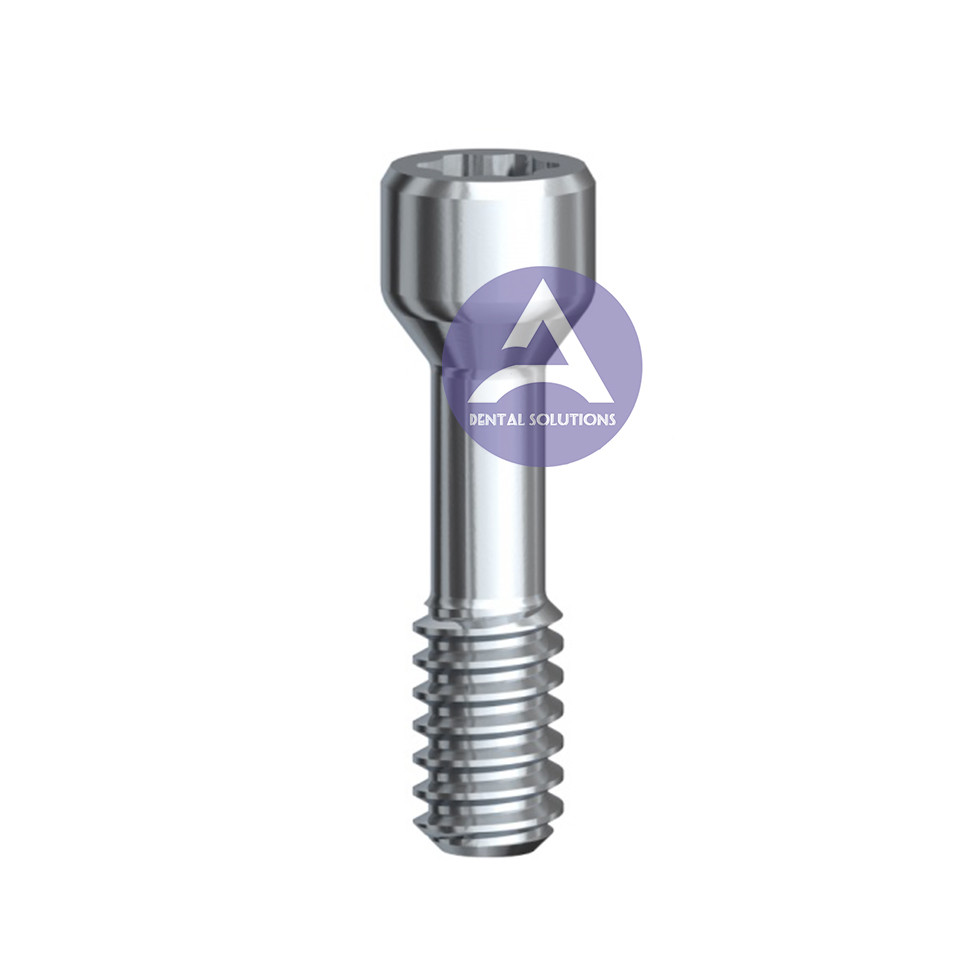

WP 5.0mm Nobel Branemark Dental Implant Titanium Screw
Nobel Branemark® Dental Implant Titanium Screw
Nobel Branemark®
* NP 3.5mm
* RP 4.0mm
* WP 5.0mm
Compatible driver = Screwdriver UG
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
- Accuracy, lighting intensity
- Identical to the original screw design
- Tool inspection with 150% of the original torque value
- Hand inspection of the threaded part
Their design ensures a perfect fit with standard accessories as well as with special CAD / CAM systems for structures, bridges and special abutments, bridges, bars, etc.
Approved by CE, ISO 9001, ISO 13485
|
|
Screw UG |
A |
B |
C |
|
| 19.027 | NP | M 1,60 | 2,25 | 7,35 | |
| 19.227 | NP | M 1,60 | 2,25 | 7,35 | |
| 19.627 | NP | M 1,60 | 2,25 | 7,35 | |
| 19.028 | RP | M 2,00 | 2,40 | 7,90 | |
| 19.228 | RP | M 2,00 | 2,40 | 7,90 | |
| 19.628 | RP | M 2,00 | 2,40 | 7,90 | |
| 19.029 | WP | M 2,50 | 2,90 | 7,10 | |
| 19.229 | WP | M 2,50 | 2,90 | 7,10 | |
| 19.669 | WP | M 2,50 | 2,90 | 7,10 | |
Points of Nobel Biocare Brånemark System™ Screw:
Fig. 3
Final screws (Fig.3) are included with each abutment as a complete kit, although final screws should not be used for the abutments during the restoration fabrication process. Separate laboratory screws (Fig.4) are offered by Nobel and each screw can be serviced with a Unigrip™ driver regardless of laboratory or final screw. Each platform diameter (NP 3.5, RP 4.1, WP 5.0mm) screw has its own
Fig. 4
dimensions and can not be interchanged from platform to platform. Laboratory screws are silver in color to differentiate the screws from final screws while final screws are colored black with the exception of NP platform final screws. NP platform final abutment screws are silver in color. Screws for titanium (Fig.3, top row) and zirconia (Fig.3, bottom row) abutments differ slightly and should not be interchanged
