| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | BioHorizons® |
| Minimum Order Quantity: | 10pcs |
| Price: | USD12~18/pcs (included screw, 14mm) |
| Packaging Details: | 1pcs/bag |
| Delivery Time: | 3~5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Ti 6AI-4V ELI (Grade 5) | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Size: | 10mm, 14mm |
| Compatible: | 3.0mm/ NP 3.5mm/ RP 4.5mm/ WP 5.7mm | Connection: | Engaging |
| Properties: | Implant Materials & Artificial Organs | Product Tolerance: | +-0.01mm |
| High Light: | BioHorizons Pre Milled Abutment,BioHorizons Pre Mill Abutment,BioHorizons Pre Milled Blank |
||

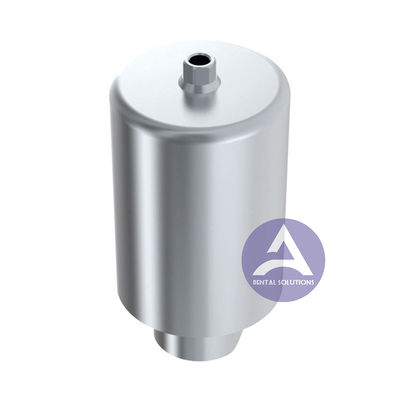

BioHorizons® Dental Implant Internal Premill Blank Abutment 14mm Engaging
BioHorizons®
* 3.0mm
* NP 3.5mm
* RP 4.5mm
* WP 5.7mm
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
* Simply efficiency
* Precision machined up to ± 5µm
* Benefit from a faster and controlled turnaround time
* Different diameter available of 10mm, 14mm
Pre-milled Abutment Blanks, you can now produce titanium customised abutments with your milling equipment.
Boost your efficiency by using your milling machines and benefit from all major implant connections.
Approved by CE, ISO 9001, ISO 13485
* We also can provide another 3 type of premill as above picture shown. Welcome to further inquire. Thanks.
Points of Biohorizons Tapered internal Dental Implant:
Fig. 5
Tapered internal hex, titanium grad 5 implants are offered with a resorbable blast textured (RBT) surface and Laser-Lok® micron sized channels at the implant neck. A machined collar of 0.3mm separates the platform from the textured body area. The tapered body geometry and a reverse buttress tread pattern are signature features of this implant design. The implant body is machined in three diameters (Fig.5) of 3.8mm, 4.6mm and 5.8mm in five lengths (Fig.6) of 7mm, 9mm, 10.5mm, 12mm and 15mm.
Fig.6
Corresponding implant abutment interface platform diameters are available in 3.5mm, 4.5mm and 5.7mm. Two packaging options are available from BioHorizons® for tapered internal implants. One option is packaged with a included cover screw and the implant already mounted on a 3 inOne abutment which serves as the implant mount for delivery, indirect (closed tray) impression coping and final abutment. The second option includes only the cover screw without 3 inOne fixture mount. All components are color coded according to platform diameter (3.5mm, yellow), (4.5mm, green) and (5.7mm, blue).
