Place of Origin: | China |
---|---|
Brand Name: | ANGELS |
Certification: | TUV CE, ISO13485, ISO9001 |
Model Number: | Camlog® |
Minimum Order Quantity: | 10pcs |
Price: | USD8~12/pcs (included screw, 10mm) |
Packaging Details: | 1pcs/bag |
Delivery Time: | 3~5 days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 500,000pcs/month |
Material: | Ti 6AI-4V ELI (Grade 5) | Warranty: | 12 Months |
---|---|---|---|
After-sale Service: | Online Technical Support | Size: | 10mm, 14mm |
Compatible: | 3.3mm/ 3.8mm/ 4.3mm/ 5.0mm | Connection: | Engaging |
Properties: | Implant Materials & Artificial Organs | Product Tolerance: | +-0.01mm |
Highlight: | Titanium Pre Milled Blank,Internal Pre Milled Blank,Implant Pre Milled Blank |

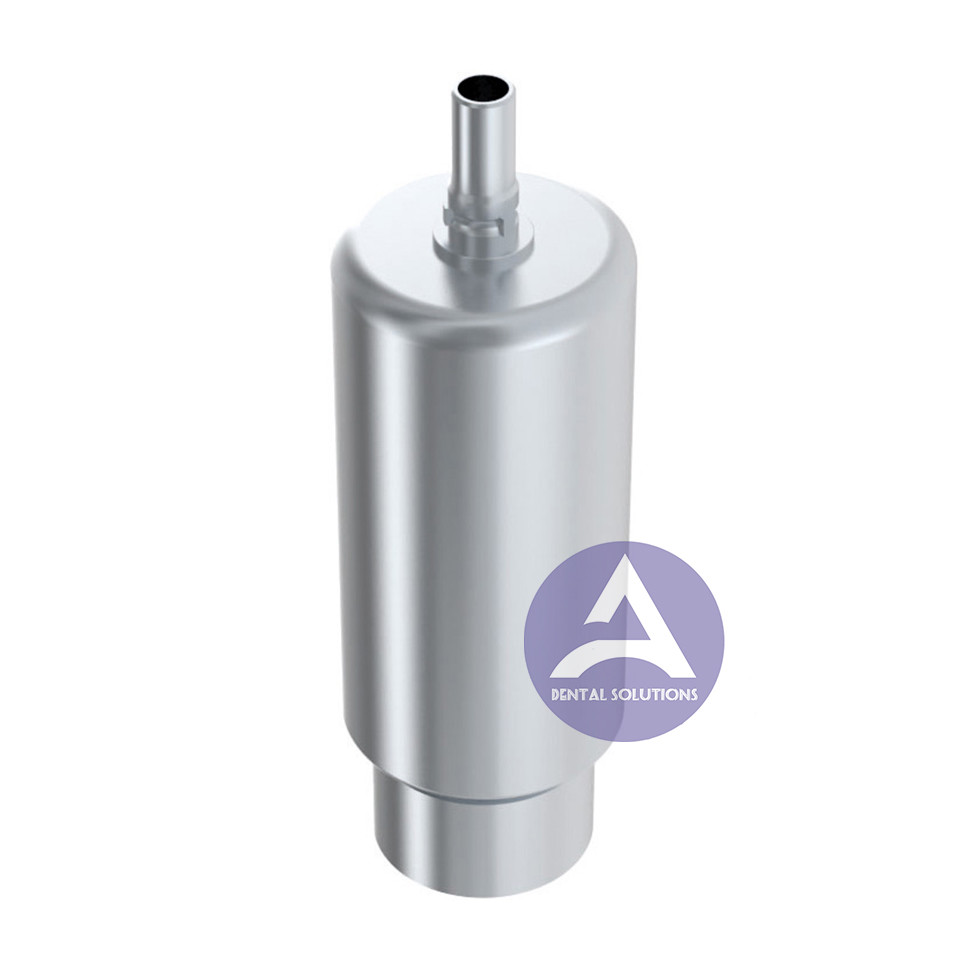

Camlog® Dental Implant Internal Titanium Premill Blank Abutment 10mm Engaging
Camlog®
* 3.3mm/ 3.8mm/ 4.3mm/ 5.0mm
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
* Simply efficiency
* Precision machined up to ± 5µm
* Benefit from a faster and controlled turnaround time
* Different diameter available of 10mm, 14mm
Pre-milled Abutment Blanks, you can now produce titanium customised abutments with your milling equipment.
Boost your efficiency by using your milling machines and benefit from all major implant connections.
Approved by CE, ISO 9001, ISO 13485
* We also can provide another 3 type of premill as above picture shown. Welcome to further inquire. Thanks.
Points of Camlog™ Dental Implant:
Fig. 1
Camlog™ implants are made of grade 4 titanium with a internal indexing feature (Tube-in-Tube™). The indexing feature (Fig.1) consists of three spurs (cams) interlocking with corresponding receptacles inside the implant. This interlocking spur configuration has been changed once since the inception of the Camlog™ system. The newly configured implant/abutment interface denoted through "K" article numbers is compatible with the older "J" article number prosthetic componets but old "J" article number prosthetic components are not compatible with the new "K" article number implants. Camlog™ implants are distributed in the USA through Henry Schein®.
Fig. 2
Screw-Line™ implants are machined with a slightly tapered body geometry, outside thread pattern and a Promote® surface treatment. The Promote® surface is achieved through particle blasting and followed by acid etching. Implants are available with a 0.4mm (Fig.2, left) and a 1.4mm (Fig.2, right) machined collar. A progressively deeper cutting surface extends about two thirds of the implant from the apical toward the implant/abutment interface with the more aggressive portion at the apical of the implant.
