| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | Nobel Biocare Active® |
| Minimum Order Quantity: | 1PC |
| Price: | USD5~8 |
| Packaging Details: | 1pcs/bag |
| Delivery Time: | 3-5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Stainless Steel 303F / GR5 | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Compatible: | NP 3.5mm/ RP 4.3/5.0mm |
| Properties: | Implant Materials & Artificial Organs | Product Tolerance: | +-0.01mm |
| Highlight: | 3.5mm Dental Implant Analogue,5.0mm Dental Implant Analogue,4.3mm Dental Implant Analogue |
||

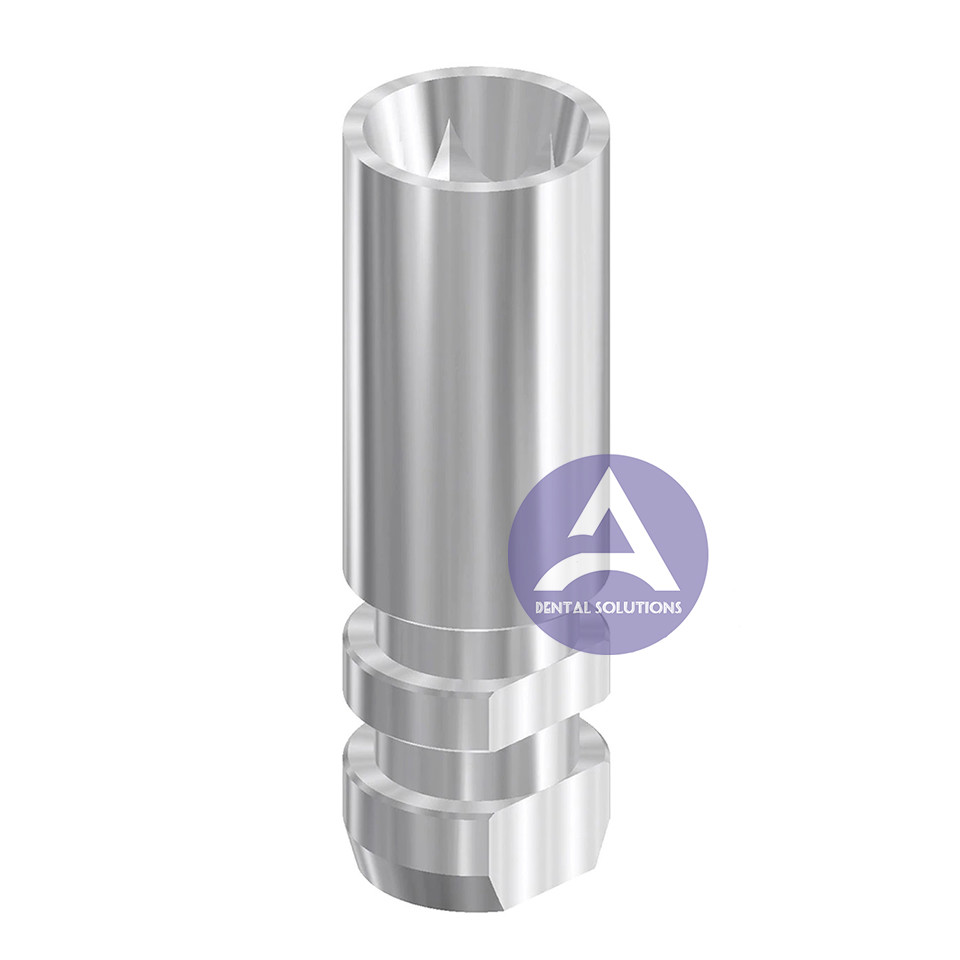

Nobel Biocare Active® Analog Compatible with NP 3.5mm/ RP 4.3/5.0mm
Description:
Transfer of clinical situation – used during fabrication of the laboratory prosthetics to replicate the shape and position of the implant platform
Material:
Stainless Steel 303F / Titanium GR5
Feature:
* Reproducibility
* Precision machined up to ± 5µm
* Position indicator & Level stopper for 3D print & Stone model
* Anti-rotate design
Head that reproduces the implant system joint.
Position indicator and level stopper support precise positioning of removable gingiva mask.
Gentle retaining area to easily position the soft gum in the working model.
Effective circuit and self-locking cross retainers that, inside the plaster, provide extraordinary embedding even in cases of abutment drilling on model.
Its discrete size means that analogues can be easily fitted, despite the implants being close together or not parallel.
Approved by CE, ISO 9001, ISO 13485
|
|
ANALOGUE |
A |
B |
|
| 14.041 | NP | 3,50 | Hex.2,25 | |
| 14.042 | RP | 3,50 | Hex.2,25 | |
Points of NobelActive™ Analog:
Fig. 1
(fixture level, internal hex)
Two fixture level analogs are available for this product group. NP (3.5mm, catalog # 34243, Fig. 1, left) analogs are color coded through a fuchsia colored anodization at the very edge of the abutment/analog interface. RP and WP implants share the same analog because both diameter implants implant/abutment interface is machined to the same exact dimensions. Therefore only one analog is available for both diameters. RP/WP (4.3, 4.9mm, catalog # 34244, Fig.1, right) analogs are not color coded themselves, only the packaging for the analogs provides color (yellow/blue) coded identification.
