| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | Implant Direct Legacy® |
| Minimum Order Quantity: | 1PC |
| Price: | USD5~8 |
| Packaging Details: | 1pcs/bag |
| Delivery Time: | 3-5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Stainless Steel 303F / GR5 | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Compatible: | 3.0mm/ NP(3.5)/ RP(4.5)/ WP(5.7) |
| Properties: | Implant Materials & Artificial Organs | Product Tolerance: | +-0.01mm |
| High Light: | SS 303F Dental Analog,SS 303F Implant Dental Analog,Titanium GR5 Dental Analog |
||

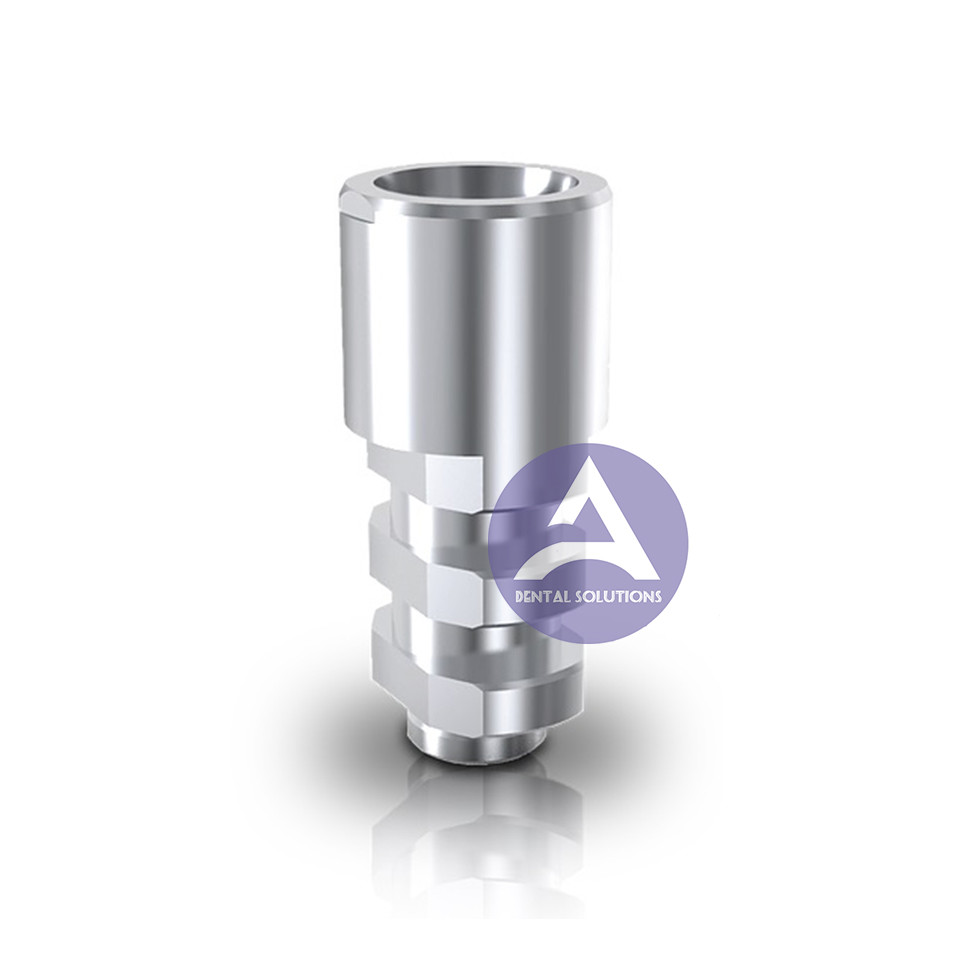

Stainless Steel 303F Implant Direct Legacy Dental Analog
Implant Direct Legacy® Internal Analog Compatible with
3.0mm/ NP(3.5)/ RP(4.5)/ WP(5.7)
Material:
Stainless Steel 303F / Titanium GR5
Feature:
* Reproducibility
* Precision machined up to ± 5µm
* Position indicator & Level stopper for 3D print & Stone model
* Anti-rotate design
Head that reproduces the implant system joint.
Position indicator and level stopper support precise positioning of removable gingiva mask.
Gentle retaining area to easily position the soft gum in the working model.
Effective circuit and self-locking cross retainers that, inside the plaster, provide extraordinary embedding even in cases of abutment drilling on model.
Its discrete size means that analogues can be easily fitted, despite the implants being close together or not parallel.
Approved by CE, ISO 9001, ISO 13485
Points of Implant Direct Legacy™ (I, II, III) Analogue:
Fig. 1
Four color coded fixture level implant analogs (Fig.1) are produced for the Legacy™ implant product line. The analogs are color coded for easy implant/abutment platform identification blue, green, fuchsia and yellow. Blue indicates a 3.0mm platform, green 3.5mm, fuchsia 4.5mm and yellow 5.7mm.
Fig. 2
Abutment level analogs (Fig.2) for already installed straight abutments do not follow the same color scheme as fixture level analogs but match the color of the plastic impression coping. Four abutment level analogs for already installed straight abutments are platform dependent. Light blue corresponds to the 3.0mm platform while fuchsia coordinates with the 3.7 platform and yellow correlates to the 4.5 platform. Dark blue analogs synchronize with the 5.7mm platform.
