| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | Biomet 3i Certain® |
| Minimum Order Quantity: | 1PC |
| Price: | USD5~8 |
| Packaging Details: | 1pcs/bag |
| Delivery Time: | 3-5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Stainless Steel 303F / GR5 | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Compatible: | NP 3.4mm/ RP 4.1mm/ WP 5.0mm |
| Properties: | Implant Materials & Artificial Organs | Product Tolerance: | +-0.01mm |
| Highlight: | Stainless Steel 303F Dental Implant Analogue,SS 303F Dental Implant Analogue,SS Dental Implant Analogue |
||

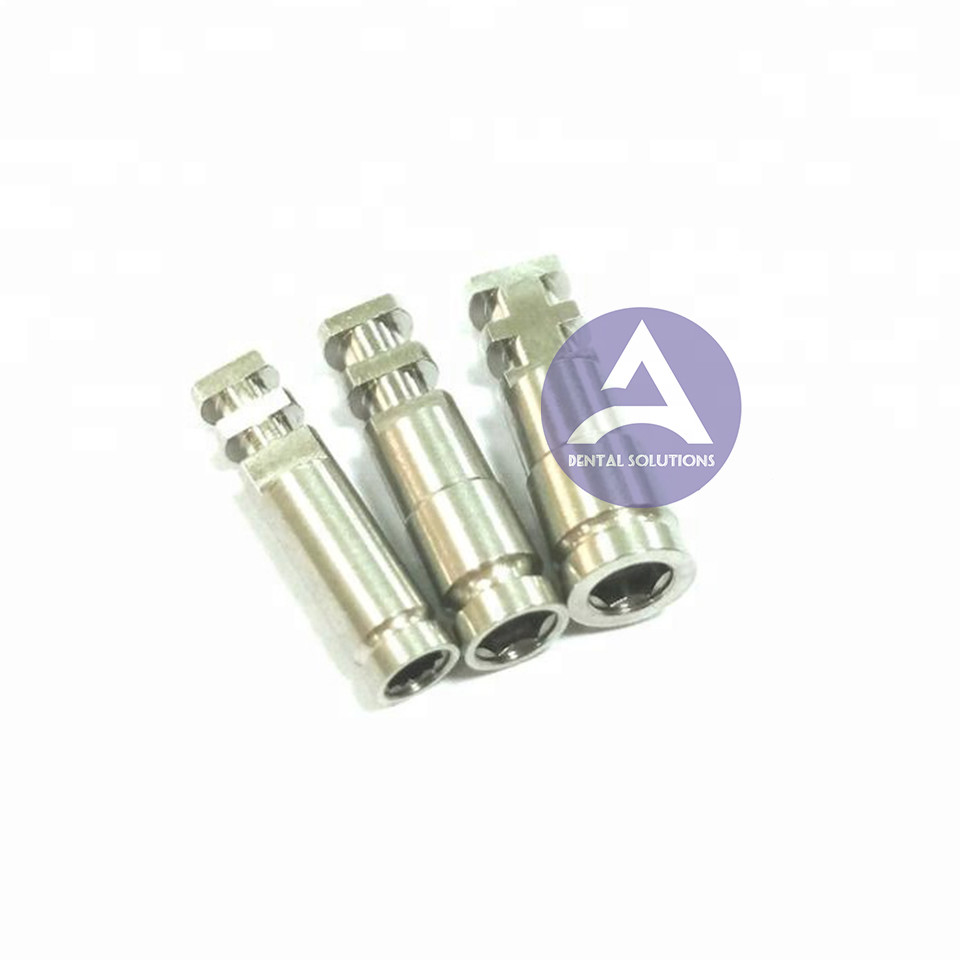

Biomet 3i Certain® Analog Compatible with
NP 3.4mm/ RP 4.1mm/ WP 5.0mm
Material:
Stainless Steel 303F / Titanium GR5
Feature:
* Reproducibility
* Precision machined up to ± 5µm
* Position indicator & Level stopper for 3D print & Stone model
* Anti-rotate design
Head that reproduces the implant system joint.
Position indicator and level stopper support precise positioning of removable gingiva mask.
Gentle retaining area to easily position the soft gum in the working model.
Effective circuit and self-locking cross retainers that, inside the plaster, provide extraordinary embedding even in cases of abutment drilling on model.
Its discrete size means that analogues can be easily fitted, despite the implants being close together or not parallel.
Approved by CE, ISO 9001, ISO 13485
|
|
ANALOGUE |
A |
B |
|
| 14.014 | NP | 3,45 | Hex.2,15 | |
| 14.015 | RP | 4,10 | Hex.2,70 | |
| 14.016 | WP | 5,00 | Hex.2,70 | |
Points of Biomet 3i Certain® internal hex Analogue:
Fig. 2
Fixture level analogs (Fig.2) for Biomet 3i™ internal hex implants are color coded purple (3.4mm catalog # IMMILA), blue (4.1mm catalog # IILA20), yellow (5.0mm catalog # IILAW5) and green (6.0mm catalog # IILAW6). The internal hex indexing feature, regardless of the analog diameter is machined to the same dimension with the exception of the 3.4mm platform analog. This feature would leave the option to mount a 4.1mm analog to a 6.0mm impression coping (transfer) and still be able to use a correct 6.0mm abutment on the model for example. 4.1, 5.0 and 6.0mm analogs are machined with a hex at the internal coronal portion (primary indexing feature) and a double hex (secondary indexing feature) further inside the analog allowing twelve positions for stock angled abutments. 3.4mm platform analogs are machined with a double hex (duodegon) and will allow 12 different seating positions of straight and angled abutments.
