| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | Nobel Biocare Replace® |
| Minimum Order Quantity: | 10pcs |
| Price: | USD15-20/pc, included screw |
| Packaging Details: | 1pcs/bag |
| Delivery Time: | 3~5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Ti 6AI-4V ELI (Grade 5) | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Degree: | 15°/25°/Custom Degree |
| Compatible: | NP 3.5mm/ RP 4.3mm/ WP 5.5mm | Properties: | Implant Materials & Artificial Organs |
| Product Tolerance: | +-0.01mm | ||
| High Light: | 15 Degree Angled Implant Abutment,25 Degree Angled Implant Abutment,15 Degree Angled Abutment |
||

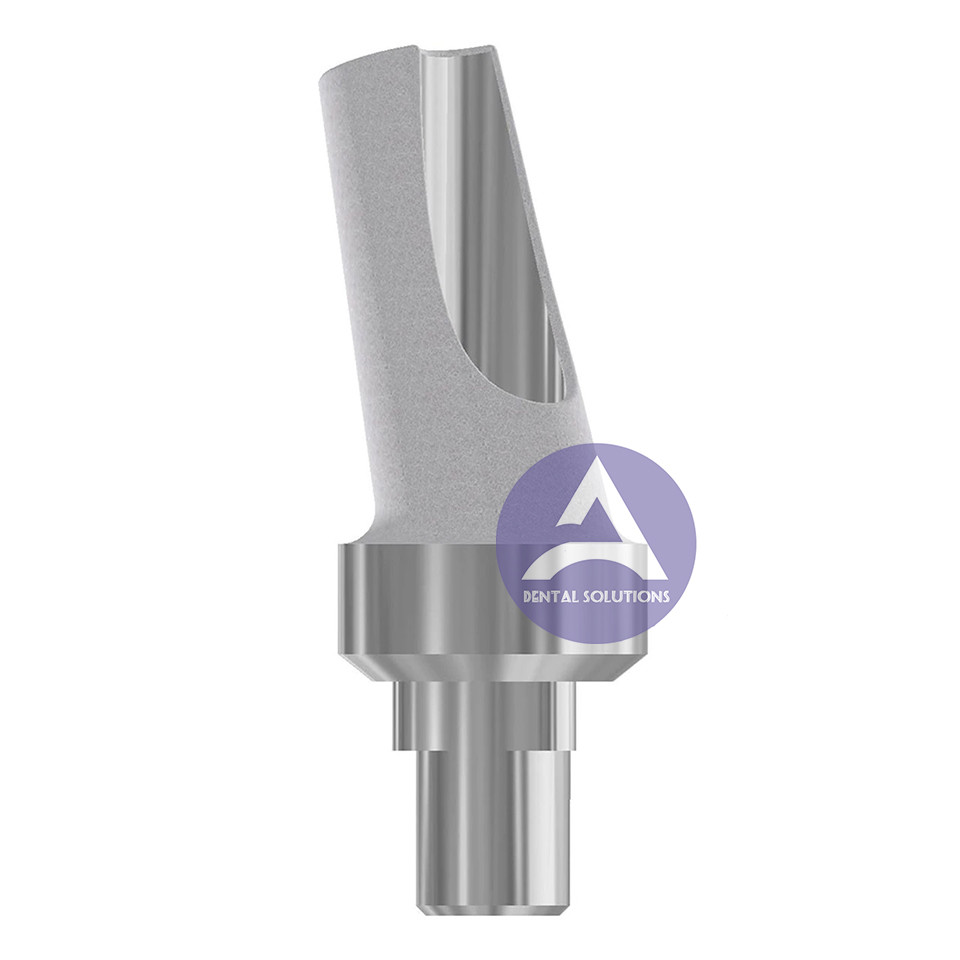

Nobel Biocare Replace® Titanium Angled Abutment
NP 3.5mm/ RP 4.3mm/ WP 5.5mm -- 15°/25° Degree
Desciption:
This angled abutment comes with a screw that takes the Nobel® Unigrip/Star driver
This abutment is prep-able with a 1mm/2mm/3mm collar height. (Or according your customize request)
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
* Titanium interface abutment
* 1pc Screw Included
* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility
* Can production Custom interface
Approved by CE, ISO 9001, ISO 13485
|
|
ABUTMENT |
A |
B |
C |
D |
|
| 13.004 | NP | 3,50 | 3 lobe | 2,00 | 4,50 | |
| 13.005 | RP | 4,30 | 3 lobe | 2,00 | 4,90 | |
| 13.006 | WP | 5,00 | 3 lobe | 2,00 | 5,90 | |
Points of NobelReplace™ Angled Abutment:
Fig. 11
Titanium abutments are designed with a sloping collar as a straight (Fig.11, top row) and angled (Fig.11, bottom row, 15°) version. The angle and lowest point of the sloping collar are machined in relation to one of the lobes of the tri lobe indexing feature. Color coding follows the prevailing color coding system (NP fuchsia 3.5, RP yellow 4.3, WP blue 5.0, green 6.0) for platform diameter identification. Each abutment is packaged with a final screw to make a complete kit. NP and RP straight and angled abutments are available in two collar heights of 1 and 3mm. WP straight and angled abutments are fabricated in two collar heights of 0.5 and 3mm. Both 6.0 straight and angled abutments are offered in one collar height of 0.5mm.
