Place of Origin: | China |
---|---|
Brand Name: | ANGELS |
Certification: | TUV CE, ISO13485, ISO9001 |
Model Number: | Astra Tech EV® |
Minimum Order Quantity: | 10Pcs |
Price: | USD8~12/pc, included screw |
Packaging Details: | 1pcs/bag |
Delivery Time: | 3~5 days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 500,000pcs/month |
Material: | Castable Plastic | Warranty: | 12 Months |
---|---|---|---|
After-sale Service: | Online Technical Support | Connection: | Engaging & Non-Engaging |
Size: | 3.6mm(Purple)/ 4.2mm(Yellow)/ 4.8mm (Blue) | Properties: | Implant Materials & Artificial Organs |
Product Tolerance: | +-0.01mm | ||
Highlight: | Plastic UCLA Implant Abutment,4.2mm Yellow UCLA Abutment,Astra Tech EV UCLA Abutment |
4.2mm Yellow Astra Tech EV Plastic UCLA Implant Abutment

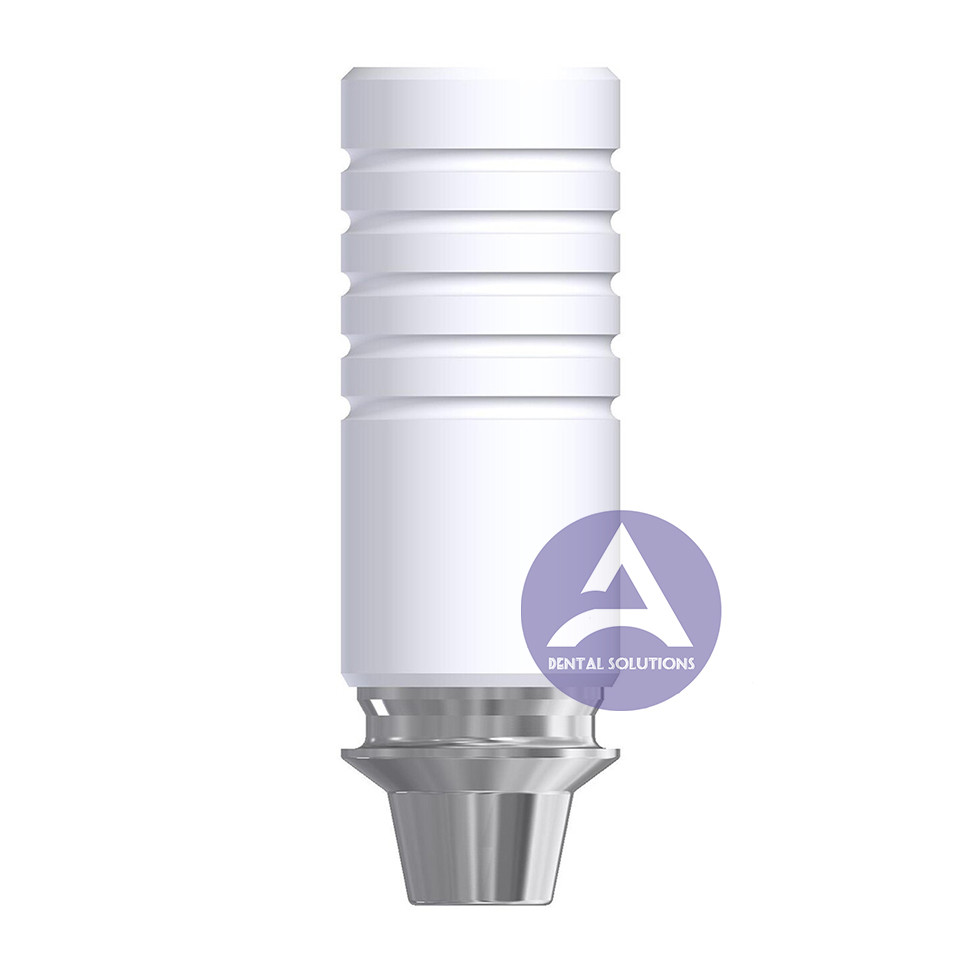

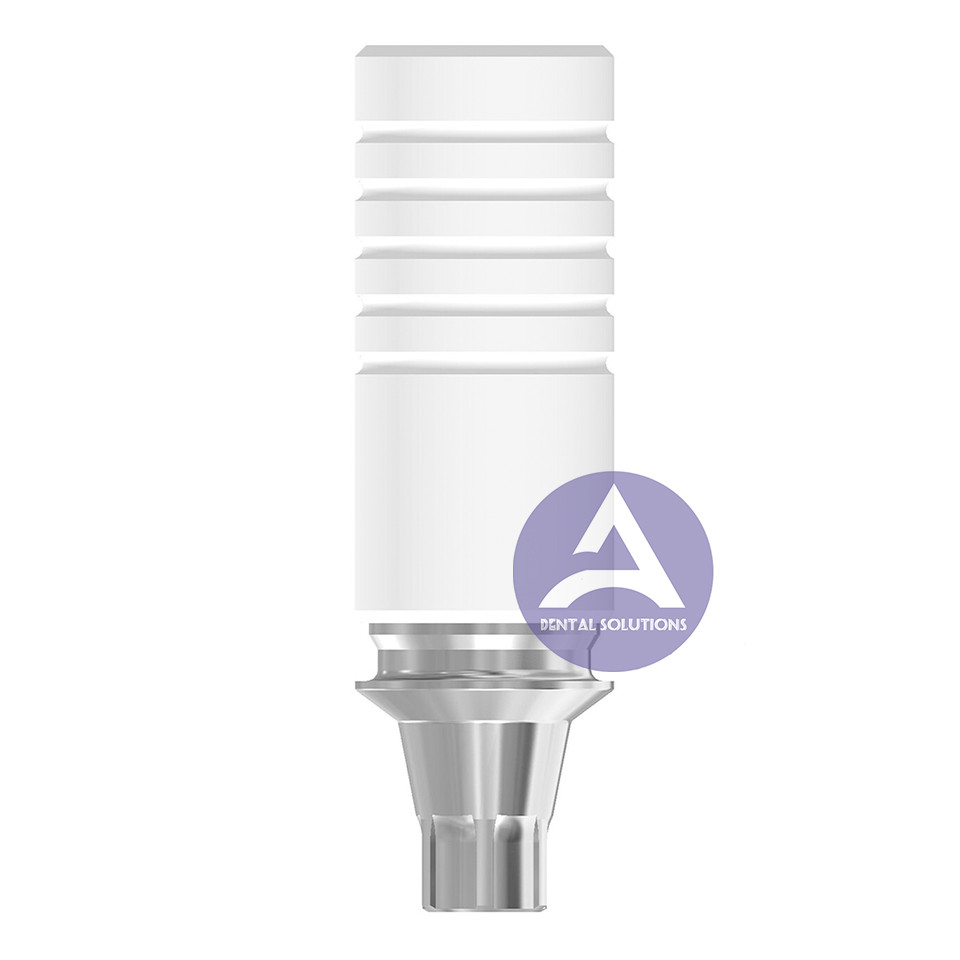

Astra Tech EV® UCLA CoCr Base Castable Abutment
3.6mm(Purple)/ 4.2mm(Yellow)/ 4.8mm (Blue) (Engaging & Non-Engaging)
Material:
CoCr base and castable plastic chimney
Made of CoCr base and castable plastic chimney material for the stable retention of modelling materials
This base is available in two types of platforms: engaging and non-engaging.
Approved by CE, ISO 9001, ISO 13485
Base CrCo | A | B | C | D | |||
30.059 | EV 3.6 | Non-engaging | 2,90 | Circular | 1,00 | 4,50 | |
31.059 | EV 3.6 | Engaging | 2,90 | Conic Evo | 1,00 | 4,50 | |
30.060 | EV 4.2 | Non-engaging | 3,50 | Circular | 1,00 | 4,50 | |
31.060 | EV 4.2 | Engaging | 3,50 | Conic Evo | 1,00 | 4,50 | |
30.061 | EV 4.8 | Non-engaging | 4,10 | Circular | 1,00 | 4,90 | |
31.061 | EV 4.8 | Engaging | 4,1 | Circular | 1,00 | 4,90 | |
30.058 | EV Uniabutment | Non-engaging | 3,41 | Cone 66º | 0,85 | 4,40 |
Points of Astra Tech EV UCLA Cocr base:
■ Single, partial and fully edentulous situations
■ All positions in the mouth
■ Screw-retained restorations, limited to single-tooth only
Note: In cases where high biteforces are expected it is recommended to select a titanium abutment if possible. CastDesign EV should primarily be regarded as an abutment used when no titanium option is available.
The CastDesign EV is a non-oxidizing high precious abutment modified at the laboratory. CastDesign EV is for fabrication of a customized abutment for cement-retained restorations, using regular wax-up and cast-to techniques.
■ Can compensate for angulations up to 30°
■ Abutment Screw EV is color-coded
Note: For screw-retained restoration, CastDesign EV shall be used for single-tooth applications only. Use of this product outside the listed indications will compromise the function of the Conical Seal Design and void the Dentsply Sirona implant warranty.
