| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | ITI Straumann Bone Level® |
| Minimum Order Quantity: | 10pcs |
| Price: | USD6-9 |
| Packaging Details: | 1pcs/bag |
| Delivery Time: | 3~5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Ti 6AI-4V ELI (Grade 5) | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Compatible: | NC 3.3mm/ RC 4.1mm |
| Gingival: | 3mm/ 4mm/ 5mm/ 6mm/ Customized | Properties: | Implant Materials & Artificial Organs |
| Product Tolerance: | +-0.01mm | ||
| High Light: | Straumann Level Healing Caps,NC 3.3mm Healing Caps,RC 4.1mm Healing Caps |
||

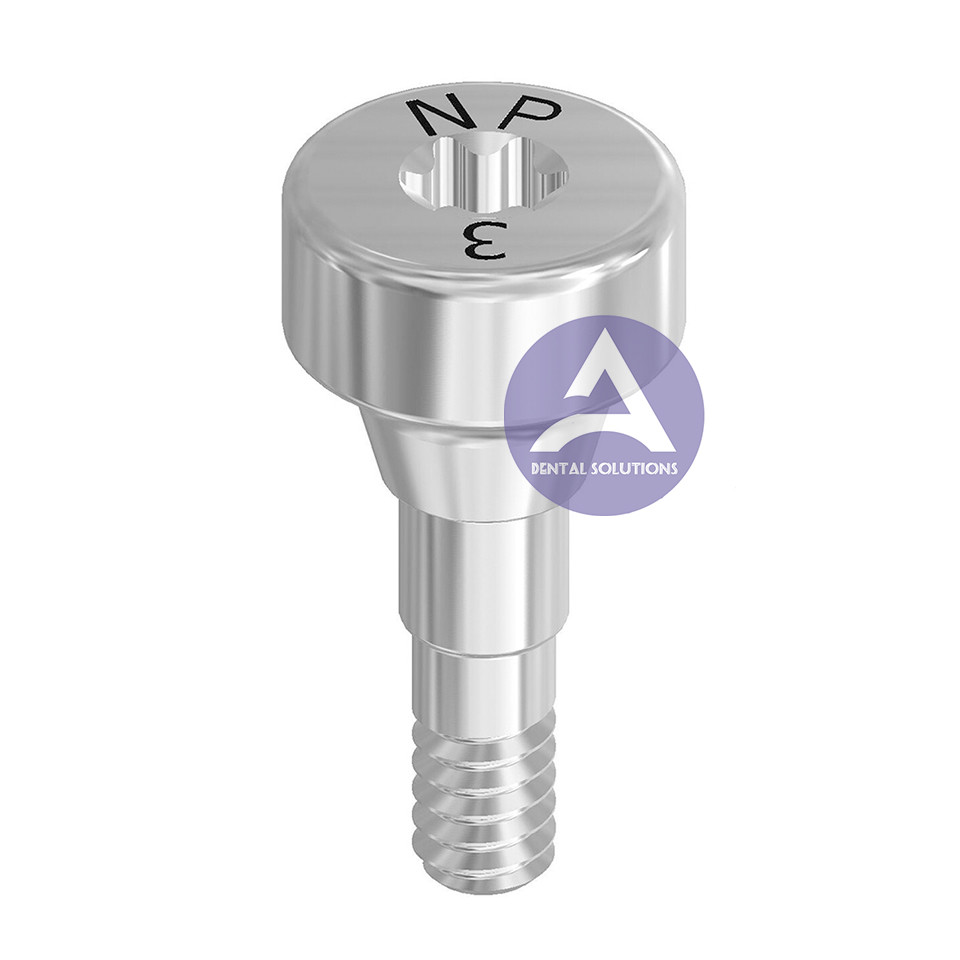

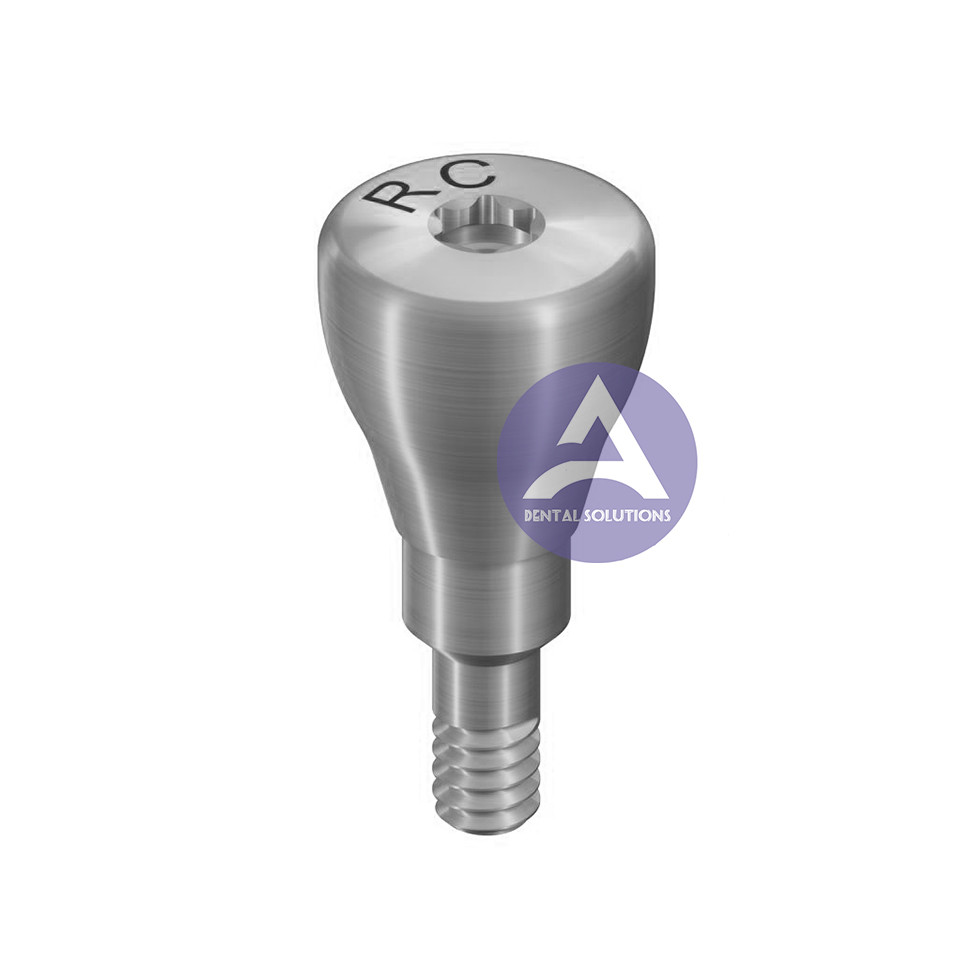

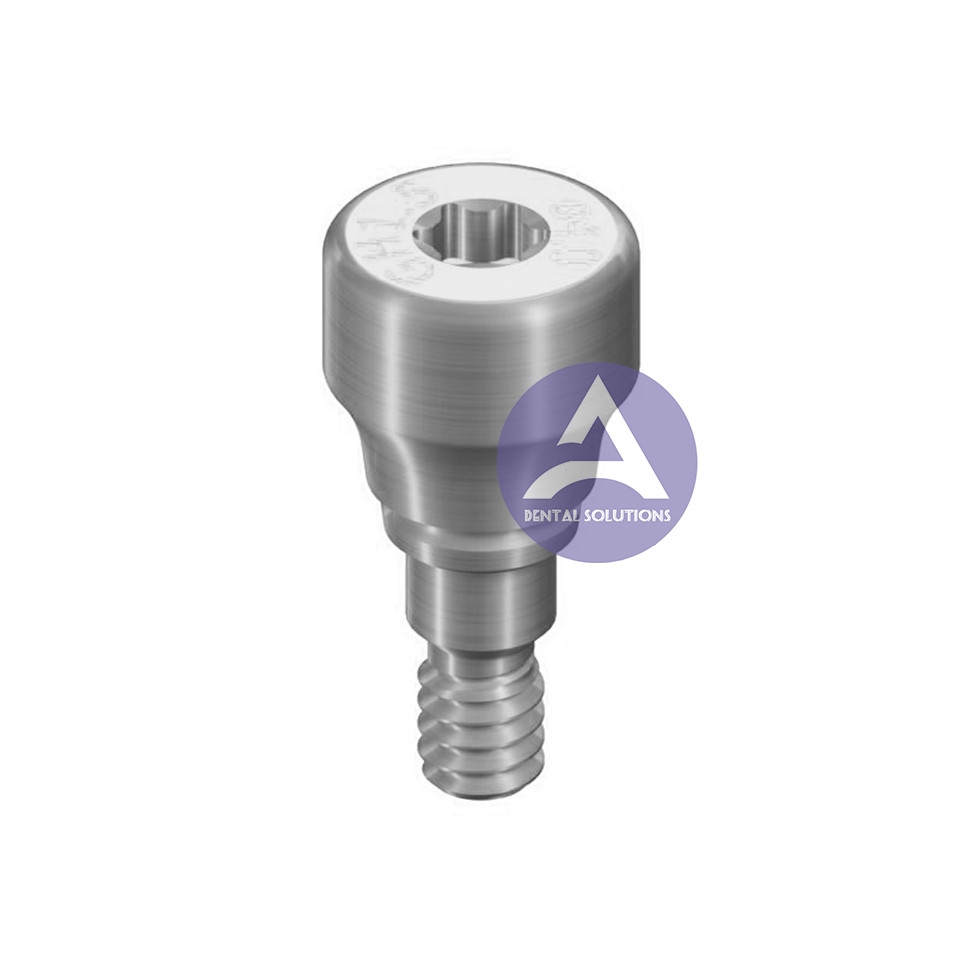

NC 3.3mm RC 4.1mm ITI Straumann Bone Level Healing Caps
Straumann RC Healing Abutment ITI Implant Titanium Healing Cap Abutment Compatible NC 3.3mm/ RC 4.1mm
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
* Titanium interface abutment
* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility
* Can production Custom Gingival Heights
|
|
HEALING ABUTMENT |
A |
C |
||
| 20.041/3 | NP (NC) | 3mm | 4,50 | 3,00 | |
| 20.041/4 | NP (NC) | 4mm | 4,50 | 4,00 | |
| 20.041/5 | NP (NC) | 5mm | 4,50 | 5,00 | |
| 20.042/3 | RP (RC) | 3mm | 4,90 | 3,00 | |
| 20.042/4 | RP (RC) | 4mm | 4,90 | 4,00 | |
| 20.042/5 | RP (RC) | 5mm | 4,90 | 5,00 | |
Points of ITI Straumann Bone Level Healing Cap:
Fig. 3
Nine different healing abutments are manufactured for narrow connection (NC) implant/abutment platform diameter implants. Two cone shaped emergence profiles of 3.6mm (Fig.3 top row) and 4.8mm (Fig.3 bottom row)in three heights (2, 3.5, 5mm) each. Two bottle neck geometry abutments (Fig.4) in heights of 3.5mm and 5mm. The narrow end of the bottle neck is positioned towards the gingival crest and results in a under dimensioned emergence profile of the soft tissue.
Fig. 4
This feature is intended to aide in the creation of a papilla at the time of final abutment installation. The larger emergence profile of the final abutment will displace the soft tissue in all directions and may necessitate a releasing incision of the tissue at the time of delivery.
One acrylic body healing abutment with a diameter of 5mm to create a custom emergence profile is also part of the healing abutment offering from Straumann®. All NC abutments are color coded yellow in compliance with the platform identification color scheme of bone level implants. The same Torx (SCS) driver may be utilized for all platform diameter components.
Fig. 5
Nine different healing abutments are manufactured for regular connection (RC) implant/abutment platform diameter implants. Two cone shaped emergence profiles of 4.5mm (Fig.5 top row) and 6mm (Fig.5 bottom row) in three heights (2, 4, 6mm) each. Two bottle neck geometry abutments (Fig.6) in heights of 4mm and 6mm. The narrow end of the bottle neck is positioned towards the gingival crest and results in a under dimensioned emergence profile of the soft tissue.
Fig. 6
This feature is intended to aide in the creation of a papilla at the time of final abutment installation. The larger emergence profile of the final abutment will displace the soft tissue in all directions and may necessitate a releasing incision of the tissue at the time of delivery.
One acrylic body healing abutment with a diameter of 7mm to create a custom emergence profile is also part of the healing abutment offering from Straumann®. All RC abutments are color coded purple in compliance with the platform identification color scheme of bone level implants. The same Torx (SCS) driver may be utilized for all platform diameter components.
