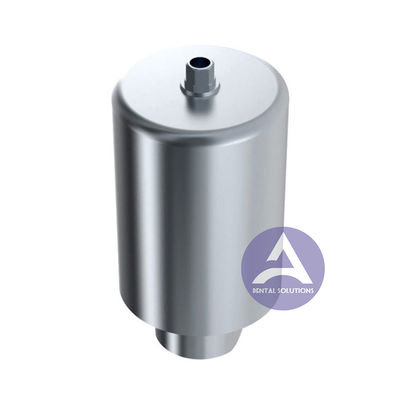

Implant Direct Legacy® Implant Internal Titanium Premill Blank 14mm Engaging Compatible 3.0mm/ NP(3.5)/ RP(4.5)/ WP(5.7)

Basic Information
Place of Origin: China
Brand Name: ANGELS
Certification: TUV CE, ISO13485, ISO9001
Model Number: Implant Direct Legacy®
Minimum Order Quantity: 10pcs
Price: USD8~12/pcs (included screw, 10mm)
Packaging Details: 1pcs/bag
Delivery Time: 3~5 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500,000pcs/month
Detail Information
Material: Ti 6AI-4V ELI (Grade 5) Warranty: 12 Months
After-sale Service: Online Technical Support Size: 10mm, 14mm
Compatible: 3.0mm/ NP(3.5mm)/ RP(4.5mm)/ WP(5.7mm) Connection: Engaging
Properties: Implant Materials & Artificial Organs Product Tolerance: +-0.01mm

Product Description

Implant Direct Legacy® Implant Internal Titanium Premill Blank 14mm Engaging Compatible

3.0mm/ NP(3.5mm)/ RP(4.5mm)/ WP(5.7mm)



Material:
Ti 6AI-4V ELI (Supply from Germany)



Feature:

* Simply efficiency
* Precision machined up to ± 5µm
* Benefit from a faster and controlled turnaround time
* Different diameter available of 10mm, 14mm



Pre-milled Abutment Blanks, you can now produce titanium customised abutments with your milling equipment.
Boost your efficiency by using your milling machines and benefit from all major implant connections.



Approved by CE, ISO 9001, ISO 13485

Implant Direct Legacy® Implant Internal Titanium Premill Blank 14mm Engaging Compatible 3.0mm/ NP(3.5)/ RP(4.5)/ WP(5.7) 0

Implant Direct Legacy® Implant Internal Titanium Premill Blank 14mm Engaging Compatible 3.0mm/ NP(3.5)/ RP(4.5)/ WP(5.7) 1

Implant Direct Legacy® Implant Internal Titanium Premill Blank 14mm Engaging Compatible 3.0mm/ NP(3.5)/ RP(4.5)/ WP(5.7) 2

* We also can provide another 3 type of premill as above picture shown. Welcome to further inquire. Thanks.



Points of Implant Direct Legacy™ (II, III) Dental Implant:



Implant Direct Legacy® Implant Internal Titanium Premill Blank 14mm Engaging Compatible 3.0mm/ NP(3.5)/ RP(4.5)/ WP(5.7) 3

Fig. 1™

Legacy™ implants are available with a soluble blast media (SBM) surface treatment or a hydroxylapatite (HA) plasma sprayed surface coating. The SBM surface is sand blasted with hydroxylapatite particles and acid washed to eliminate any embedded HA particles. Four color coded (3.0 blue, 3.5 green, 4.5 purple, 5.7 yellow) Prosthetic platform diameters are offered depending on the Legacy™ version. 3.0mm platform diameter implants are only available for the Legacy™ III product line. The implant/abutment indexing feature is a internal hexagon of prosthetic platform diameter

Implant Direct Legacy® Implant Internal Titanium Premill Blank 14mm Engaging Compatible 3.0mm/ NP(3.5)/ RP(4.5)/ WP(5.7) 4

Fig. 2™

dependent dimensions. All Legacy™ implants are offered in five lengths of 8, 10, 11.5, 13, and 16mm, packaged with a two component cover screw/extender. The extender attaches to the cover screw, converting the cover screw in to a complete 2mm height healing abutment. All Implant Direct™ implants are made of grade 5 titanium.





Implant Direct Legacy® Implant Internal Titanium Premill Blank 14mm Engaging Compatible 3.0mm/ NP(3.5)/ RP(4.5)/ WP(5.7) 5

Legacy™ II

Legacy™ II implants are machined with a tapered geometry but straight coronal top third. A aggressively deeper thread pattern towards the apical portion of the implant and micro threads at the top third of the implant are a signature feature of Legacy™ II product group. 3.5mm prosthetic platform diameter implants are available in two implant body diameters of 3.7 and 4.2mm. 4.5mm prosthetic platform diameter implants are machined with a 4.7mm body diameter only. 5.7mm prosthetic platform diameter implants are produced in two body diameters of 5.7 and 7mm whereby the 7mm body diameter implant tapers aggressively toward the apical. Each implant is packaged with a pre mounted fixture mount that can be utilized as a impression coping and temporary abutment after modification.







Implant Direct Legacy® Implant Internal Titanium Premill Blank 14mm Engaging Compatible 3.0mm/ NP(3.5)/ RP(4.5)/ WP(5.7) 6

Legacy™ III

Legacy™ III implants are machined with a tapered geometry but straight coronal top third. A aggressively deeper buttress thread pattern towards the apical portion of the implant and micro threads at the top third of the implant are a signature feature of Legacy™ III product group. 3.0 prosthetic platform diameter implants are provided with only one body diameter of 3.2mm. 3.5mm prosthetic platform diameter implants are available in two implant body diameters of 3.7 and 4.2mm. 4.5mm prosthetic platform diameter implants are machined with a 4.7mm and a 5.2mm body diameter. 5.7mm prosthetic platform diameter implants are produced in one body diameter of 5.7mm. Each implant is packaged with a pre mounted fixture mount that can be utilized as a impression coping and temporary abutment after modification.
