| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | Nobel Biocare Branemark® |
| Minimum Order Quantity: | 10pcs |
| Price: | USD8~12/pcs (included screw, 10mm) |
| Packaging Details: | 1pcs/bag |
| Delivery Time: | 3~5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Ti 6AI-4V ELI (Grade 5) | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Size: | 10mm, 14mm |
| Compatible: | NP 3.5mm/ RP 4.0mm/ WP 5.0mm | Connection: | Engaging |
| Properties: | Implant Materials & Artificial Organs | Product Tolerance: | +-0.01mm |
| High Light: | Biocare Branemark Premill Blank,RP 4.0mm Premill Blank,Ti 6AI 4V ELI Premill Blank |
||

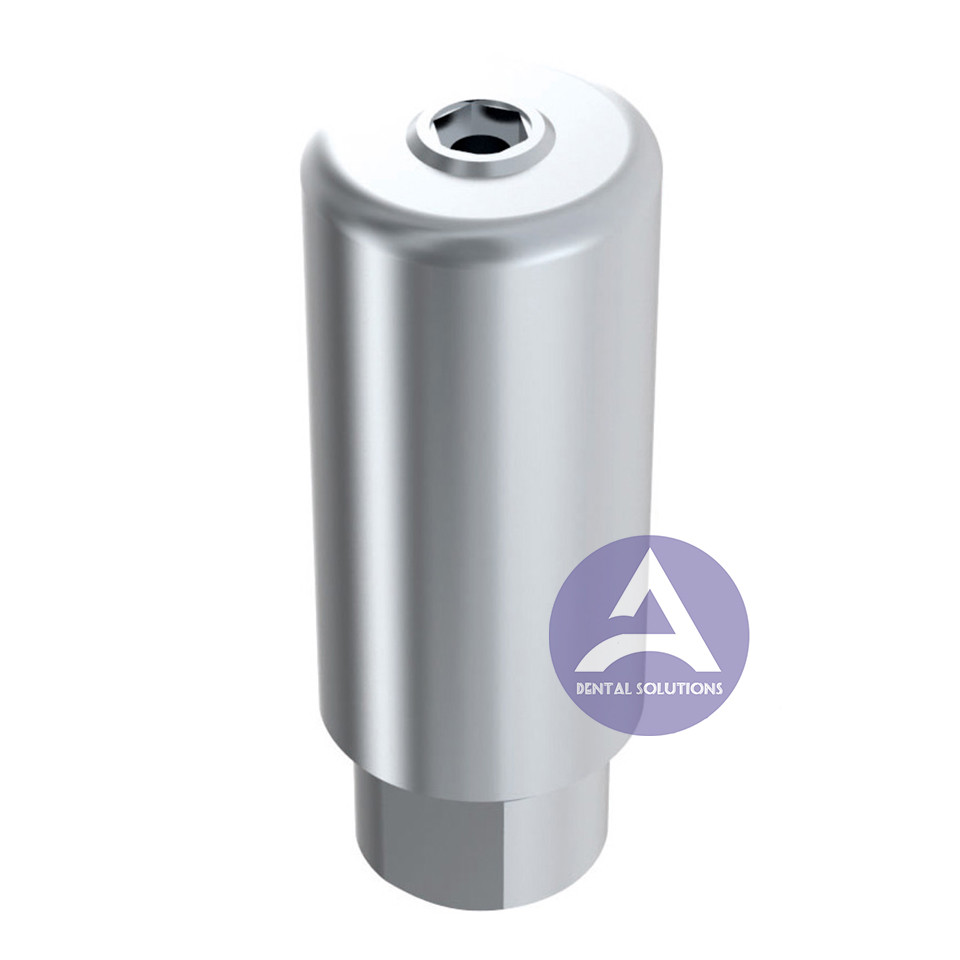

Nobel Biocare Branemark® Implant Internal Titanium Premill Blank 10mm Engaging
NP 3.5mm/ RP 4.0mm/ WP 5.0mm
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
* Simply efficiency
* Precision machined up to ± 5µm
* Benefit from a faster and controlled turnaround time
* Different diameter available of 10mm, 14mm
Pre-milled Abutment Blanks, you can now produce titanium customised abutments with your milling equipment.
Boost your efficiency by using your milling machines and benefit from all major implant connections.
Approved by CE, ISO 9001, ISO 13485
* We also can provide another 3 type of premill as above picture shown. Welcome to further inquire. Thanks.
Points of Nobel Biocare Brånemark System™ Implant:
Fig. 4
Brånemark System™ MK III TiUnite® implants (Fig.4) are offered in one body geometry, parallel walled with a diminishing thread depth toward the apical of the implant. A 0.7mm machined collar separates the implant/abutment interface from the TiUnite® treated surface area of the implant. Cutting flutes incorporated at the apex of the implant (Fig.5) give this implant design self tapping capabilities. 3.5mm platform implants are produced in four (10, 11.5, 13, 15mm) lengths and one implant body diameter of 3.3mm while 4.1 implant/abutment platform diameter implants are produced in two implant body diameters of 3.75 and 4.0mm
Fig. 5
and three additional lengths of 7, 8.5 and 18mm. 5.1mm platform diameter implants are offered in one body diameter of 5mm and seven lengths.(7, 8.5, 10, 11.5, 13, 15 and 18mm) . Although each implant in this product group is actually 0.5mm shorter than advertised and the advertised length does not include the 0.7mm height of the indexing hex at the top of the implant. No 6mm diameter implant is available within this group. Cover screws are included in this product group.
