|Place of Origin:||China|
|Certification:||TUV CE, ISO13485, ISO9001|
|Model Number:||Astra Tech OsseoSpeed®|
|Minimum Order Quantity:||10pcs|
|Price:||USD8~12/pcs (included screw, 10mm)|
|Delivery Time:||3~5 days|
|Payment Terms:||T/T, Western Union, MoneyGram|
|Material:||Ti 6AI-4V ELI (Grade 5)||Warranty:||12 Months|
|After-sale Service:||Online Technical Support||Size:||10mm, 14mm|
|Compatible:||NP(3.0) Yellow/ RP(3.5/4.0) AQUA/ WP(4.5/5.0) LILAC||Connection:||Engaging|
|Properties:||Implant Materials & Artificial Organs||Product Tolerance:||+-0.01mm|
OsseoSpeed Premill Abutment,
Astra Tech Premill Abutment,
Internal Titanium Premill Abutment

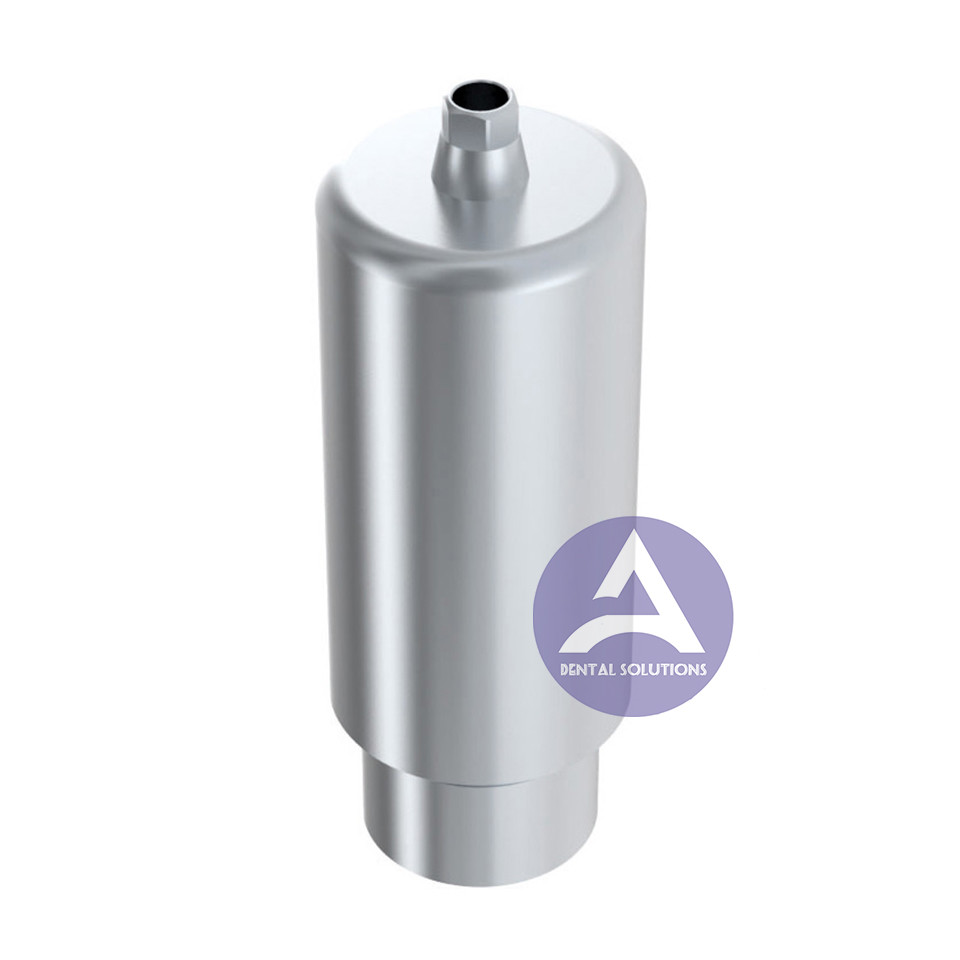

Astra Tech OsseoSpeed® Implant Internal Titanium Premill Blank 10mm Engaging
Yellow(NP 3.0mm) / AQUA(RP 3.5/4.0mm) / LILAC(WP 4.5/5.0mm)
Points of Astra OsseoSpeed™ Dental Implant:
Profile implants are produced with the same grade 4 titanium and surface texture (Fig.4) as standard OsseoSpeed™ implants. The coronal portion of the Profile implant is cut at a 30 ° angle (Fig.5) half way through the diameter of the implant. This feature may allow placement of the implant in to a sloping bony crest without bone grafting or a portion of the implant above or below the bone at the time of implant placement. The implant/abutment interface connection is constructed as a internal, double hex conical connection (Fig.2), allowing 6 different positions for final abutments and machined to the same dimensions regardless of the implant diameter..
TX S Profile implants (Fig.6) are machined with a parallel geometry and a tapered apex. Two outside thread patterns are machined on to the implant body consisting of micro threads at the coronal portion and a regular thread pattern on the main portion of the implant. One implant diameter of 5.0mm, available in lengths of 9, 11, 13, 15 and 17mm comprises the TX S Profile product group.
TX Profile implants (Fig.7) are machined with a parallel main body geometry and a conical crestal portion with a tapered apex. Two outside thread patterns are machined on to the implant body consisting of micro threads at the coronal portion and a regular thread pattern on the main portion of the implant. Two implant diameters of 4.5mm and 5.0mm, available in lengths of 9, 11, 13, 15 and 17mm comprises the TX Profile product group.
