| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | NOBEL BIOCARE® |
| Minimum Order Quantity: | 10pcs |
| Price: | USD1.5~3.5/pc |
| Packaging Details: | 10pcs/bag |
| Delivery Time: | 3~5 Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Titanium GR5 | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Usage: | Implant Bridge/Bar |
| Size: | 4.8/6.0mm | Properties: | Implant Materials & Artificial Organs |
| Product Tolerance: | +-0.01mm | Screwdriver: | N-Torx |
| Highlight: | 6.0mm Dental Implant Abutment Screw,4.8mm Dental Implant Abutment Screw,Nobel Biocare Dental Abutment Screw |
||

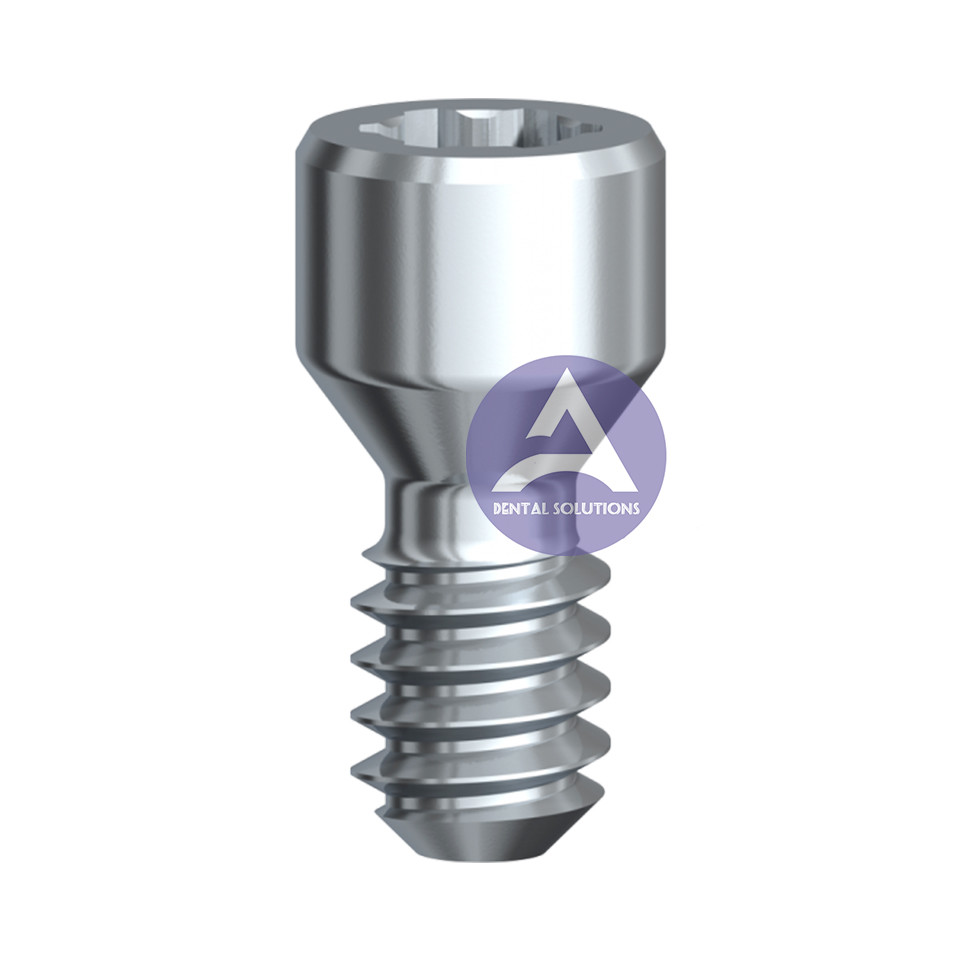

4.8mm 6.0mm Nobel Biocare Dental Implant Abutment Screw
NOBEL BIOCARE® Dental Implant Abutment Titanium Multi Unit Screw Fits
4.8/6.0mm
Compatible driver = N-Torx
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
- Accuracy, lighting intensity
- Identical to the original screw design
- Tool inspection with 150% of the original torque value
- Hand inspection of the threaded part
Their design ensures a perfect fit with standard accessories as well as with special CAD / CAM systems for structures, bridges and special abutments, bridges, bars, etc.
Approved by CE, ISO 9001, ISO 13485
Nobel Biocare™ SCREWS
NobelActive™
Fig. 1
Nobel Biocare™ includes final screws (Fig.1) with each abutment as a complete kit, although final screw should not be used for the abutments during the restoration fabrication process. Separate laboratory screws (Fig.2) are offered by Nobel for this
Fig. 2
purpose and must be purchased separately. Each screw can be serviced with a Unigrip™ driver. NP abutment screws (Fig.1, 2 left) are machined differently than RP/WP abutment screws (Fig.1, 2 right) and can not be interchanged from platform to platform. Titanium and zirconia abutments share the same screw design unlike NobelReplace™, Replace™ Select and Brånemark System™ abutments.
Brånemark System™
Fig. 3
Final screws (Fig.3) are included with each abutment as a complete kit, although final screws should not be used for the abutments during the restoration fabrication process. Separate laboratory screws (Fig.4) are offered by Nobel and each screw can be serviced with a Unigrip™ driver regardless of laboratory or final screw. Each platform diameter (NP 3.5, RP 4.1, WP 5.0mm) screw has its own
Fig. 4
dimensions and can not be interchanged from platform to platform. Laboratory screws are silver in color to differentiate the screws from final screws while final screws are colored black with the exception of NP platform final screws. NP platform final abutment screws are silver in color. Screws for titanium (Fig.3, top row) and zirconia (Fig.3, bottom row) abutments differ slightly and should not be interchanged
NobelReplace™, Replace™ Select
Fig. 5
NNNobel Biocare™ includes final screws (Fig.5) with each abutment as a complete kit, although final screw should not be used for the abutments during the restoration fabrication process. Separate laboratory screws (Fig.6) are offered by Nobel. Each screw can be serviced with a Unigrip™ driver. Zirconia (Fig.5, bottom row) and titanium (Fig.5, top row) abutment screws are machined to different dimensions and should not be interchanged. NP (3.5mm) platform screws (Fig.5, 6 left) work only within the NP platform group while RP (4.3mm), WP (5.0mm) and 6.0mm platform screws (Fig.5, 6 right) are interchangeable from platform to platform as long as the
Fig. 6
appropriate abutment material screw is utilized. Final screws for NP platform zirconia and titanium abutments are silver colored while final screws for all other platform group titanium abutments are colored a dull black color. RP, WP and 6.0 final screws for zirconia abutments are machined with a longer shaft and a shiny black surface finish with a silver colored head. Laboratory screws are manufactured with a silver color, regardless of the platform diameter.
