| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | Zimmer Screw-Vent® |
| Minimum Order Quantity: | 10pcs |
| Price: | USD15-20/pc, included screw |
| Packaging Details: | 1pcs/bag |
| Delivery Time: | 3~5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Ti 6AI-4V ELI (Grade 5) | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Angled: | 0° |
| Gingival: | 1mm/2mm/3mm/4mm/5mm/Customized | Compatible: | NP 3.5mm/ RP 4.5mm/ WP 5.7mm |
| Properties: | Implant Materials & Artificial Organs | Product Tolerance: | +-0.01mm |
| High Light: | 5.7mm Multi Unit Implant Abutment,WP 5.7mm Multi Unit Abutment,Zimmer Screw Vent Abutment |
||

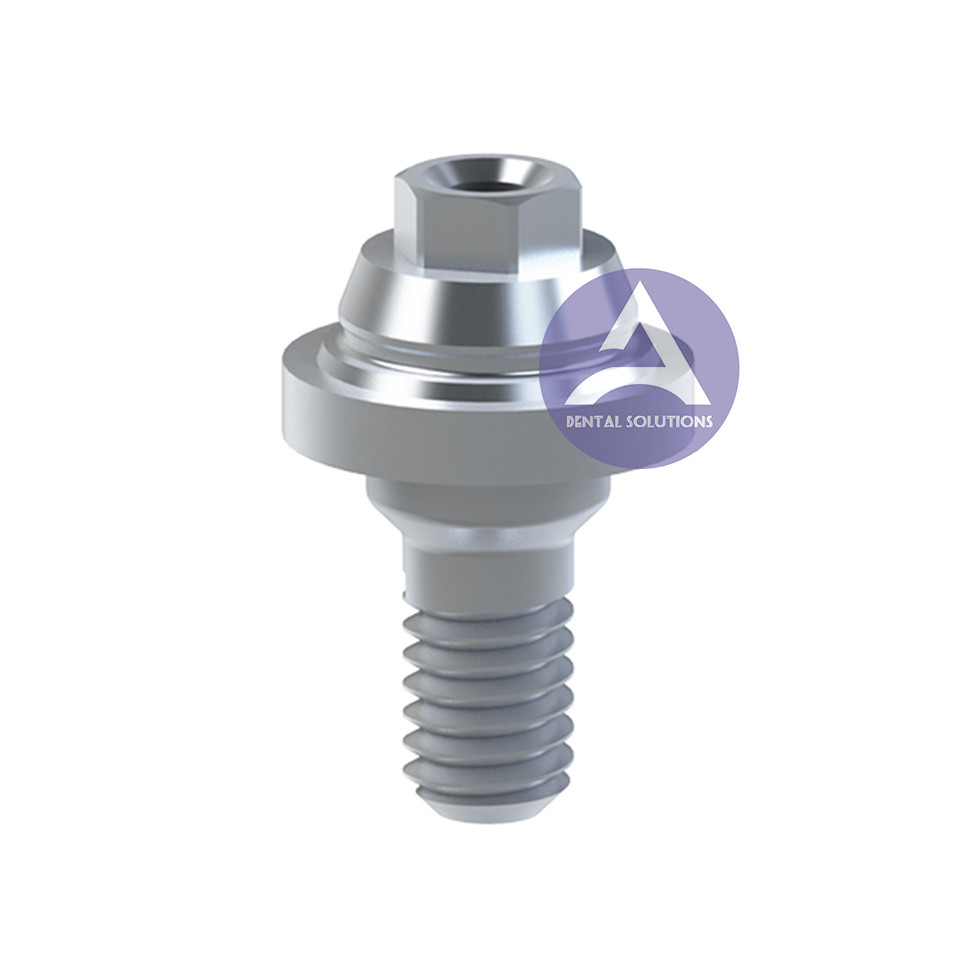

Zimmer Screw Vent WP 5.7mm Multi Unit Implant Abutment
Zimmer Screw-Vent® Titanium Multi-unit Straight Abutment Compatible
NP 3.5mm/ RP 4.5mm/ WP 5.7mm
Desciption:
This Multi-unit abutment comes with a screw that takes a .050/1.27mm hex driver
This abutment is prep-able with a 1mm/2mm/3mm collar height. (Or according your customize request)
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
* Titanium interface abutment
* 1pc Screw Included
* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility
* Can production Custom interface
Approved by CE, ISO 9001, ISO 13485
|
|
MULTI-UNIT® ABUTMENT |
A |
C |
||
| 40.019/1 | NP | 1mm | 4,80 | 1,00 | |
| 40.019/2 | NP | 2mm | 4,80 | 2,00 | |
| 40.019/3 | NP | 3mm | 4,80 | 3,00 | |
| 40.019/4 | NP | 4mm | 4,80 | 4,00 | |
| 40.019/5 | NP | 5mm | 4,80 | 5,00 | |
| 40.020/1 | RP | 1mm | 4,80 | 1,00 | |
| 40.020/2 | RP | 2mm | 4,80 | 2,00 | |
| 40.020/3 | RP | 3mm | 4,80 | 3,00 | |
Points of Zimmer Implant Abutment:
Tapered Screw-Vent® (TSV)
Fig. 1
Tapered Screw-Vent® titanium grade 5 implants are machined with a slightly tapered body geometry and triple lead thread design. The triple lead threads will force the implant at a faster rate in to the osteotomy site as compared to a single lead thread design implant. Four implant diameters (Fig.1) of 3.7, 4.1, 4.7 and 6mm in five lengths of 8, 10, 11.5, 13 and 16mm are available from Zimmer® for this implant system. 3.7 and 4.1mm diameter implants share the same implant/abutment interface (platform) of 3.5mm. 4.7mm diameter implants are machined with a 4.5mm implant/abutment interface and 6.0mm diameter implants are produced with a 5.7mm platform. The implant/abutment interface consist of a internal hexagon which is dimensioned according to the platform diameter.
Fig. 2
Each of the implants is packaged with a cover screw and color coded fixture mount. The color coding scheme is carried throughout the complete implant system for easy platform identification. Green signals the 3.5mm platform, purple signifies a 4.5mm platform and yellow corresponds to the 5.7mm platform. The fixture mount may serve as a delivery device, impression coping and temporary abutment. A oblong lacuna at the apex of the implant creates cutting surfaces and serves as a reservoir for bone chips. Two options are available in regards to the extent of the surface treatment at the coronal aspect (Fig.2) of the implat. Option one is a 1mm machined collar separating the textured area from the implant/abutment interface and option two extendes the textured area to the edge of the implant/abutment interface with added micro groves at the coronal aspect.
Screw-Vent® (SV)
Fig. 3
Screw-Vent® titanium grade 5 implants have a parallel wall body geometry and a triple lead thread design. The triple lead threads will force the implant at a faster rate in to the osteotomy site as compared to a single lead thread design implant. Three implant diameters (Fig.3) of 3.3, 3.7 and 4.7mm in four lengths of 8, 10, 13 and 16mm are available from Zimmer® for this implant system. 3.3 and 3.7mm diameter implants share the same implant/abutment interface (platform) of 3.5mm while 4.7mm diameter implants are machined with a 4.5mm implant/abutment interface. The implant/abutment interface consist of a internal hexagon which is dimensioned according to the platform diameter.
Each of the implants is packaged with a cover screw and color coded fixture mount. The color coding scheme is carried throughout the complete implant system for easy platform identification. Green signals the 3.5mm platform and purple signifies a 4.5mm platform. The fixture mount may serve as a delivery device, impression coping and temporary abutment. A oblong lacuna at the apex of the implant creates cutting surfaces and serves as a reservoir for bone chips. The surface treated area of the implant is separated from the implant/abutment interface by a 2mm machined collar.
