| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | Astra Tech Osseospeed® |
| Minimum Order Quantity: | 10pcs |
| Price: | USD15-20/pc, included screw |
| Packaging Details: | 1pcs/bag |
| Delivery Time: | 3~5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Ti 6AI-4V ELI (Grade 5) | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Gingival: | 1mm/2mm/3mm/Customized |
| Compatible: | RP 3.5-4.0mm / WP 4.5-5.0mm | Properties: | Implant Materials & Artificial Organs |
| Product Tolerance: | +-0.01mm | Screwdriver: | Hex 1.27mm |
| High Light: | Astra Tech Osseospeed,RP 3.5mm Implants Abutment,Ti 6AI 4V ELI Dental Implants Abutment |
||

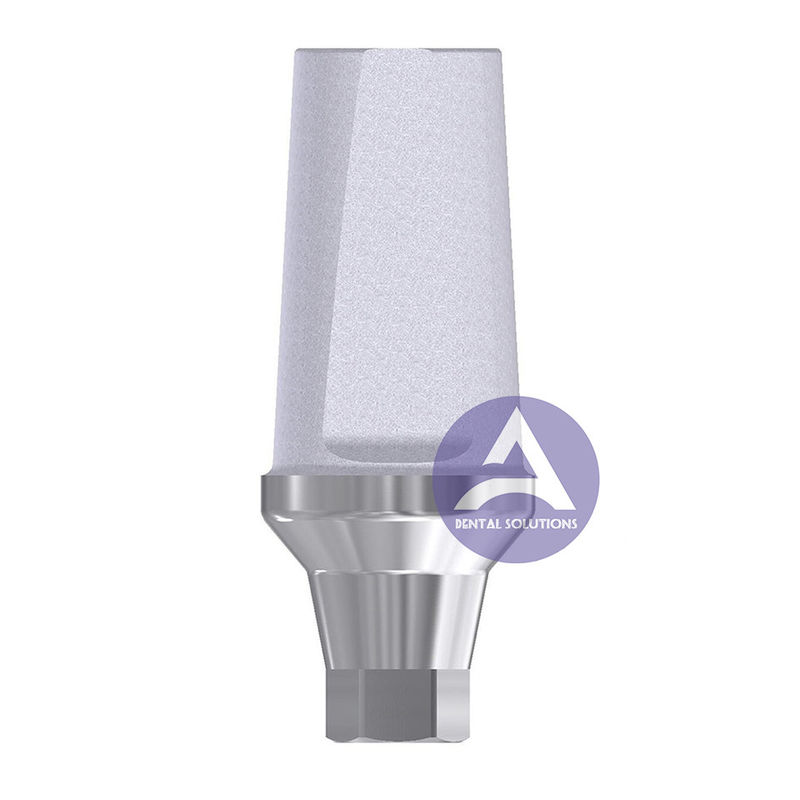

RP 3.5mm Astra Tech Osseospeed Dental Implants Abutment
Astra Tech Osseospeed® Titanium Straight Abutment Compatible
RP 3.5-4.0mm / WP 4.5-5.0mm
Desciption:
This staight abutment comes with a screw that takes a 1.27mm hex driver
This abutment is prep-able with a 1mm/2mm/3mm collar height. (Or according your customize request)
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
* Titanium interface abutment
* 1pc Screw Included
* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility
* Can production Custom interface
Approved by CE, ISO 9001, ISO 13485
|
|
ABUTMENT |
A |
B |
c |
D |
|
| 13.024 | RP | 3,00 | Hex.2,10 | 2,00 | 4,50 | |
| 13.025 | WP | 4,00 | Hex.2,50 | 2,00 | 4,90 | |
Points of Astra OsseoSpeed™ Straight Abutment:
TiDesign™ abutments are manufactured with a hex for indexing and are packaged as a kit with a final screw. TiDesign™ stock titanium abutments are available for all three (3.0 yellow, 3.5/4.0 aqua, 4.5/5.0 lilac) implant/abutment interface connection groups.
3.0 TiDesign™ abutment
3.0 TiDesign™ abutments are machined with a emergence profile of 4.0mm and a choice of collar heights of 1mm, 2mm and 2.4mm. The 1mm and 2mm collar height abutments are straight and the 2.4mm collar height abutment has a 15 degree angle machined in relation to the flat side of the hex. Number markings indicate the emergence profile and a single black line indicates the 3.0 implant/abutment connection group.
Emergence profiles
Straight 3.5/4.0 TiDesign™ abutments are available with a choice of three emergence profiles (4.5, 5.5, 6.5mm) and a collar height of 1.5mm or 3mm for each emergence profile. Two angled abutments with a angulation of 20 degrees and a collar height of 3mm with a choice of two (4.5, 5.5mm) emergence profiles are also offered. Number markings indicate the emergence profile and a double black line indicates the 3.5/4.0 implant/abutment connection group.
Collar height
4.5/5.0 connection diameter TiDesign™ abutments are machined with two (5.5, 6.5mm) emergence profiles and either a 1.5mm or 3mm collar. One 20 degree angled abutment with a emergence profile of 5.5mm and a collar height of 3.5mm is also available. Number markings indicate the emergence profile and the absence of a black line indicates the 4.5/5.0 implant/abutment connection group.
