| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | ITI Straumann Bone Level® |
| Minimum Order Quantity: | 10pcs |
| Price: | USD15-20/pc, included screw |
| Packaging Details: | 1pcs/bag |
| Delivery Time: | 3~5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Ti 6AI-4V ELI (Grade 5) | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Gingival: | 1mm/2mm/3mm/Customized |
| Compatible: | NC 3.3mm / RC 4.1mm | Properties: | Implant Materials & Artificial Organs |
| Product Tolerance: | +-0.01mm | Screwdriver: | Straumann-Torx |
| Highlight: | Straight Dental Implants Abutment,RC 4.1mm Titanium Implants Abutment,NC 3.3mm Implants Abutment |
||

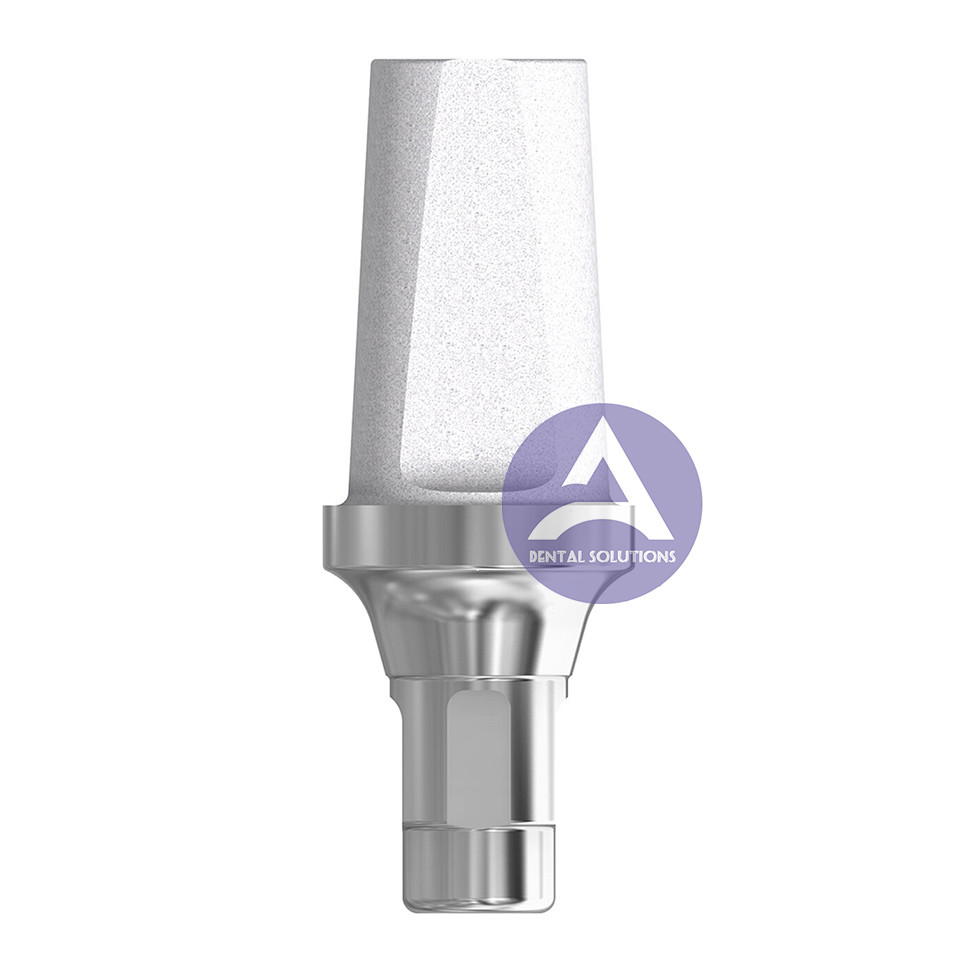

NC 3.3mm RC 4.1mm Titanium Straight Dental Implants Abutment
ITI Straumann Bone Level® Titanium Straight Abutment Compatible
NC 3.3mm / RC 4.1mm
Desciption:
This staight abutment comes with a screw that takes a Straumann-Torx driver
This abutment is prep-able with a 1mm/2mm/3mm collar height. (Or according your customize request)
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
* Titanium interface abutment
* 1pc Screw Included
* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility
* Can production Custom interface
Approved by CE, ISO 9001, ISO 13485
|
|
ABUTMENT |
A |
B |
C |
D |
|
| 13.043 | NP (NC) | 2,75 | Conical BL | 2,00 | 4,50 | |
| 13.044 | RP (RC) | 3,30 | Conical BL | 2,00 | 4,50 | |
| 22.043 | NP (NC) | 2,75 | Conical BL | |||
| 22.044 | RP (RC) | 3,30 | Conical BL | |||
Points of ITI Straumann Bone level Straight Abutment:
Fig. 7
Narrow connection (NC) Implant/abutment platform diameter abutments can be categorized in to four groups, anatomic, gold (UCLA), ceramic and "cementable". Anatomic, gold and ceramic abutments are intended to be selected and modified extra orally on a master model after a fixture level impression (direct, indirect).
"Cementable" abutments (Fig.7) are envisioned to be installed on to the implant and impressed with the abutment level impression technique, much like solid abutments for tissue level implants.
Cementable abutments are not cemented in to the implant as the name might suggest but screwed on to the implant like other abutments for bone level implants. Twelve different color coded "cementable" abutment versions are produced, combining two different emergence profiles (Fig.7, left) 3.5mm blue, 5.0mm yellow) and three collar heights (Fig.7, bottom row 1, 2, 3mm) with two abutment portion heights (Fig.7, right 4mm, 5.5mm). A color band etched on to the coronal portion of the abutment indicates the abutment portion height (4mm black, 5.5mm white).
Fig. 11
Regular connection (RC) platform diameter abutments can be categorized in to four groups, anatomic, gold (UCLA), ceramic and "cementable". Anatomic, gold and ceramic abutments are intended to be selected and modified extraorally on a master model after a fixture level impression (direct, indirect). "Cementable" abutments are envisaged to be installed on to the implant and impressed with the abutment level impression technique, much like solid abutments for tissue level implants.
Cementable abutments are not cemented in to the implant as the name might suggest but screwed on to the implant like other abutments for bone level implants. Twelve different color coded "cementable" abutment versions are produced, combining two different emergence profiles (Fig.11, left 5.0mm gray, 6.5mm brown) and three collar heights (Fig.11, bottom row 1, 2, 3mm) with two abutment portion heights (Fig.11, right, 4mm, 5.5mm). A color band etched on to the coronal portion of the abutment indicates the abutment portion height (4mm black, 5.5mm white).
