| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | Biomet 3i Certain® |
| Minimum Order Quantity: | 10pcs |
| Price: | USD6-9 |
| Packaging Details: | 1pcs/bag |
| Delivery Time: | 3~5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Ti 6AI-4V ELI (Grade 5) | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Compatible: | NP 3.4mm/ RP 4.1mm / WP 5.0mm |
| Gingival: | 3mm/ 4mm/ 5mm/ 6mm/ Customized | Properties: | Implant Materials & Artificial Organs |
| Product Tolerance: | +-0.01mm | Screwdriver: | Hex 1.2mm |
| Highlight: | Hex 1.2mm Implant Healing Abutment,Titanium Healing Abutment,biomet 3i healing abutments |
||

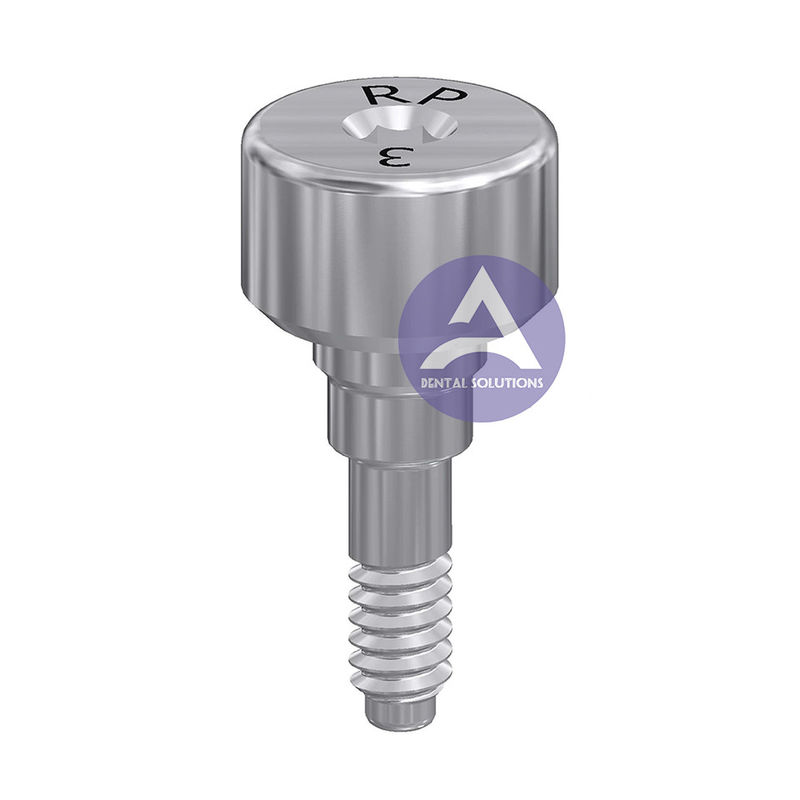

Hex 1.2mm Titanium Biomet 3i Implant Healing Abutment
Biomet 3i Certain® Implant Titanium Healing Cap Abutment Compatible
NP 3.4mm/ RP 4.1mm / WP 5.0mm
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
* Titanium interface abutment
* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility
* Can production Custom Gingival Heights
|
|
HEALING ABUTMENT |
A |
C |
||
| 20.014/3 | NP | 3mm | 4,50 | 3,00 | |
| 20.014/4 | NP | 4mm | 4,50 | 4,00 | |
| 20.014/5 | NP | 5mm | 4,50 | 5,00 | |
| 20.015/3 | RP | 3mm | 4,90 | 3,00 | |
| 20.015/4 | RP | 4mm | 4,90 | 4,00 | |
| 20.015/5 | RP | 5mm | 4,90 | 5,00 | |
| 20.016/3 | WP | 3mm | 5,90 | 3,00 | |
| 20.016/4 | WP | 4mm | 5,90 | 4,00 | |
| 20.016/5 | WP | 5mm | 5,90 | 5,00 | |
Points of Biomet 3i Certain® internal hex healing abutments:
Fig. 5
EP® one piece healing abutments combine the screw and abutment body as a monoblock for less cumbersome handling. The screw portion of the abutments is color coded in compliance with the platform identification scheme (purple 3.4mm, blue 4.1mm, yellow 5.0mm, green 6.0mm). Each abutment is marked on top with three numbers. Two numbers printed like a fraction, indicate the emergence profile and implant/abutment platform diameter whereby the numerator expresses the emergence profile in millimeter and the denominator indicates the implant/abutment platform diameter in millimeter. The large print number denotes the height of the healing abutment in millimeters.
Fig. 6
3.4mm platform healing abutments are produced in two emergence profiles of 3.4mm and 3.8mm in four heights of 2, 3, 4 and 6mm. 4.1mm platform healing abutments are offered in five (2, 3, 4, 6, 8mm) different heights (Fig.6) and four (4.1, 5.0, 6.0, 7.5mm) emergence profiles each. 5.0mm platform healing abutments are available in four (5.0, 5.6, 6.0, 7.5mm) emergence profiles and five heights of 2, 3, 4, 6 and 8mm. 6.0 platform healing abutments are machined with the same height configuration as 5.0 platform healing abutments in three (6.0, 6.8, 7.5mm) emergence profiles (Fig.5). A 0.048' (1.25mm) hex driver is required to service these abutments.
