| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | Astra Tech EV® |
| Minimum Order Quantity: | 10pcs |
| Price: | USD6-9 |
| Packaging Details: | 1pcs/bag |
| Delivery Time: | 3~5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Ti 6AI-4V ELI (Grade 5) | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Compatible: | 3.0mm/ 3.6mm/ 4.2mm/ 4.8mm/ 5.4mm |
| Gingival: | 3mm/ 4mm/ 5mm/ 6mm/Customized | Properties: | Implant Materials & Artificial Organs |
| Product Tolerance: | +-0.01mm | Screwdriver: | Hex 1.3mm |
| High Light: | Astra Tech EV Implant Healing Abutment,Titanium Grade 5 Healing Abutment,Titanium Gr5 Healing Abutment |
||

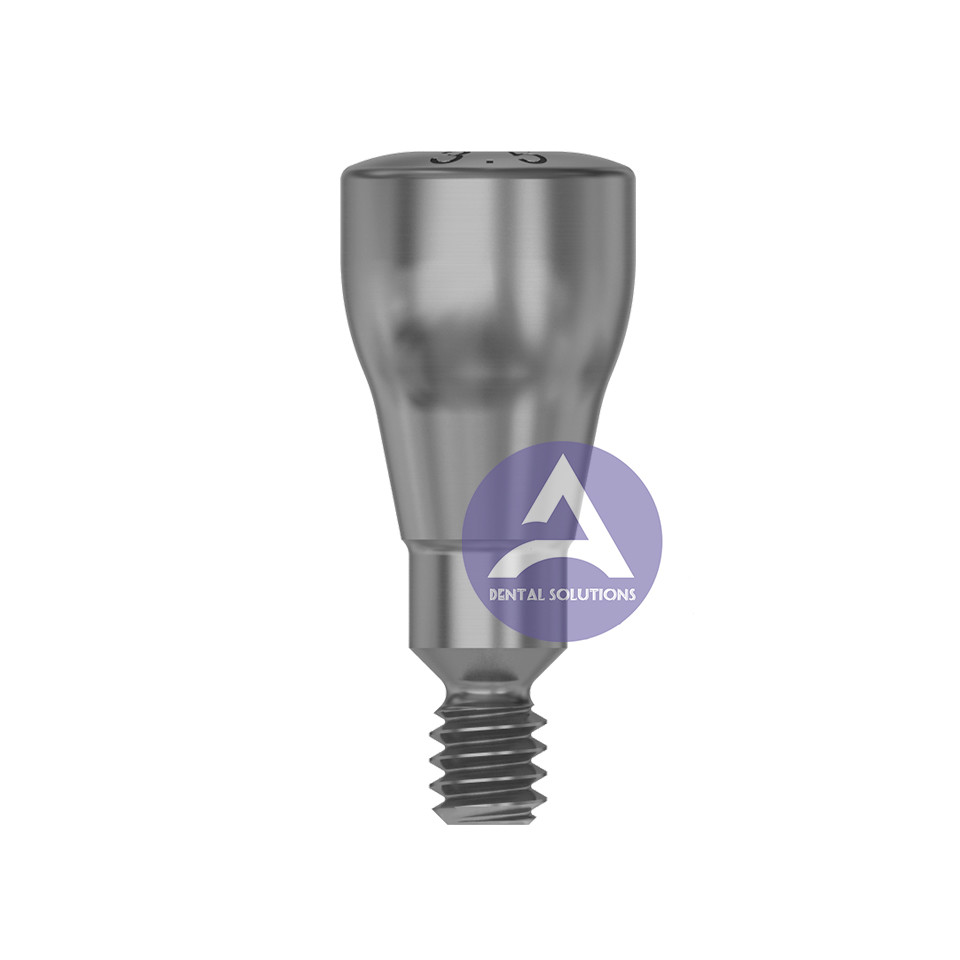

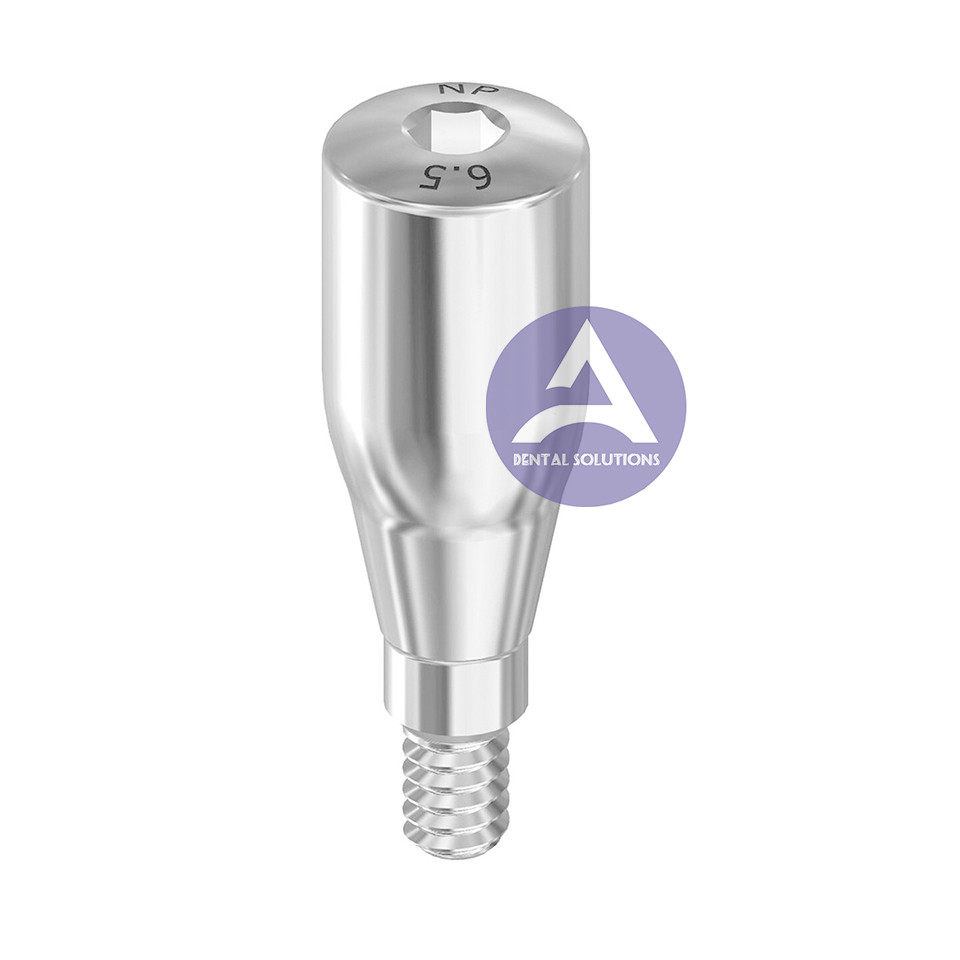

Titanium Grade 5 Astra Tech EV Implant Healing Abutment
Astra Tech EV® Implant Titanium Healing Cap Abutment Compatible
3.0mm/ 3.6mm/ 4.2mm/ 4.8mm/ 5.4mm
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
* Titanium interface abutment
* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility
* Can production Custom Gingival Heights
|
|
HEALING ABUTMENT |
A |
C |
||
| 20.059/3 | EV 3.6 | 3,5mm | 4,00 | 3,50 | |
| 20.059/4 | EV 3.6 | 4,5mm | 4,00 | 4,50 | |
| 20.059/5 | EV 3.6 | 5,5mm | 4,00 | 6,50 | |
| 20.060/3 | EV 4.2 | 3,5mm | 4,95 | 3,50 | |
| 20.060/4 | EV 4.2 | 4,5mm | 4,95 | 4,50 | |
| 20.060/5 | EV 4.2 | 5,5mm | 4,95 | 6,50 | |
| 20.061/3 | EV 4.8 | 3,5mm | 6,50 | 3,50 | |
| 20.061/4 | EV 4.8 | 4,5mm | 6,50 | 4,50 | |
| 20.061/5 | EV 4.8 | 5,5mm | 6,50 | 6,50 | |
Points of Astra EV Healing Abutment:
The design of the healing abutments is based upon the natural dentition utilizing a site-specific, crown-down approach. The round and triangular options mimic a variety of tooth shapes and support the soft tissue preparing for the final abutment.
■ Heights and diameters are harmonized with the final abutments and with the expected tooth positions
■ Round shapes are indicated for all positions in the mouth
■ Triangular shapes are designed for anterior implant sites and mimic the specific shape for incisors and canines
Note:
■ The protocol describes an implant placement flush to or slightly below bone level.
■ Make sure no bone or soft tissue is trapped between healing abutment and implant. This is increasingly important if the implant is placed submerged.
■ If a narrow healing abutment is selected in situations with thick gingiva, the soft tissue can be too tight for the impression component when making impressions at the implant level. Therefore the selection of healing abutment is important.
