Place of Origin: | China |
---|---|
Brand Name: | ANGELS |
Certification: | TUV CE, ISO13485, ISO9001 |
Model Number: | Astra Tech OsseoSpeed® |
Minimum Order Quantity: | 5pcs |
Price: | USD10-14 (included screw) |
Packaging Details: | 1pcs/bag |
Delivery Time: | 3~5 days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 500,000pcs/month |
Material: | Ti 6AI-4V ELI (Grade 5) | Warranty: | 12 Months |
---|---|---|---|
After-sale Service: | Online Technical Support | Connection: | Engaging |
Compatible: | Yellow(NP 3.0) / Aqua (RP 3.5-4.0)/ Lilac (WP 4.5-5.0) | Properties: | Implant Materials & Artificial Organs |
Product Tolerance: | +-0.01mm | ||
Highlight: | Yellow NP 3.0 Abutment,Astra Tech OsseoSpeed Abutment,Yellow Titanium Implant Abutment |

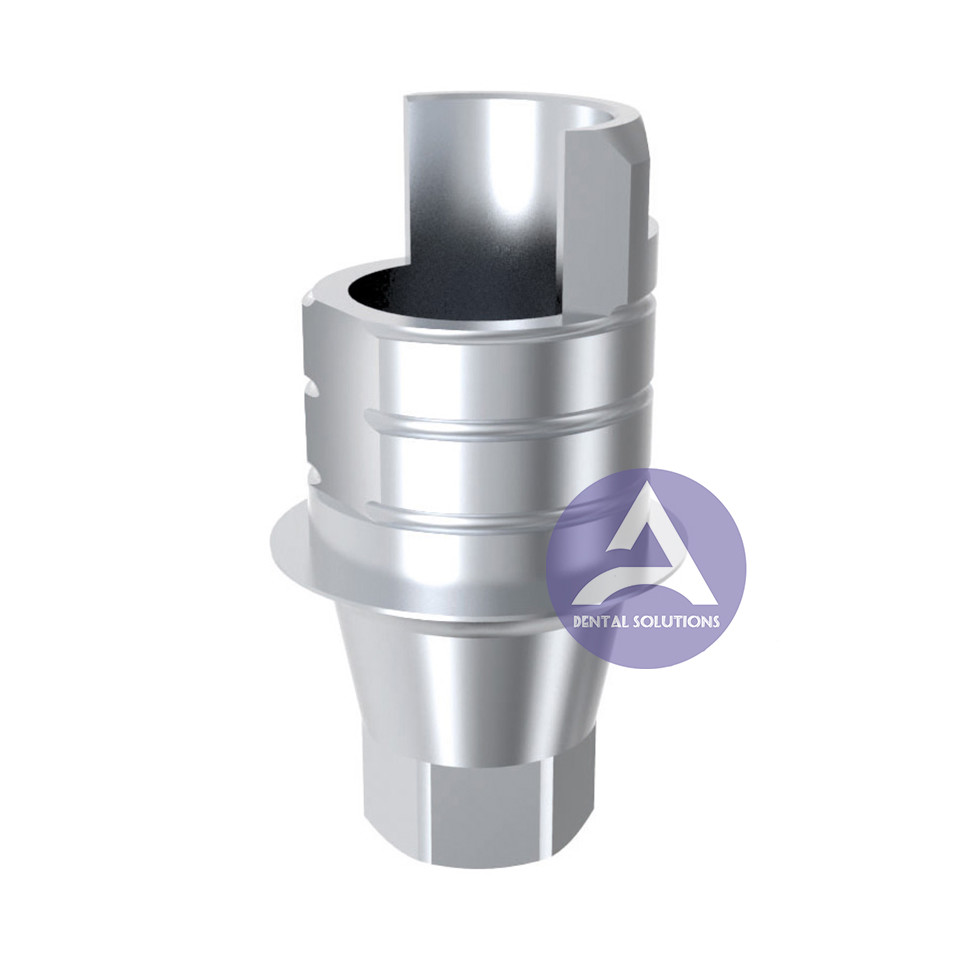

Yellow NP 3.0 Astra Tech OsseoSpeed Titanium Implant Abutment
Astra Tech OsseoSpeed® Titanium Ti-Base Abutment Compatible
Yellow(NP 3.0) / Aqua (RP 3.5-4.0)/ Lilac (WP 4.5-5.0)
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
* Titanium interface abutment
* 1pc Screw Included
* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility
* Exterior retentions for more cementation bonding
Specific design ensures a stable union, reinforcing the structure of zirconium in the areas of greatest stress, softening edges and ensuring the service life of the prosthesis.
Furthermore, the saving is also shown in the less time needed when working on the most sensitive part of the prosthesis, the adjustment with the implant.
Approved by CE, ISO 9001, ISO 13485
|
Ti BASE ON IMPLANT |
A |
B |
D |
||
15.024 | RP | Non-engaging | 3,00 | 4,50 | ||
16.024 | RP | Engaging | 3,00 | Hex 2,10 | 4,50 | |
15.025 | WP | Non-engaging | 4,00 | 4,50 | ||
16.025 | WP | Engaging | 4,00 | Hex 2,50 | 4,50 |
|
Ti BASE ON UNIABUTMENT® |
A |
B |
C |
D |
||
15.036 | 20º | Non-engaging | 3,50 | Cone 20º | 0,45 | 4,50 | |
15.037 | 45º | Non-engaging | 3,50 | Cone 20º | 0,45 | 4,50 |
Points of Astra OsseoSpeed™ Abutment:
Collar height
Direct Abutment API™ titanium abutments are conceptually designed for posterior restorations and intended to be installed by the surgeon. These abutments are machined as a one piece unit (abutment body and screw) without a index (hex) at the implant/abutment connection interface. Intended for abutment level impressions with appropriate plastic impression copings.
3.5/4.0 platform group direct abutments are available with a 4mm emergence profile and a choice of four (0.5, 1, 2.5, 4mm) collar heights or a emergence profile of 5mm and three (1, 2.5, 4mm) possible collar heights. 4.5/5.0 platform group direct abutments are available with a 5mm emergence profile and a choice of four (0.5, 1, 2.5, 4mm) collar heights or a emergence profile of 6mm and three (1, 2.5, 4mm) possible collar heights.
Emergence profile
All abutments are marked with a black line 1mm from the top of the abutment in case the abutment needs intraoral height adjustment. Analogs are marked in the same manner and can then be reduced to the same height, using the marker as a reference point. A number printed on the abutment indicates the emergence profile (4, 5 or 6mm). These abutments are usually sold as a kit containing the abutment, abutment carrier, impression coping, analog and burnout copings but also available a la carte. Abutments are torqued to 25Ncm regardless of platform connection diameter group.
