| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | Astra Tech EV® |
| Minimum Order Quantity: | 5pcs |
| Price: | USD10-14 (included screw) |
| Packaging Details: | 1pcs/bag |
| Delivery Time: | 3~5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Ti 6AI-4V ELI (Grade 5) | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Connection: | Engaging |
| Compatible: | 3.0mm/ 3.6mm/ 4.2mm/ 4.8mm/ 5.4mm | Properties: | Implant Materials & Artificial Organs |
| Product Tolerance: | +-0.01mm | ||
| High Light: | Astra Tech EV Ti Base Abutment,Astra Tech EV Abutment,Engaging Ti Abutment |
||

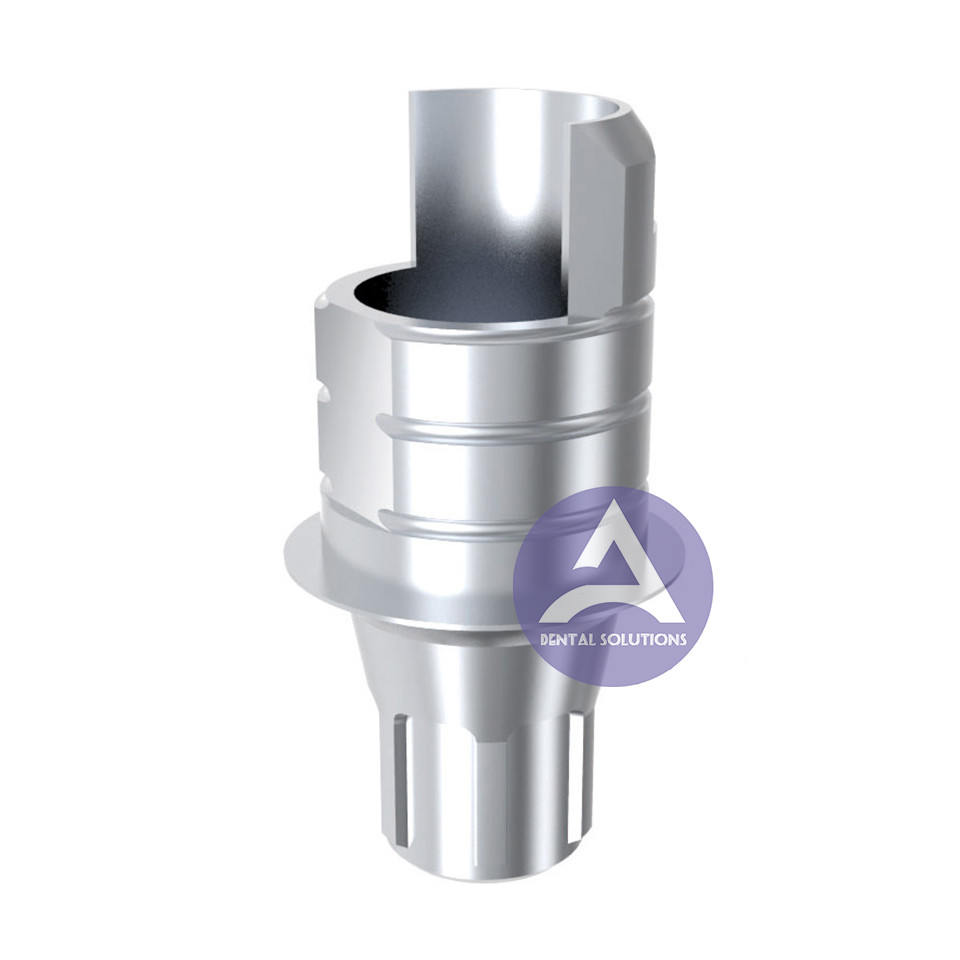

3.0mm 3.6mm 4.2mm Engaging Astra Tech EV Ti Base Abutment
Astra Tech EV® Titanium Ti-Base Abutment Compatible with
3.0mm/ 3.6mm/ 4.2mm/ 4.8mm/ 5.4mm
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
* Titanium interface abutment
* 1pc Screw Included
* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility
* Exterior retentions for more cementation bonding
Specific design ensures a stable union, reinforcing the structure of zirconium in the areas of greatest stress, softening edges and ensuring the service life of the prosthesis.
Furthermore, the saving is also shown in the less time needed when working on the most sensitive part of the prosthesis, the adjustment with the implant.
Approved by CE, ISO 9001, ISO 13485
|
|
TI BASE |
A |
B |
C |
D |
||
| 15.059 | EV 3.6 | Non-engaging | 2,90 | Circular | 1,00 | 4,50 | |
| 16.059 | EV 3.6 | Engaging | 2,90 | Conic Evo | 1,00 | 4,50 | |
| 15.060 | EV 4.2 | Non-engaging | 3,50 | Circular | 1,00 | 4,50 | |
| 16.060 | EV 4.2 | Engaging | 3,50 | Conic Evo | 1,00 | 4,50 | |
| 15.061 | EV 4.8 | Non-engaging | 4,10 | Circular | 1,00 | 4,90 | |
| 16.061 | EV 4.8 | Engaging | 4,10 | Conic Evo | 1,00 | 4,90 | |
|
|
TI BASE ON
|
A |
B |
C |
D |
| 15.058 | 3,41 | Cone 66º | 0,85 | 4,40 |
Points of Astra Tech EV Titanium Base:
• Single and partial situations, all positions in the mouth
• For temporary and final cement- / screw-retained restorations
• Screw-retained restorations, limited to single-tooth only
TitaniumBase EV combines the proven strength of a prefabricated titanium abutment with the esthetics of an individually designed ceramic component. This solution allows the dental laboratory to design and manufacture a CAD/CAM restoration within their preferred workflow.
• TitaniumBase EV is provided with two flattened sides forming an anti-rotational feature
• Abutment Screw EV is color-coded
• Individually designed foresthetic results
• High mechanical integrity
• A strong and stable base
