| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | Nobel Biocare Active® |
| Minimum Order Quantity: | 10Pcs |
| Price: | USD8~12/pc, included screw |
| Packaging Details: | 1pcs/bag |
| Delivery Time: | 3~5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Ti 6AI-4V ELI (Grade 5) | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Size: | 3.0mm/ NP 3.5mm/ RP 4.3mm |
| Properties: | Implant Materials & Artificial Organs | Product Tolerance: | +-0.01mm |
| High Light: | 3.0mm Tooth Implant Abutment,nobelactive dental implant Abutment,RP 4.3mm Tooth Implant Abutment |
||

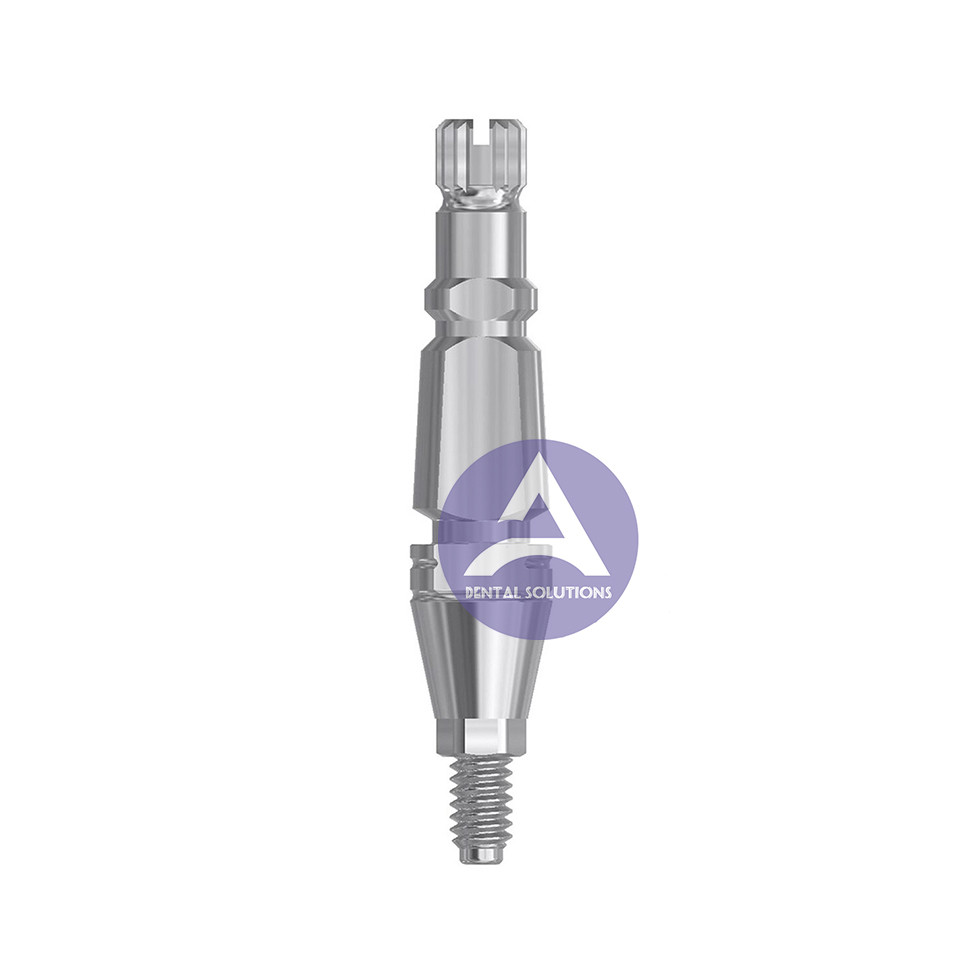

RP 4.3mm 3.0mm Nobel Biocare Active Tooth Implant Abutment
Nobel Biocare Active® Impression Coping Transfer Closed/Open Tray Compatible
3.0mm/ NP 3.5mm/ RP 4.3mm
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
- Titanium interface abutment
- Precision machined up to ± 5µm
- Combination of high fatigue strength
- Superior level of biocompatibility
- Exterior retentions for more cementation bonding
Approved by CE, ISO 9001, ISO 13485
|
|
TRANSFER |
A |
B |
|
| 17.044 | NP | 3,00 | Hex 2,25 | |
| 17.045 | RP | 3,35 | Hex 2,65 | |
Points of Nobel Biocare Active™ Impression Coping Transfer:
Fig. 1
Indirect impression copings designed for the closed tray impression technique are produced in two emergence profiles for NP platform implants (Fig.1) and three emergence profiles for RP implants (Fig.2). NP impression copings are produced in one height of 13mm while RP impression copings are available in two heights of 13m (Fig.2, top row)and a low profile version (Fig.2, bottom row) of 9mm.
Emergence profiles for NP impression copings are machined in 3.6 and 5.0mm. RP impression copings are
Fig. 2
offered in three emergence profiles of 3.6, 5.0 and 6.0mm Early production versions were produced without color coding for identification but Nobel Biocare™ has started to color code some of the impression copings. The NP (3.5mm) platform would be represented through the color fuchsia and RP/WP (4.3/4.9mm) impression copings will be yellow in color. A Unigrip™ driver may be used to service the fixation screw for impression copings.
Fig. 3
Direct impression copings designed for the open tray impression technique are produced in two emergence profiles for NP platform implants (Fig.3, top row) and three emergence profiles for RP implants (Fig.3, bottom row). NP impression copings are produced in one height of 14mm while RP impression copings are available in two heights, 14m and a low profile version of 10mm. Emergence profiles for NP impression copings are machined in 3.6 and 5.0mm. RP impression copings are offered in three emergence profiles of 3.6, 5.0 and 6.0mm Only NP (3.5mm) platform impression copings are color coded for identification (fuchsia). A Unigrip™ driver may be used to service the fixation screw for impression copings.
