Place of Origin: | China |
---|---|
Brand Name: | ANGELS |
Certification: | TUV CE, ISO13485, ISO9001 |
Model Number: | Biohorizons Internal® |
Minimum Order Quantity: | 10pcs |
Price: | USD15-20/pc, included screw |
Packaging Details: | 1pcs/bag |
Delivery Time: | 3~5 days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 500,000pcs/month |
Material: | Ti 6AI-4V ELI (Grade 5) | Warranty: | 12 Months |
---|---|---|---|
After-sale Service: | Online Technical Support | Angled: | 0° |
Gingival: | 1mm/2mm/3mm/4mm/5mm/Customized | Compatible: | 3.0mm/ NP 3.5mm/ RP 4.5mm/ WP 5.7mm |
Properties: | Implant Materials & Artificial Organs | Product Tolerance: | +-0.01mm |
Highlight: | biohorizons multi unit abutment,Titanium Multi Unit Abutment,Internal Multi Unit Abutment |

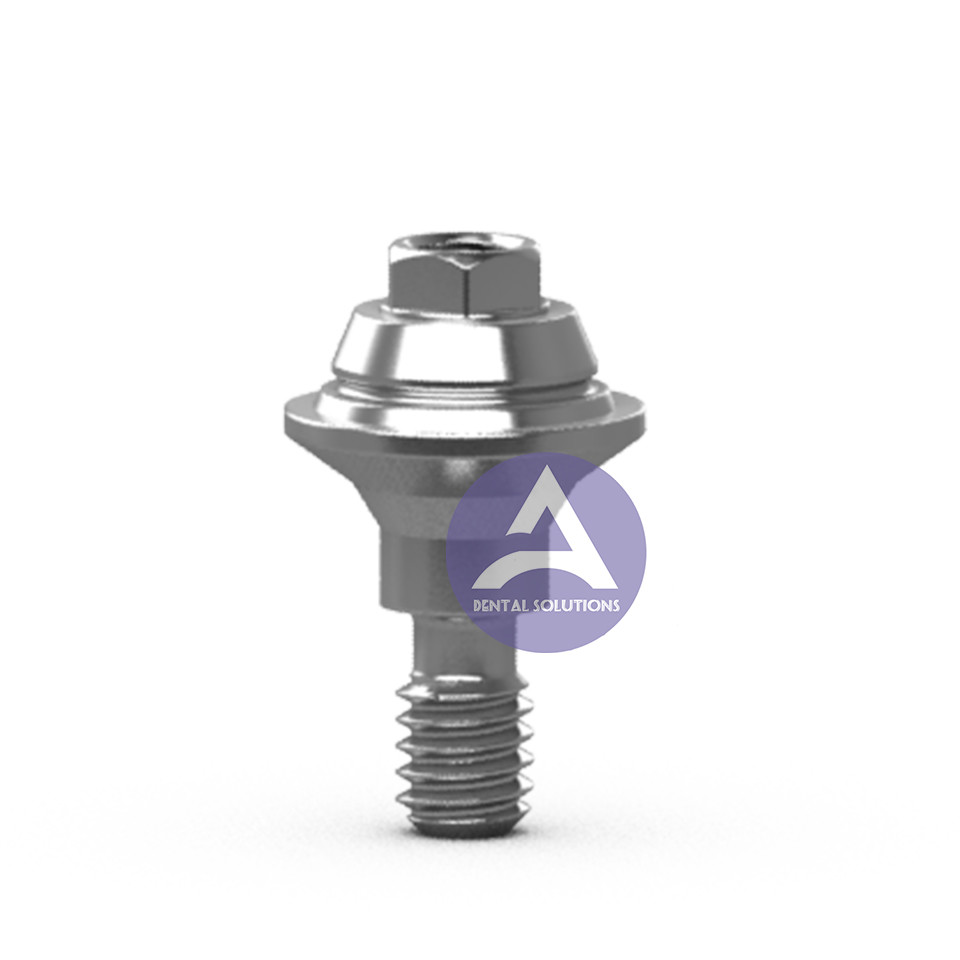

Biohorizons Internal Titanium Multi Unit Implant Abutment
Biohorizons Internal® Titanium Multi-unit Straight Abutment Compatible
3.0mm/ NP 3.5mm/ RP 4.5mm/ WP 5.7mm
Desciption:
This Multi-unit abutment comes with a screw that takes a .050/1.27mm hex driver
This abutment is prep-able with a 1mm/2mm/3mm collar height. (Or according your customize request)
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
* Titanium interface abutment
* 1pc Screw Included
* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility
* Can production Custom interface
Approved by CE, ISO 9001, ISO 13485
Points of Biohorizons Tapered internal, Internal Multi unit Abutment:
Abutment for Screw abutments serve as intermediary abutments for splinted, screw retained restorations and substructures. Theses abutments may be utilized in situations with excessive tissue height (≥2mm) above implants or to correct a unfavorable final screw access path. The abutments are color coded for platform diameter identification yellow (3.5mm) green (4.5mm) and blue (5.7mm). Special UCLA abutments (discussed below) or CAD CAM substructures are required for Abutment for Screw abutments. Impression copings for already installed Abutment for Screw abutments are also Abutment for Screw specific.
Straight Abutment for Screw abutments (Fig.7) are non indexed and machined as a mono block, integrating the screw and abutment in to a single entity. 3.5 and 4.5mm platform abutments are offered in three collar heights of 1, 3 and 5mm while 5.7mm platform abutments are available in two collar heights of 1 and 3mm.
Angled Abutment for Screw abutments (Fig.8) are machined with a implant/abutment indexing feature (hexagon) and the angle of correction is away from one of the flat sides of the indexing hexagon. The abutments are of considerable height (5mm). This should be taken in to account during the treatment planning and restorative phase. 3.5mm platform angled Abutment for Screw abutments are available with a 17 degree angle of correction while 4.5mm platform abutments are offered in two angulations of 15 and 25 degrees. 5.7mm platform abutments are machined with a correction of 15 degrees only.
