Place of Origin: | China |
---|---|
Brand Name: | ANGELS |
Certification: | TUV CE, ISO13485, ISO9001 |
Model Number: | Biomet 3i Certain® |
Minimum Order Quantity: | 10Pcs |
Price: | USD8~12/pc, included screw |
Packaging Details: | 1pcs/bag |
Delivery Time: | 3~5 days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 500,000pcs/month |
Material: | Castable Plastic | Warranty: | 12 Months |
---|---|---|---|
After-sale Service: | Online Technical Support | Connection: | Engaging & Non-Engaging |
Size: | NP 3.4mm/ RP 4.1mm/ WP 5.0mm | Properties: | Implant Materials & Artificial Organs |
Product Tolerance: | +-0.01mm | ||
Highlight: | Biomet 3i Certain UCLA Implant Abutment,Biomet 3i Certain UCLA Abutment,Biomet 3i Certain Implant Abutment |

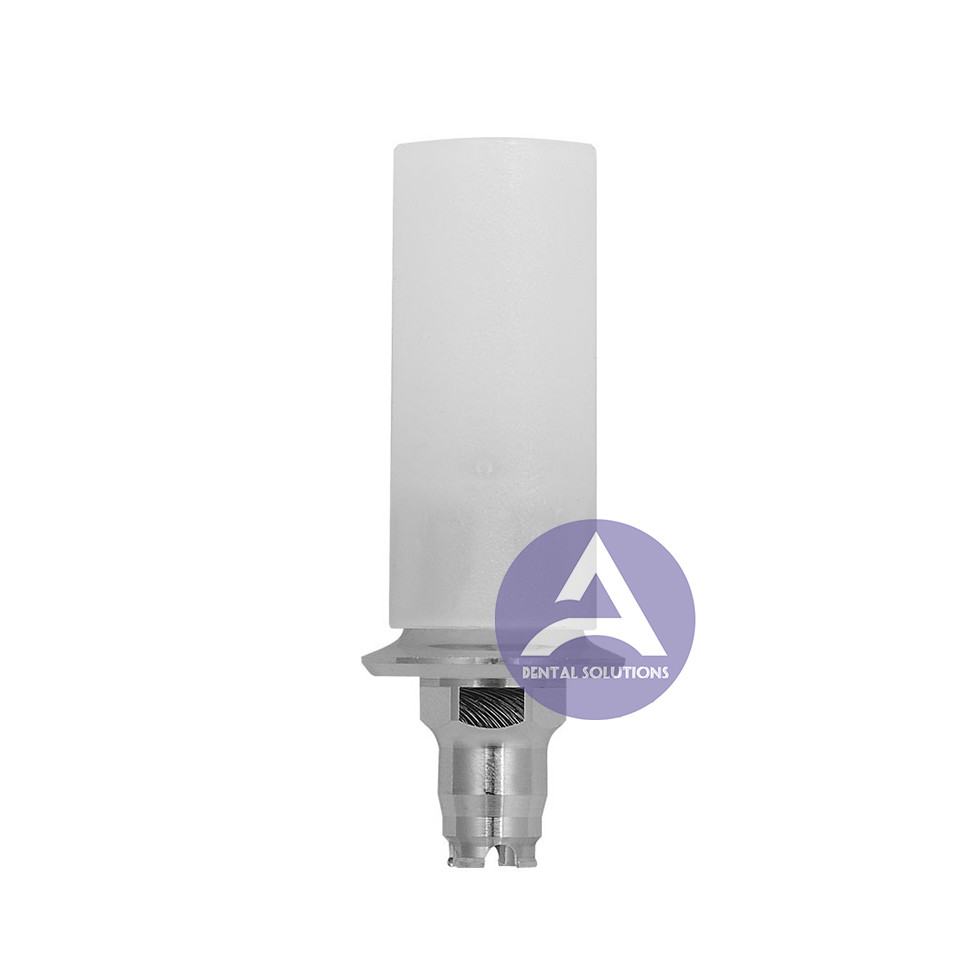

Biomet 3i Certain® UCLA CoCr Base Castable Abutment Compatibe
NP 3.4mm/ RP 4.1mm/ WP 5.0mm (Engaging & Non-Engaging)
Material:
CoCr base and castable plastic chimney
Made of CoCr base and castable plastic chimney material for the stable retention of modelling materials
This base is available in two types of platforms: engaging and non-engaging.
Approved by CE, ISO 9001, ISO 13485
|
CrCo BASE |
A |
B |
C |
D |
||
30.014 | NP | Non-engaging | 3,45 | Circular | 1,30 | 4,50 | |
31.014 | NP | Engaging | 3,45 | Hex.2,15 | 1,30 | 4,50 | |
30.015 | RP | Non-engaging | 4,10 | Circular | 1,30 | 4,90 | |
31.015 | RP | Engaging | 4,10 | Hex.2,70 | 1,30 | 4,90 | |
30.016 | WP | Non-engaging | 5,00 | Circular | 1,30 | 5,20 | |
31.016 | WP | Engaging | 5,00 | Hex.2,70 | 1,30 |
5,20 |
Points of Biomet 3i Certain® internal hex UCLA abutment:
Fig. 11
UCLA abutments (cast on) are made of a machined gold implant/abutment interface and a plastic cylinder processed to the gold interface. Engaging (hexed, Fig.11, left) and non engaging (non hexed, Fig.11, right) versions are offered for all four implant platform diameters. Non indexed UCLA's are packaged with a special final screw. Indexed UCLA abutments require the purchase of the final screw in addition to the abutment.
