| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | ITI Straumann Bone Level® |
| Minimum Order Quantity: | 10pcs |
| Price: | USD15-20/pc, included screw |
| Packaging Details: | 1pcs/bag |
| Delivery Time: | 3~5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Ti 6AI-4V ELI (Grade 5) | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Gingival: | 1mm/2mm/3mm |
| Compatible: | NC 3.3mm | Properties: | Implant Materials & Artificial Organs |
| Product Tolerance: | +-0.01mm | Screwdriver: | Straumann-Torx |
| Diameter: | 3.5mm | Reference No.: | 022.2311/022.2312/022.2313 |
| REF No.: | 022.2315/022.2316/022.2317 | ||
| High Light: | 3.5mm Dental Implants Abutment,Ti 6AI-4V ELI Dental Implants Abutment |
||

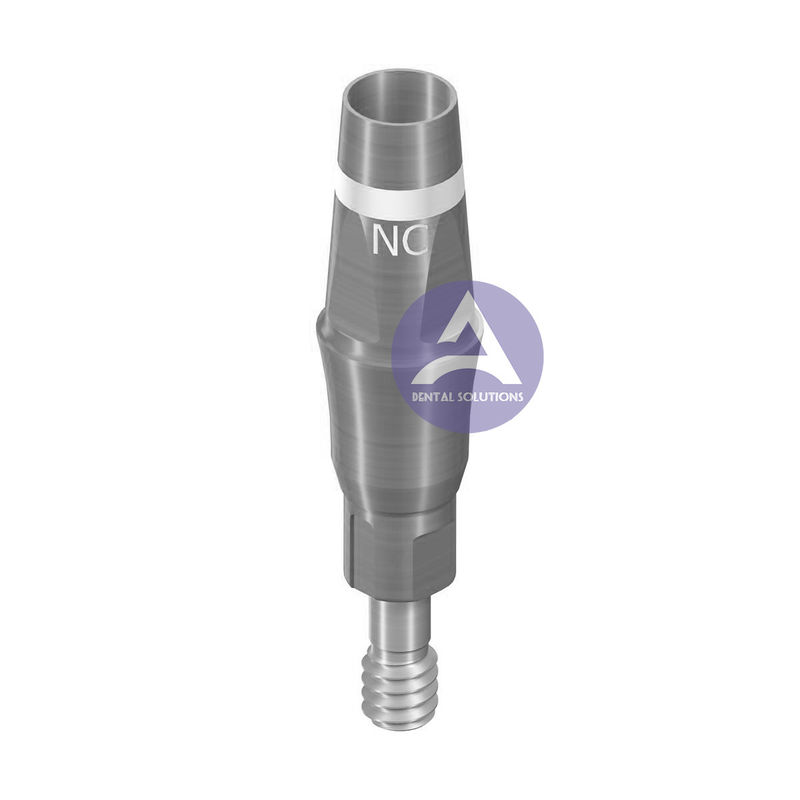

Straumann ITI BL NC Cementable Abutment - D 3.5mm, GH 1/2/3mm, AH 4/5.5mm
ITI Straumann Bone Level® Titanium Straight Cementable Abutment Compatible
NC 3.3mm, D:3.5mm, GH:1/2/3mm, AH:4/5.5mm
Desciption:
This staight abutment comes with a screw that takes a Straumann-Torx driver
Diameter: 3.5mm
Collor Height Option: 1mm / 2mm / 3mm
Abutment Height Option: 4mm / 5.5mm
Material:
Ti 6AI-4V ELI (Supply from Germany)
Reference Number:
022.2311
022.2312
022.2313
022.2315
022.2316
022.2317
Feature:
* Titanium interface abutment
* 1pc Screw Included
* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility
* Can production Custom interface
Approved by CE, ISO 9001, ISO 13485
Points of ITI Straumann Bone level Straight Abutment:
Fig. 7
Narrow connection (NC) Implant/abutment platform diameter abutments can be categorized in to four groups, anatomic, gold (UCLA), ceramic and "cementable". Anatomic, gold and ceramic abutments are intended to be selected and modified extra orally on a master model after a fixture level impression (direct, indirect).
"Cementable" abutments (Fig.7) are envisioned to be installed on to the implant and impressed with the abutment level impression technique, much like solid abutments for tissue level implants.
Cementable abutments are not cemented in to the implant as the name might suggest but screwed on to the implant like other abutments for bone level implants. Twelve different color coded "cementable" abutment versions are produced, combining two different emergence profiles (Fig.7, left) 3.5mm blue, 5.0mm yellow) and three collar heights (Fig.7, bottom row 1, 2, 3mm) with two abutment portion heights (Fig.7, right 4mm, 5.5mm). A color band etched on to the coronal portion of the abutment indicates the abutment portion height (4mm black, 5.5mm white).
