Straumann ITI BL NC Cementable Abutmen GH 1mm 2mm 3mm

Basic Information
Place of Origin: China
Brand Name: ANGELS
Certification: TUV CE, ISO13485, ISO9001
Model Number: ITI Straumann Bone Level®
Minimum Order Quantity: 10pcs
Price: USD15-20/pc, included screw
Packaging Details: 1pcs/bag
Delivery Time: 3~5 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500,000pcs/month
Detail Information
Material: Ti 6AI-4V ELI (Grade 5) Warranty: 12 Months
After-sale Service: Online Technical Support Gingival: 1mm/2mm/3mm
Compatible: NC 3.3mm Properties: Implant Materials & Artificial Organs
Product Tolerance: +-0.01mm Screwdriver: Straumann-Torx
Diameter: 5mm Reference No.: 022.2321/022.2322/022.2323
REF No.: 022.2325/022.2326/022.2327
Highlight:

Straight Cementable Abutment

,

2mm Cementable Abutmen


Product Description

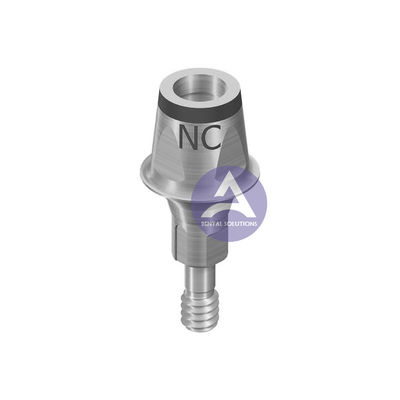

Straumann ITI BL NC Cementable Abutment - D 5mm, GH 1/2/3mm, AH 4/5.5mm



ITI Straumann Bone Level® Titanium Straight Cementable Abutment Compatible

NC 3.3mm, D:5mm, GH:1/2/3mm, AH:4/5.5mm



Desciption:

This staight abutment comes with a screw that takes a Straumann-Torx driver

Diameter: 5mm

Collor Height Option: 1mm / 2mm / 3mm

Abutment Height Option: 4mm / 5.5mm



Material:
Ti 6AI-4V ELI (Supply from Germany)



Reference Number:

022.2321

022.2322

022.2323

022.2325

022.2326

022.2327





Feature:

* Titanium interface abutment
* 1pc Screw Included

* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility

* Can production Custom interface


Approved by CE, ISO 9001, ISO 13485



Straumann ITI BL NC Cementable Abutmen GH 1mm 2mm 3mm 0

Straumann ITI BL NC Cementable Abutmen GH 1mm 2mm 3mm 1

Straumann ITI BL NC Cementable Abutmen GH 1mm 2mm 3mm 2

Implant Line
Bone Level Implants
Impression Level
Implant/Abutment Level
Abutment Type
Standard Abutment
Indication
Single Crown/Bridge (multi unit)
Fixation
Cement-retained
Material
Titanium
Angulation
Straight
Diameter
Ø 5.0 mm
Gingiva Height
1.0/2.0/3.0 mm
Angulation (°)
Connection Type
NC (Narrow CrossFit®)
Height
4mm/5.5 mm
Component
Abutments






















Points of ITI Straumann Bone level Straight Abutment:



Straumann ITI BL NC Cementable Abutmen GH 1mm 2mm 3mm 3

Fig. 7

Narrow connection (NC) Implant/abutment platform diameter abutments can be categorized in to four groups, anatomic, gold (UCLA), ceramic and "cementable". Anatomic, gold and ceramic abutments are intended to be selected and modified extra orally on a master model after a fixture level impression (direct, indirect).

"Cementable" abutments (Fig.7) are envisioned to be installed on to the implant and impressed with the abutment level impression technique, much like solid abutments for tissue level implants.



Cementable abutments are not cemented in to the implant as the name might suggest but screwed on to the implant like other abutments for bone level implants. Twelve different color coded "cementable" abutment versions are produced, combining two different emergence profiles (Fig.7, left) 3.5mm blue, 5.0mm yellow) and three collar heights (Fig.7, bottom row 1, 2, 3mm) with two abutment portion heights (Fig.7, right 4mm, 5.5mm). A color band etched on to the coronal portion of the abutment indicates the abutment portion height (4mm black, 5.5mm white).
