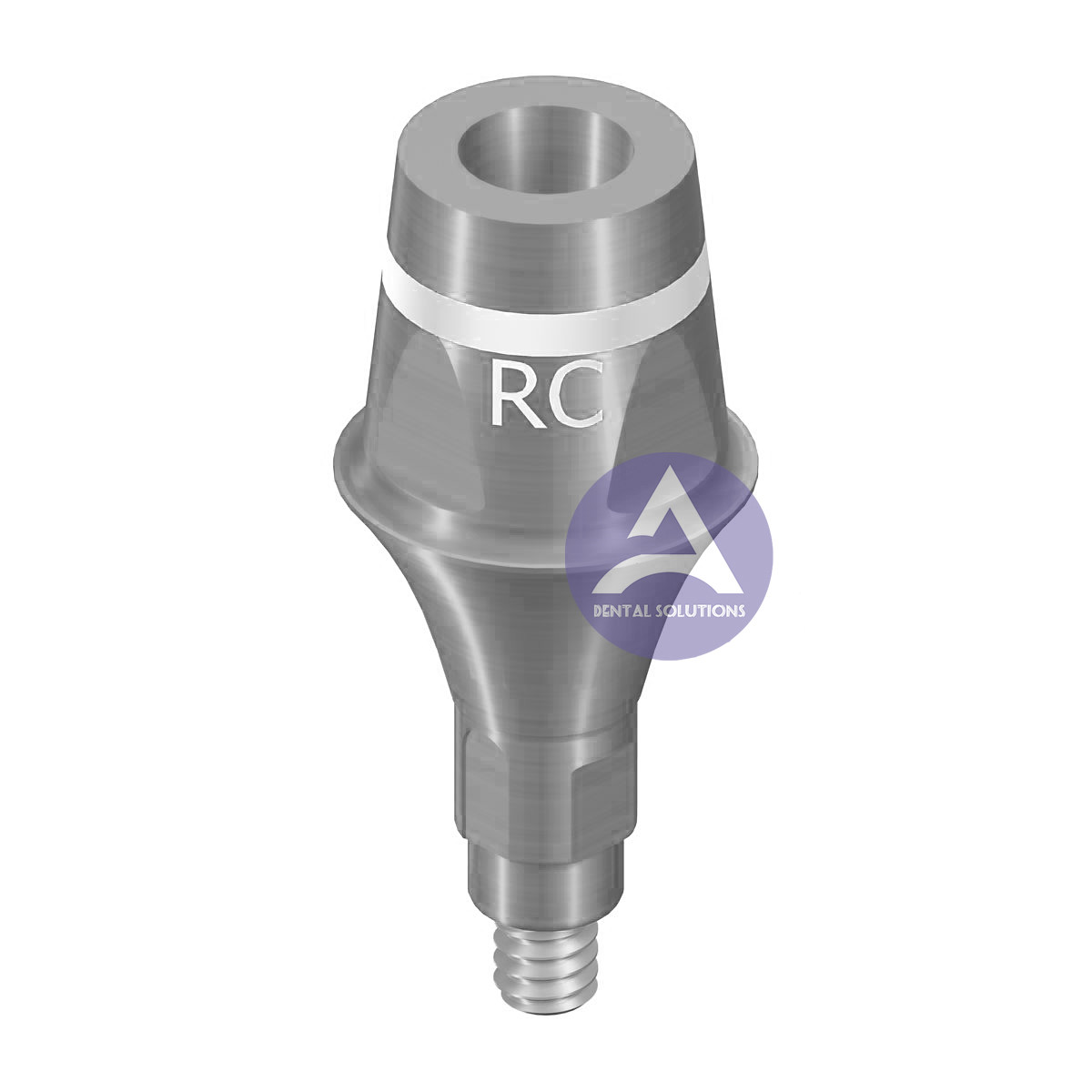

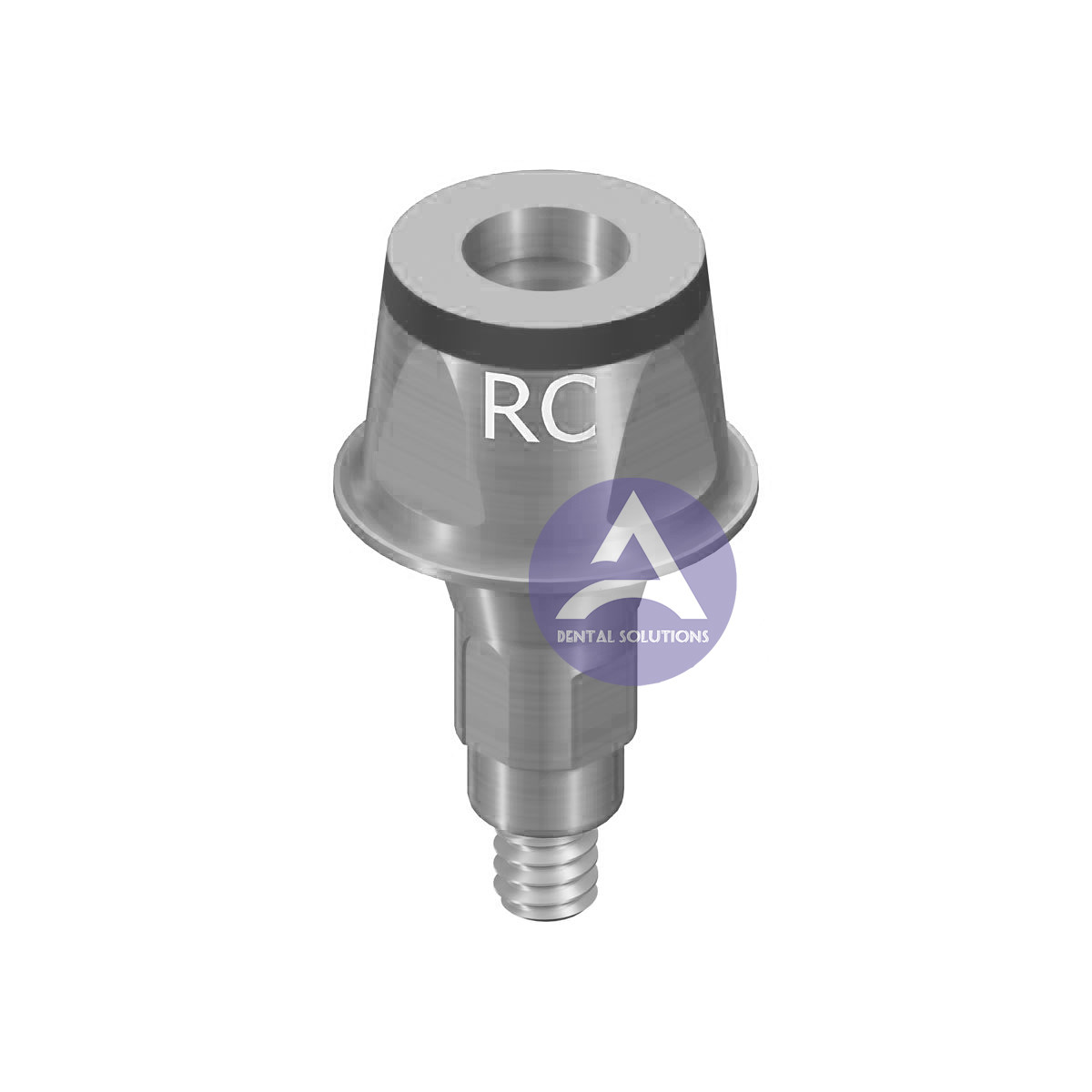

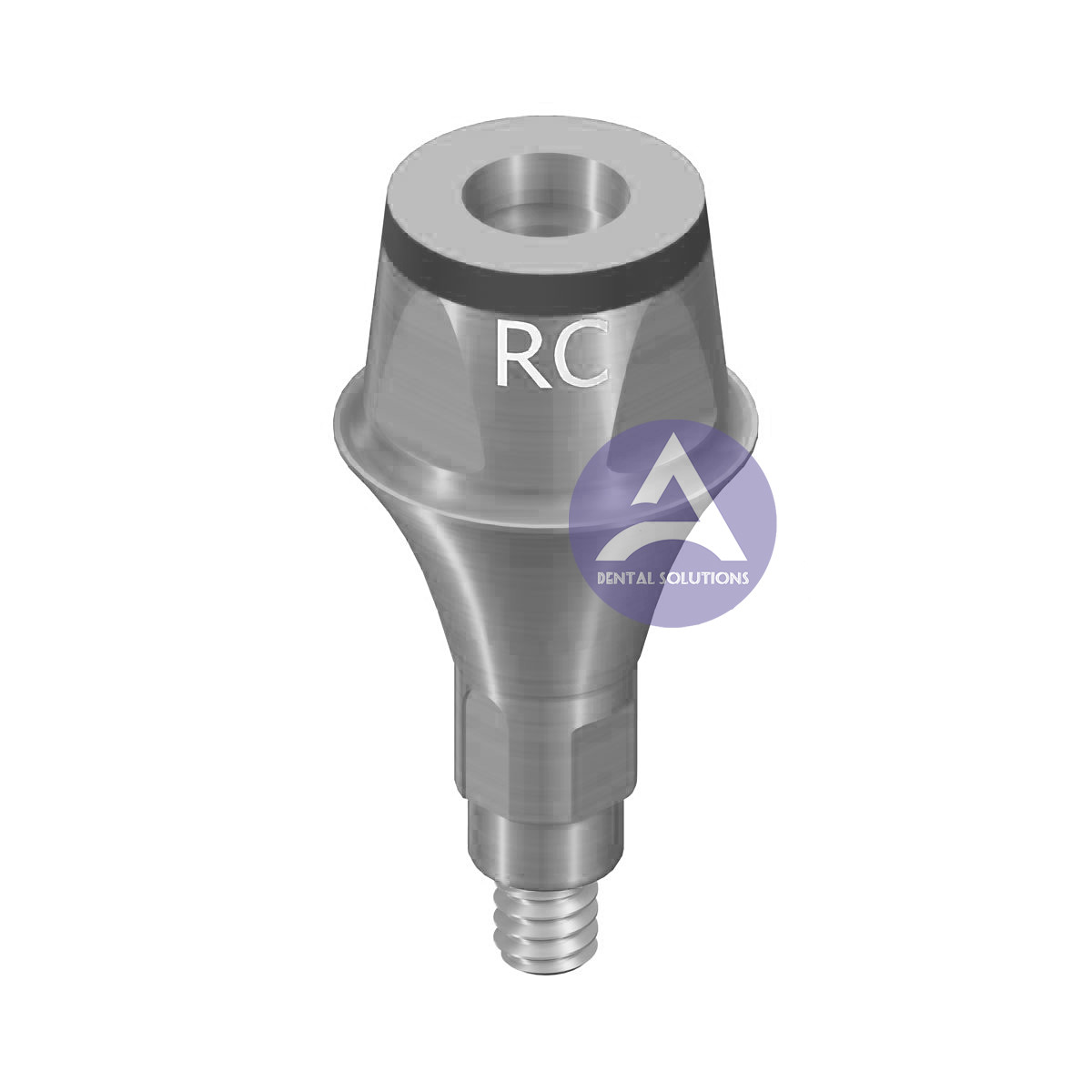

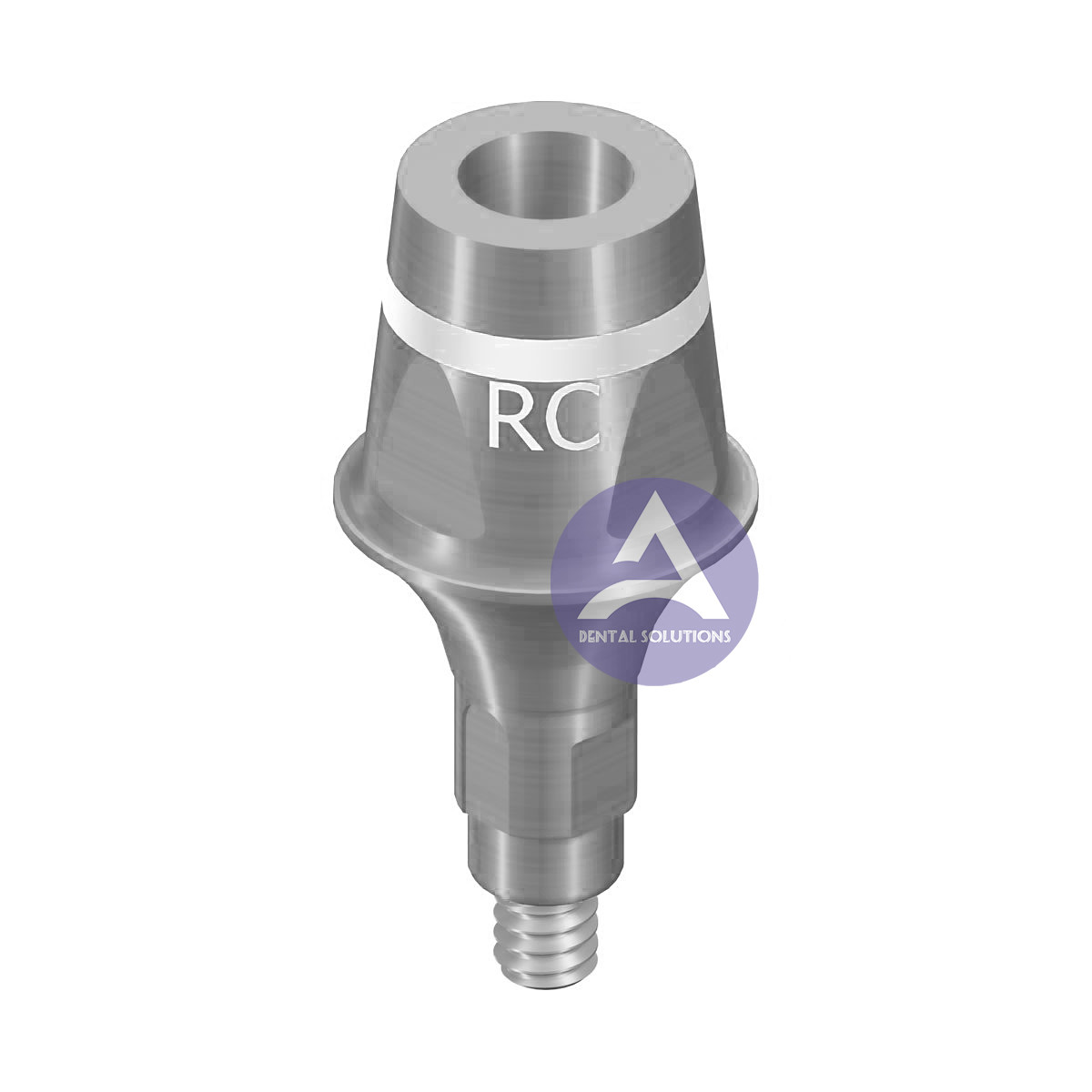

ITI Straumann Bone Level® Tooth Abutment Titanium Straight Cementable Abutment Compatible RC 4.1mm

Basic Information
Place of Origin: China
Brand Name: ANGELS
Certification: TUV CE, ISO13485, ISO9001
Model Number: ITI Straumann Bone Level®
Minimum Order Quantity: 10pcs
Price: USD15-20/pc, included screw
Packaging Details: 1pcs/bag
Delivery Time: 3~5 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500,000pcs/month
Detail Information
Material: Ti 6AI-4V ELI (Grade 5) Warranty: 12 Months
After-sale Service: Online Technical Support Gingival: 1mm/2mm/3mm
Compatible: RC Properties: Implant Materials & Artificial Organs
Product Tolerance: +-0.01mm Screwdriver: Straumann-Torx
Diameter: 6.5mm Reference No.: 022.4331/022.4332/022.4333
REF No.: 022.4335/022.4336/022.4337
Highlight:

Cementable Dental Implants Abutment

,

5.5mm Dental Implants Abutment

,

ISO13485 Cementable Abutment


Product Description

Straumann ITI BL NC Cementable Abutment - D 6.55mm, GH 1/2/3mm, AH 4/5.5mm



ITI Straumann Bone Level® Tooth Abutment Titanium Straight Cementable Abutment Compatible RC 4.1mm D:6.5mm, GH:1/2/3mm, AH:4/5.5mm



Desciption:

This staight abutment comes with a screw that takes a Straumann-Torx driver

Diameter: 6.5mm

Collor Height Option: 1mm / 2mm / 3mm

Abutment Height Option: 4mm / 5.5mm



Material:
Ti 6AI-4V ELI (Supply from Germany)



Reference Number:

022.4331

022.4332

022.4333

022.4335

022.4336

022.4337





Feature:

* Titanium interface abutment
* 1pc Screw Included

* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility

* Can production Custom interface


Approved by CE, ISO 9001, ISO 13485



ITI Straumann Bone Level® Tooth Abutment Titanium Straight Cementable Abutment Compatible  RC 4.1mm 0




















 ITI Straumann Bone Level® Tooth Abutment Titanium Straight Cementable Abutment Compatible  RC 4.1mm 1

ITI Straumann Bone Level® Tooth Abutment Titanium Straight Cementable Abutment Compatible  RC 4.1mm 2

Implant Line
Bone Level Implants
Impression Level
Implant/Abutment Level
Abutment Type
Standard Abutment
Indication
Single Crown/Bridge (multi unit)
Fixation
Cement-retained
Material
Titanium
Angulation
Straight
Diameter
Ø 6.5 mm
Gingiva Height
1.0/2.0/3.0 mm
Angulation (°)
Connection Type
RC (Regular CrossFit®)
Height
4mm/5.5 mm
Component
Abutments




























Points of ITI Straumann Bone level Straight Abutment:



ITI Straumann Bone Level® Tooth Abutment Titanium Straight Cementable Abutment Compatible  RC 4.1mm 3

Fig. 11

Regular connection (RC) platform diameter abutments can be categorized in to four groups, anatomic, gold (UCLA), ceramic and "cementable". Anatomic, gold and ceramic abutments are intended to be selected and modified extraorally on a master model after a fixture level impression (direct, indirect). "Cementable" abutments are envisaged to be installed on to the implant and impressed with the abutment level impression technique, much like solid abutments for tissue level implants.



Cementable abutments are not cemented in to the implant as the name might suggest but screwed on to the implant like other abutments for bone level implants. Twelve different color coded "cementable" abutment versions are produced, combining two different emergence profiles (Fig.11, left 5.0mm gray, 6.5mm brown) and three collar heights (Fig.11, bottom row 1, 2, 3mm) with two abutment portion heights (Fig.11, right, 4mm, 5.5mm). A color band etched on to the coronal portion of the abutment indicates the abutment portion height (4mm black, 5.5mm white).
