ITI RC Healing Abutment Conical Ø6.5mm H 2mm 4mm 6mm

Basic Information
Place of Origin: China
Brand Name: ANGELS
Certification: TUV CE, ISO13485, ISO9001
Model Number: ITI Straumann Bone Level®
Minimum Order Quantity: 10pcs
Price: USD6-9
Packaging Details: 1pcs/bag
Delivery Time: 3~5 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500,000pcs/month
Detail Information
Material: Ti 6AI-4V ELI (Grade 5) Warranty: 12 Months
After-sale Service: Online Technical Support Compatible: RC (Regular CrossFit®)
Gingival: 2mm/4mm/6mm Properties: Implant Materials & Artificial Organs
Product Tolerance: +-0.01mm Diameter: Ø 5mm / 6.5mm
REF No.: 024.4222S / 024.4224S / 024.4226S Ref No.: 024.4242S / 024.4244S / 024.4246S
High Light:

ITI RC Healing Abutment

,

Conical RC Healing Abutment

,

6mm RC Healing Abutment


Product Description

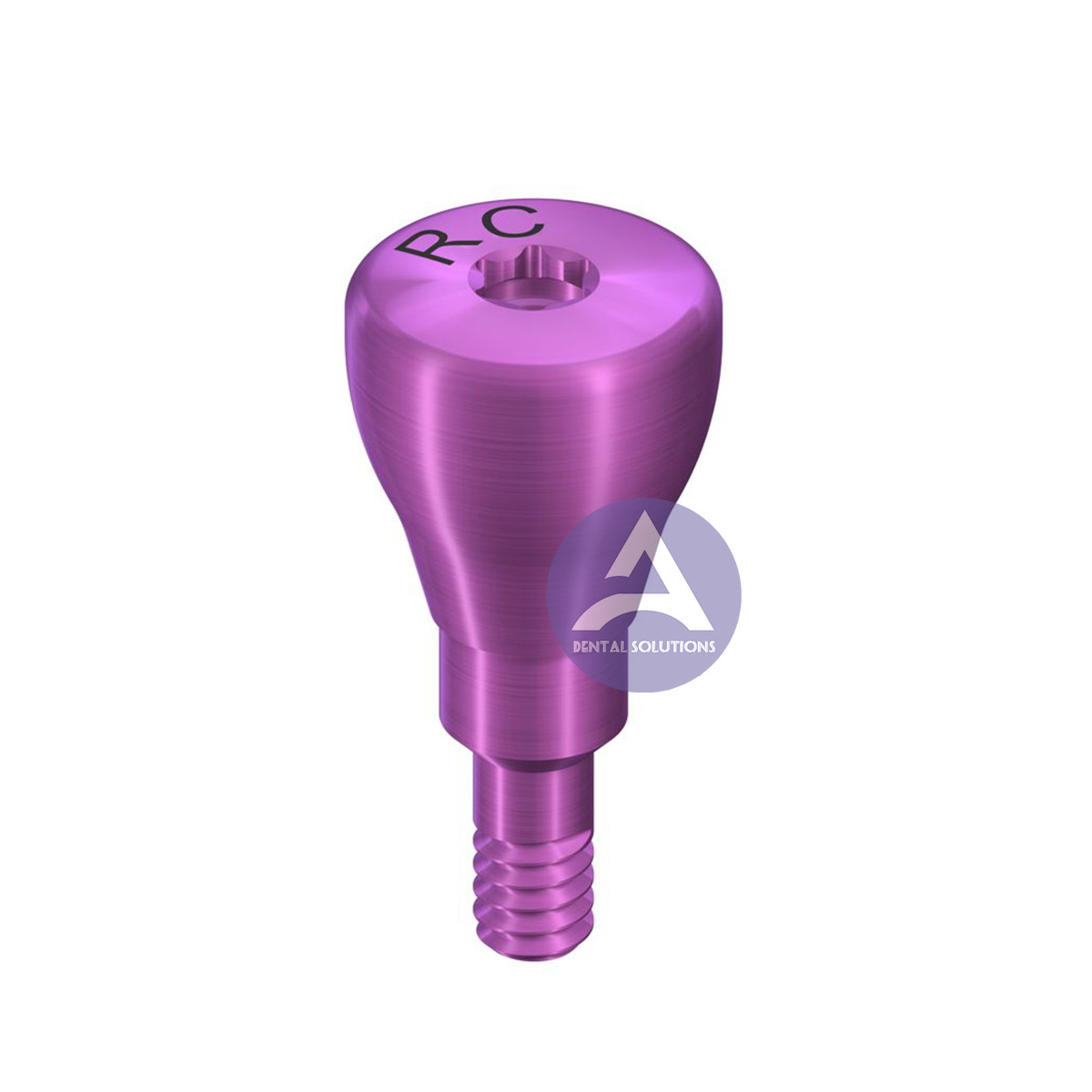

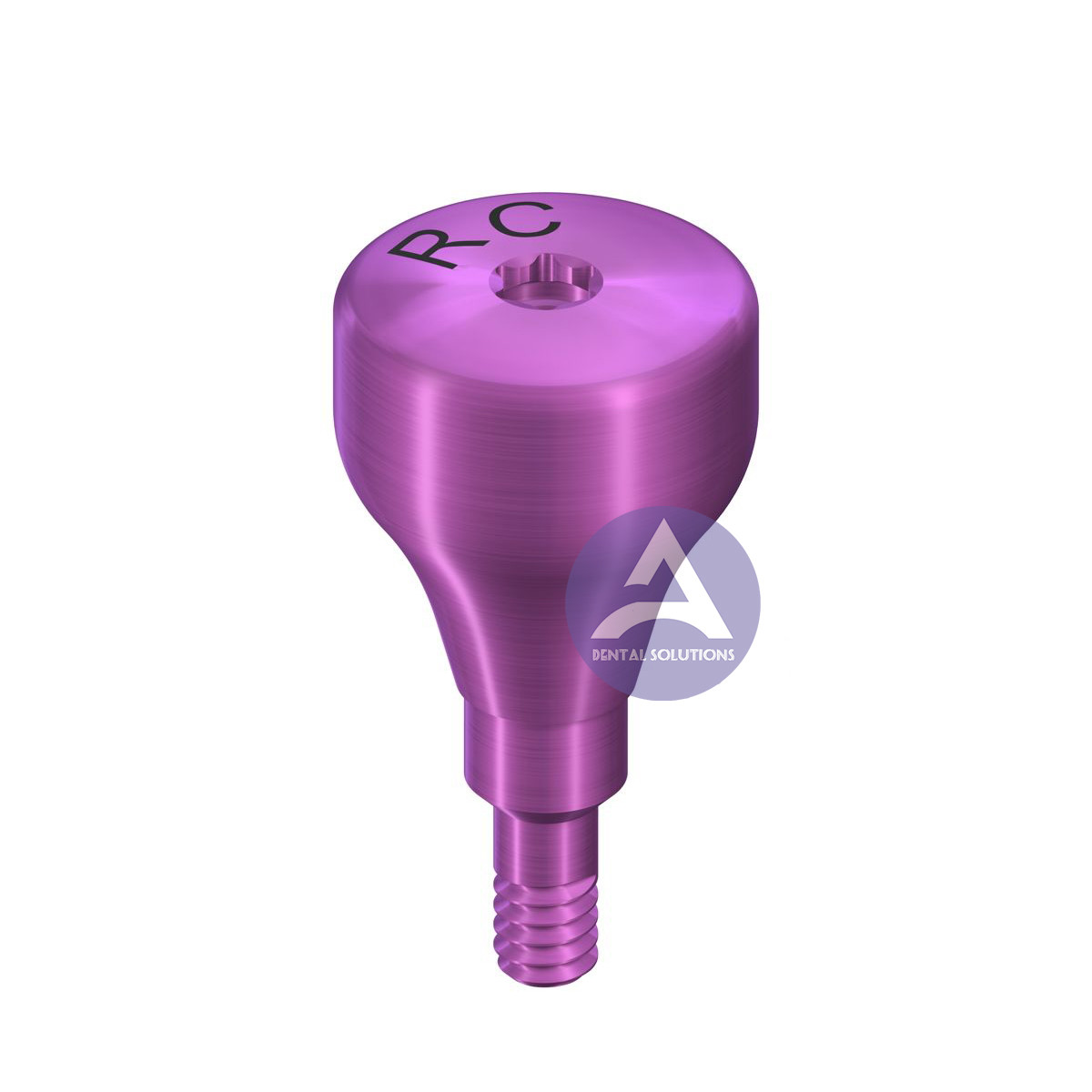

ITI RC Healing abutment - conical shape, Ø 5mm/6.5mm, H 2mm/4mm/6mm



ITI Straumann Bone Level® Implant Titanium Healing Cap Abutment Compatible

RC Ø 5mm/6.5mm, H: 2mm/4mm/6mm



Material:
Ti 6AI-4V ELI (Supply from Germany)



Reference:

024.4222S / 024.4224S / 024.4226S (Ø 5mm)

024.4242S / 024.4244S / 024.4246S (Ø 6.5mm)



Feature:

* Titanium interface abutment

* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility

* Can production Custom Gingival Heights



ITI RC Healing Abutment Conical Ø6.5mm H 2mm 4mm 6mm 0





ITI RC Healing Abutment Conical Ø6.5mm H 2mm 4mm 6mm 1

ITI RC Healing Abutment Conical Ø6.5mm H 2mm 4mm 6mm 2

ITI RC Healing Abutment Conical Ø6.5mm H 2mm 4mm 6mm 3

ITI RC Healing Abutment Conical Ø6.5mm H 2mm 4mm 6mm 4



Connection Type
RC (Regular CrossFit®)
Height
2.0mm / 4.0mm / 6.0 mm
Diameter
Ø 5mm / 6.5 mm
Shape
Conical
Implant Platform
Regular CrossFit® Ø 4.1 mm
Material
Titanium
Implant Line
Bone Level Implants
Implant Category
Healing Cap, Healing Abutment
Torque
Hand-tight















Points of ITI Straumann Bone Level Healing Cap:








ITI RC Healing Abutment Conical Ø6.5mm H 2mm 4mm 6mm 5

Fig. 5

Nine different healing abutments are manufactured for regular connection (RC) implant/abutment platform diameter implants. Two cone shaped emergence profiles of 4.5mm (Fig.5 top row) and 6mm (Fig.5 bottom row) in three heights (2, 4, 6mm) each. Two bottle neck geometry abutments (Fig.6) in heights of 4mm and 6mm. The narrow end of the bottle neck is positioned towards the gingival crest and results in a under dimensioned emergence profile of the soft tissue.


ITI RC Healing Abutment Conical Ø6.5mm H 2mm 4mm 6mm 6

Fig. 6

This feature is intended to aide in the creation of a papilla at the time of final abutment installation. The larger emergence profile of the final abutment will displace the soft tissue in all directions and may necessitate a releasing incision of the tissue at the time of delivery.

One acrylic body healing abutment with a diameter of 7mm to create a custom emergence profile is also part of the healing abutment offering from Straumann®. All RC abutments are color coded purple in compliance with the platform identification color scheme of bone level implants. The same Torx (SCS) driver may be utilized for all platform diameter components.
