| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | Nobel Biocare Active® |
| Minimum Order Quantity: | 10Pcs |
| Price: | USD8~12/pc, included screw |
| Packaging Details: | 1pcs/bag |
| Delivery Time: | 3~5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Ti 6AI-4V ELI (Grade 5) | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Size: | NP Ø 5 |
| Properties: | Implant Materials & Artificial Organs | Product Tolerance: | +-0.01mm |
| Length: | 13mm | REF No.: | 36539 |
| High Light: | Ti 6AI-4V ELI Dental Implants Abutment,Artificial Organs Dental Implants Abutment,5×13Mm Dental Implants Abutment |
||

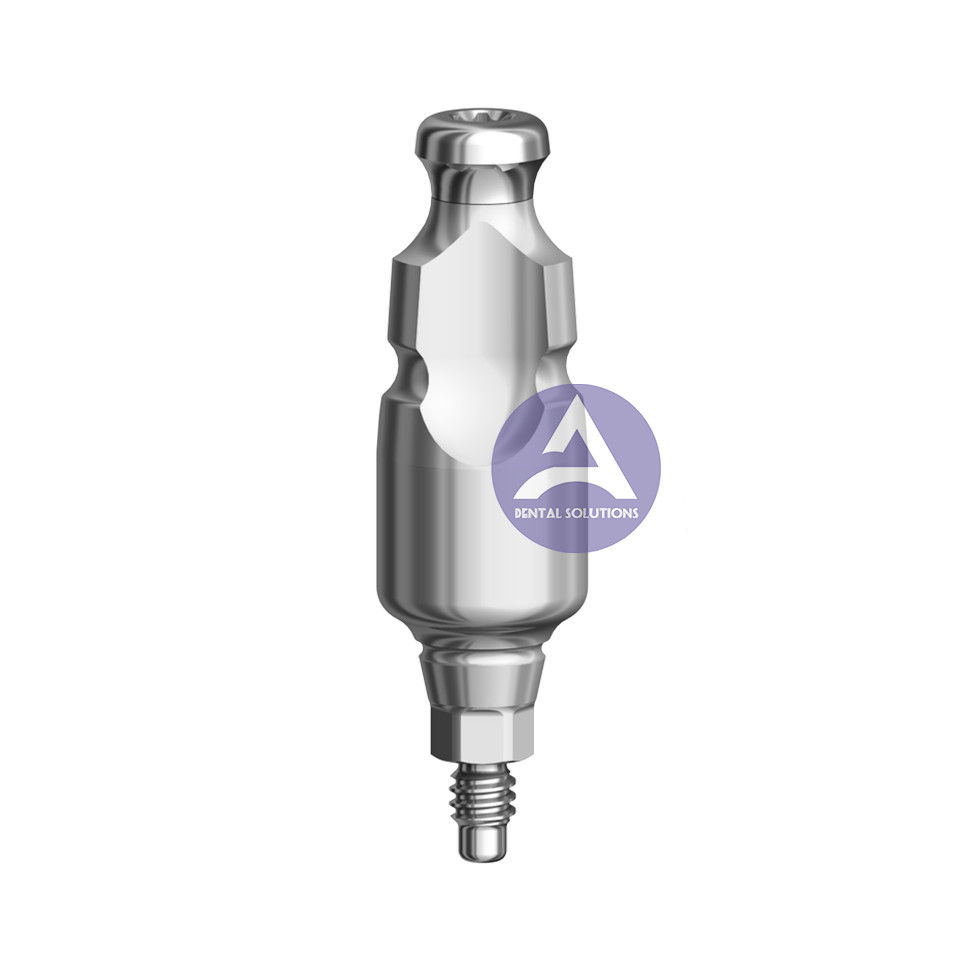

Nobel Biocare Active Impression Coping Closed Tray Conical
Connection NP Ø 5 × 13 mm
Material:
Ti 6AI-4V ELI (Supply from Germany)
Reference Number:
36539
Feature:
- Titanium interface abutment
- Precision machined up to ± 5µm
- Combination of high fatigue strength
- Superior level of biocompatibility
- Exterior retentions for more cementation bonding
Approved by CE, ISO 9001, ISO 13485
| Length | 13 mm |
|---|---|
| Implant Platform | Narrow Platform (NP) |
| Diameter | 5 mm |
| Material | Alloy |
| Indication | Single-unit |
| Connection Type | Internal Conical Connection |
| Open or Closed Tray | Closed Tray |
| Works with | NobelActive, NobelActive TiUltra, NobelParallel CC, NobelParallel CC TiUltra, NobelReplace CC, NobelReplace CC PMC |
| Purpose |
CAD/CAM prosthetic, Pre-fab prosthetic |
NobelActive™
Fig. 1
Indirect impression copings designed for the closed tray impression technique are produced in two emergence profiles for NP platform implants (Fig.1) and three emergence profiles for RP implants (Fig.2). NP impression copings are produced in one height of 13mm while RP impression copings are available in two heights of 13m (Fig.2, top row)and a low profile version (Fig.2, bottom row) of 9mm.
Emergence profiles for NP impression copings are machined in 3.6 and 5.0mm. RP impression copings are
Fig. 2

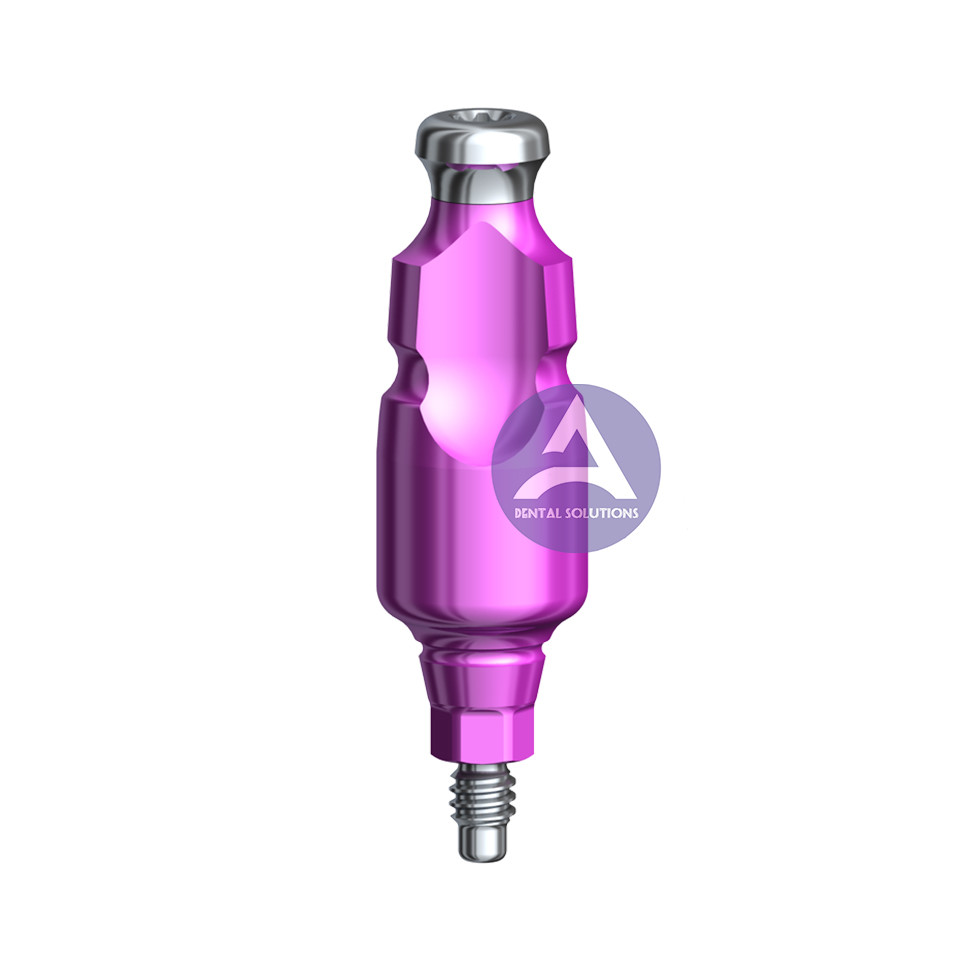

offered in three emergence profiles of 3.6, 5.0 and 6.0mm Early production versions were produced without color coding for identification but Nobel Biocare™ has started to color code some of the impression copings. The NP (3.5mm) platform would be represented through the color fuchsia and RP/WP (4.3/4.9mm) impression copings will be yellow in color. A Unigrip™ driver may be used to service the fixation screw for impression copings.
