Place of Origin: | China |
---|---|
Brand Name: | ANGELS |
Certification: | TUV CE, ISO13485, ISO9001 |
Model Number: | Nobel Biocare® |
Minimum Order Quantity: | 10pcs |
Price: | USD15-20/pc, included screw |
Packaging Details: | 1pcs/bag |
Delivery Time: | 3~5 days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 500,000pcs/month |
Material: | Ti 6AI-4V ELI (Grade 5) | Warranty: | 12 Months |
---|---|---|---|
After-sale Service: | Online Technical Support | Gingival: | 1.5mm/2.5mm/3.5mm |
Compatible: | Narrow Platform (NP) | Properties: | Implant Materials & Artificial Organs |
Product Tolerance: | +-0.01mm | Screwdriver: | N-Torx |
Works With: | NobelActive, NobelActive TiUltra, NobelParallel CC | REF No-1: | 36611、38878、300171 |
REF No-2: | 36613、38881、300174 | REF No-3: | 36624、38884、300177 |
Highlight: | ISO 9001 Multi Unit Implant Abutment,NP 1.5mm Multi Unit Implant Abutment,1pc Screw Multi Unit Implant Abutment |

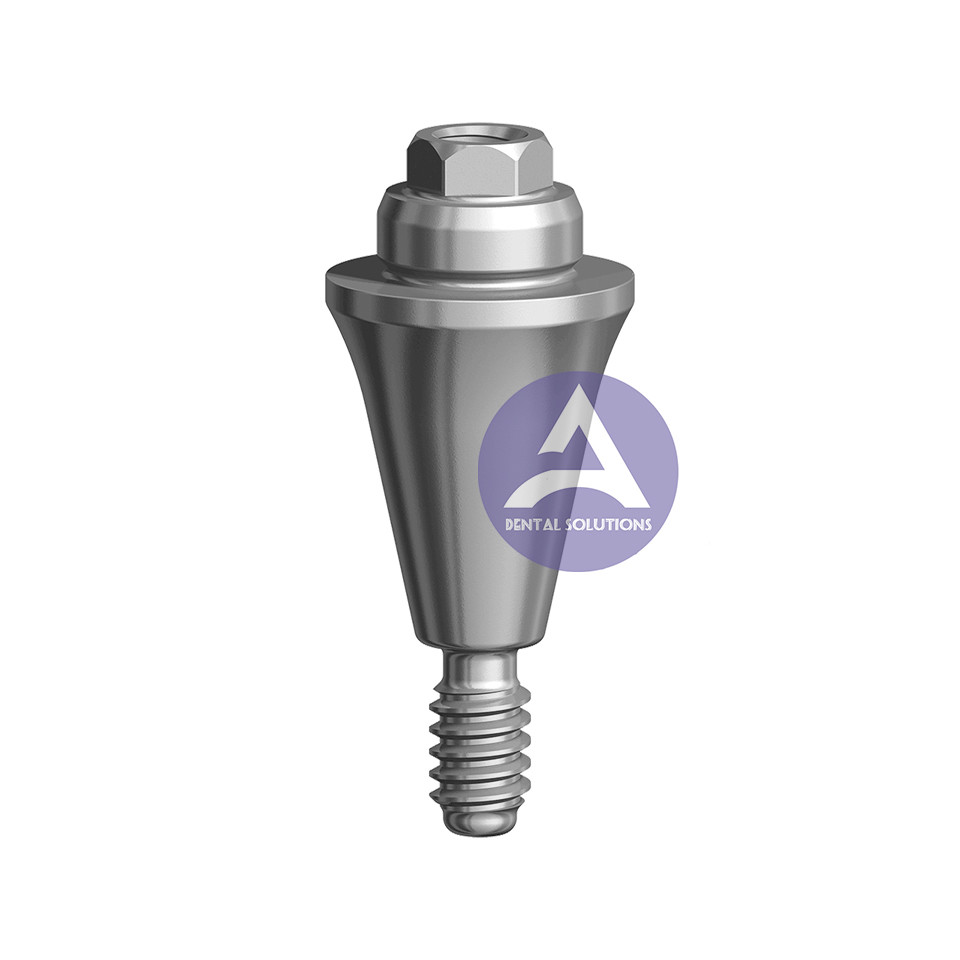

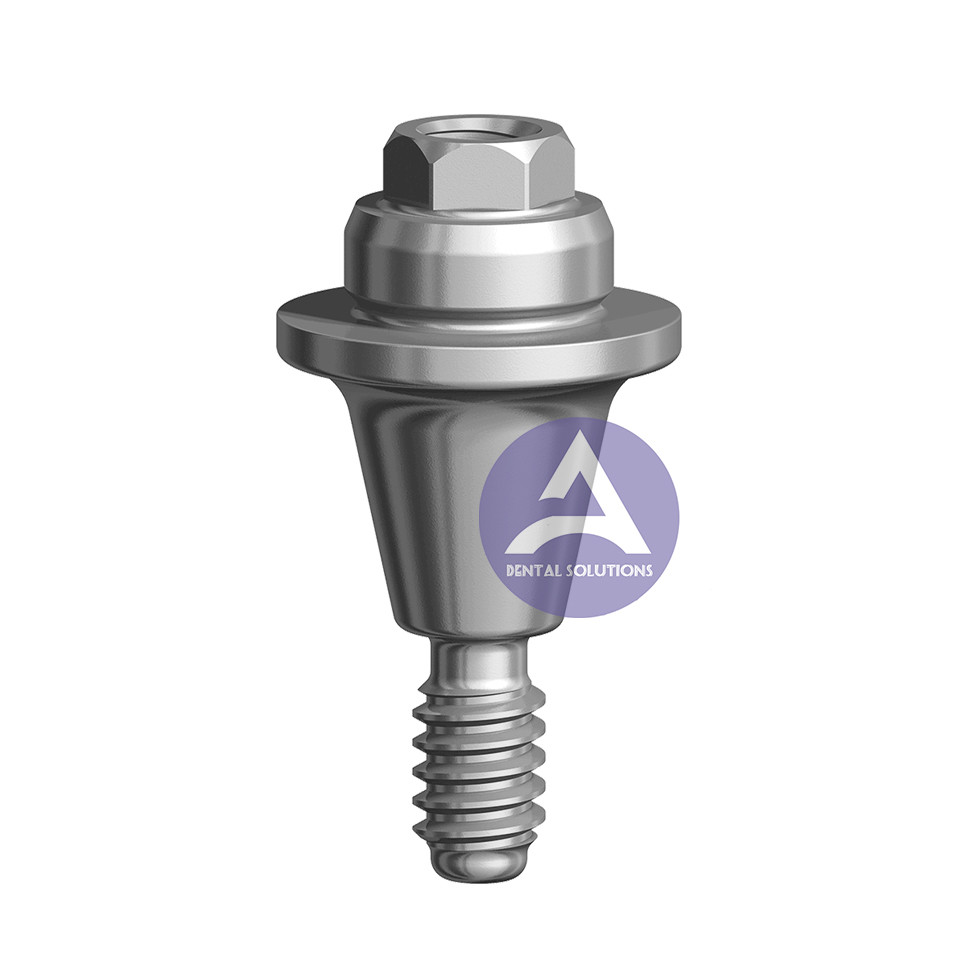

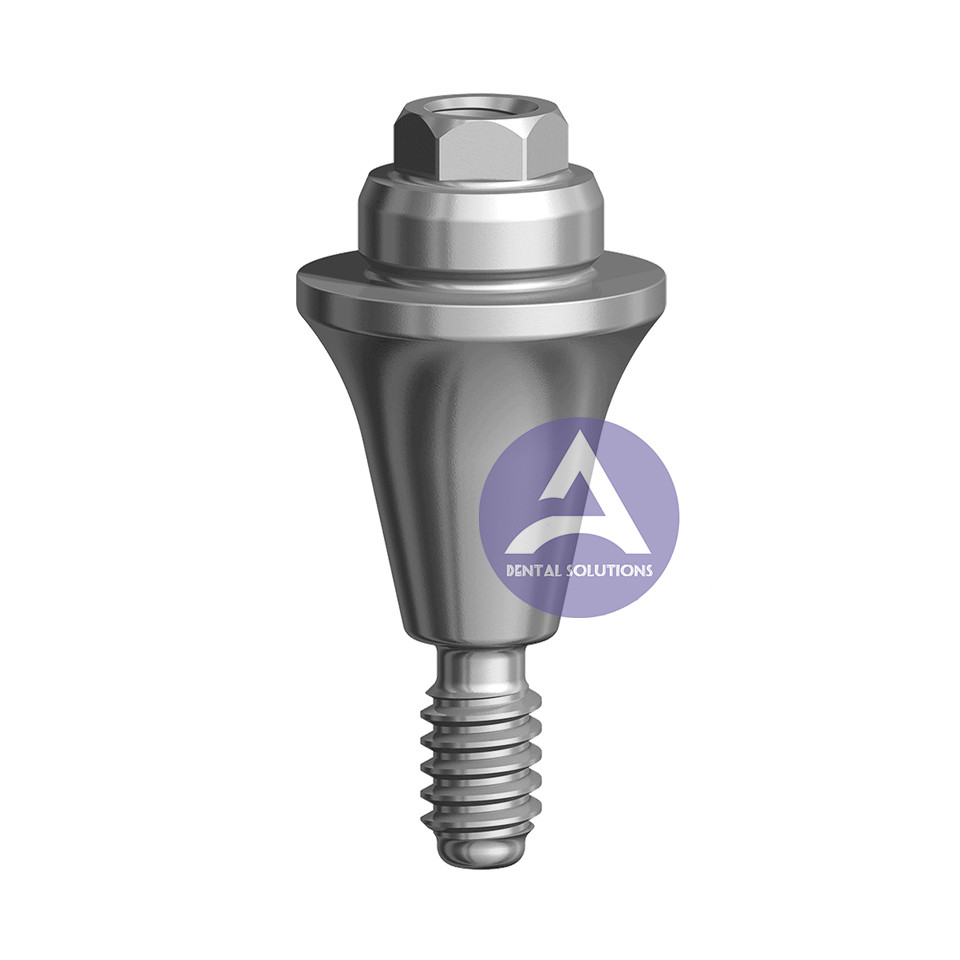

Nobel Biocare Multi-unit Straight Abutment Xeal Conical
Connection NP 1.5/2.5/3.5 mm
Desciption:
This staight abutment comes with a screw that takes a Nobel-Torx driver
Material:
Ti 6AI-4V ELI (Supply from Germany)
Reference No.
NP, GH=1.5mm, 36611,38878,300171
NP, GH=2.5mm, 36613,38881,300174
NP, GH=3.5mm, 36624,38884,300177
Feature:
* Titanium interface abutment
* 1pc Screw Included
* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility
* Can production Custom interface
Approved by CE, ISO 9001, ISO 13485
Engagement | Engaging |
---|---|
Abutment Angulation | Straight |
Connection Type | Internal Conical Connection |
Material | Titanium |
Abutment Collar Height | 1.5 / 2.5 / 3.5 mm |
Indication | Full-Arch, Multiple-Unit |
Restoration | Screw-retained |
Works with | NobelActive, NobelActive TiUltra, NobelParallel CC, NobelParallel CC TiUltra, NobelReplace CC, NobelReplace CC PMC, NobelReplace CC TiUltra |
Surface | Xeal |
Implant Platform | Narrow Platform (NP) |
NobelActive™
Fig. 1
NobelActive™ implants (Fig.1) have a surface treatment from the apex of the implant to the edge of the implant/abutment interface. The slightly tapered body geometry is machined with progressively deeper threads towards the apical and a secondary groove at the edge of the more coronal threads. A faint table (0.25mm) between the actual implant/abutment interface and the outer edge of the implant may be unused to function as a platform switching feature or seating surface of prosthetic components, depending on the type of final restoration. Implants are machined with a internal hexagon functioning as the indexing feature. Four implant body diameters of 3.0, 3.5, 4.3 and 4.9mm in six lengths (8.5, 10, 11.5, 13, 15, 18) are offered in this product group. 3.0mm implants are not produced in lengths of 8.5 and 18mm. Although the implant manufacturers stated length is not the actual length of the implant. Each implant is 0.5mm shorter than advertised.
Fig. 2
The indexing feature dimensions are implant body diameter appurtenant, meaning that the indexing feature (Fig.2) is machined differently in regards to the implant body diameter. 3.0mm diameter implants have a 2.5mm diameter indexing feature while 3.5 diameter implants have a 3mm diameter indexing feature. 4.3 and 4.9 diameter implants share the same indexing feature dimension of 3.4mm. Each indexing feature dimension is color coded for easy identification fuchsia (3.5mm body diameter) or yellow/blue (4.3 and 4.9mm body diameter). Although the color coding is only evident on the product packaging and the implants are packaged without cover screw.
