Astra Tech OsseoSpeed® 14mm Yenadent Titanium Premill Blank Yellow 3.0 / AQUA3.5-4.0mm / LILAC 4.5-5.0

Basic Information
Place of Origin: China
Brand Name: ANGELS
Certification: TUV CE, ISO13485, ISO9001
Model Number: Astra Tech OsseoSpeed®
Minimum Order Quantity: 10pcs
Price: USD8~12/pcs (included screw, 10mm)
Packaging Details: 1pcs/bag
Delivery Time: 3~5 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500,000pcs/month
Detail Information
Material: Ti 6AI-4V ELI (Grade 5) Warranty: 12 Months
After-sale Service: Online Technical Support Size: 10mm, 14mm
Compatible: NP(3.0) Yellow/ RP(3.5/4.0) AQUA/ WP(4.5/5.0) LILAC Connection: Engaging
Properties: Implant Materials & Artificial Organs Product Tolerance: +-0.01mm
Holder: Yenadent
High Light:

14mm Pre Milled Abutment

,

Titanium Pre Milled Abutment


Product Description

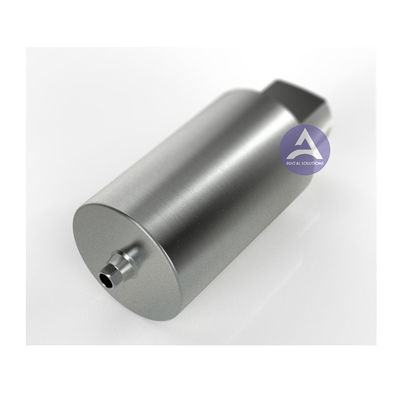

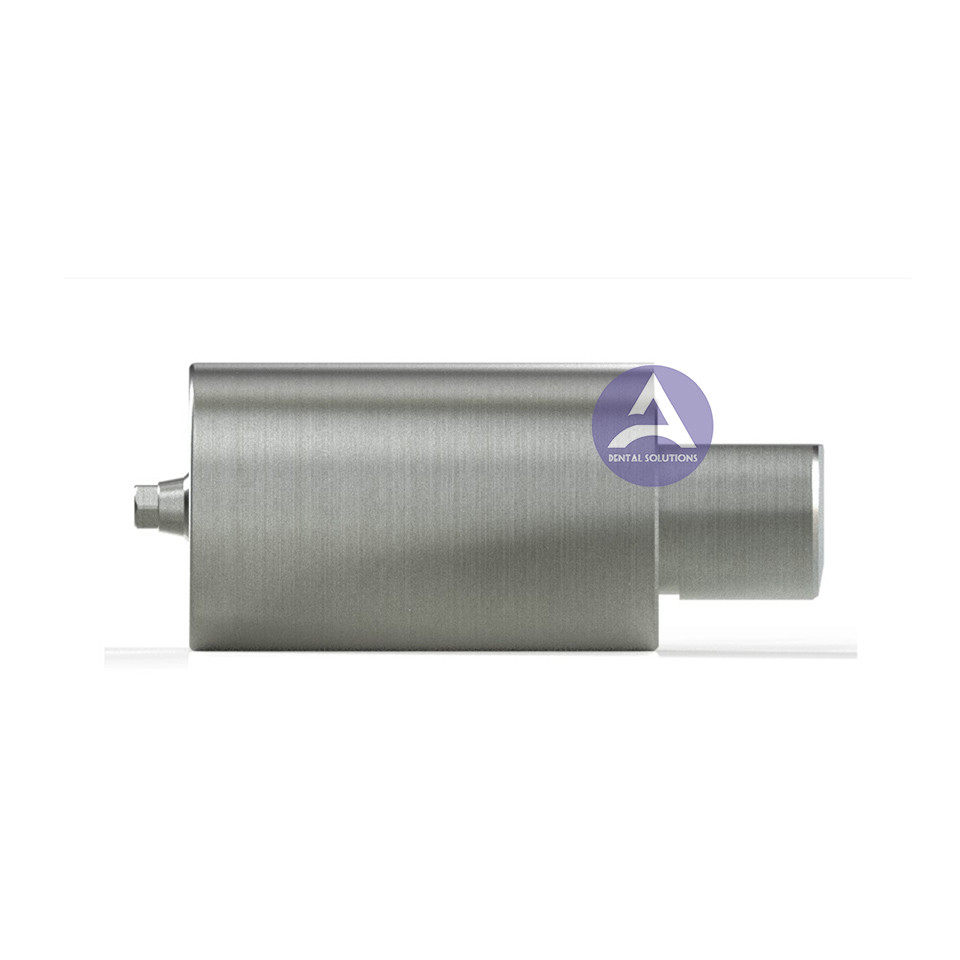

Astra Tech OsseoSpeed® 14mm Implant Internal Titanium Yenadent Holder Premill Blank 10mm Engaging

Yellow(NP 3.0mm) / AQUA(RP 3.5/4.0mm) / LILAC(WP 4.5/5.0mm)



Material:
Ti 6AI-4V ELI (Supply from Germany)



Size:

Yellow 3.0

Aqua 3.5-4.0

Lilac 4.5-5.0



Feature:

* Simply efficiency
* Precision machined up to ± 5µm
* Benefit from a faster and controlled turnaround time
* Different diameter available of 10mm, 14mm



Pre-milled Abutment Blanks, you can now produce titanium customised abutments with your milling equipment.
Boost your efficiency by using your milling machines and benefit from all major implant connections.



Approved by CE, ISO 9001, ISO 13485

Astra Tech OsseoSpeed® 14mm Yenadent Titanium Premill Blank Yellow 3.0 / AQUA3.5-4.0mm / LILAC 4.5-5.0 0

Astra Tech OsseoSpeed® 14mm Yenadent Titanium Premill Blank Yellow 3.0 / AQUA3.5-4.0mm / LILAC 4.5-5.0 1Astra Tech OsseoSpeed® 14mm Yenadent Titanium Premill Blank Yellow 3.0 / AQUA3.5-4.0mm / LILAC 4.5-5.0 2Astra Tech OsseoSpeed® 14mm Yenadent Titanium Premill Blank Yellow 3.0 / AQUA3.5-4.0mm / LILAC 4.5-5.0 3



Astra Tech OsseoSpeed® 14mm Yenadent Titanium Premill Blank Yellow 3.0 / AQUA3.5-4.0mm / LILAC 4.5-5.0 4

* We also can provide another 3 type of premill as above picture shown. Welcome to further inquire. Thanks.





Points of Astra OsseoSpeed™ Dental Implant:



Astra Tech OsseoSpeed® 14mm Yenadent Titanium Premill Blank Yellow 3.0 / AQUA3.5-4.0mm / LILAC 4.5-5.0 5

Fig.5

Profile implants are produced with the same grade 4 titanium and surface texture (Fig.4) as standard OsseoSpeed™ implants. The coronal portion of the Profile implant is cut at a 30 ° angle (Fig.5) half way through the diameter of the implant. This feature may allow placement of the implant in to a sloping bony crest without bone grafting or a portion of the implant above or below the bone at the time of implant placement. The implant/abutment interface connection is constructed as a internal, double hex conical connection (Fig.2), allowing 6 different positions for final abutments and machined to the same dimensions regardless of the implant diameter..


Astra Tech OsseoSpeed® 14mm Yenadent Titanium Premill Blank Yellow 3.0 / AQUA3.5-4.0mm / LILAC 4.5-5.0 6

Fig.6

TX S Profile implants (Fig.6) are machined with a parallel geometry and a tapered apex. Two outside thread patterns are machined on to the implant body consisting of micro threads at the coronal portion and a regular thread pattern on the main portion of the implant. One implant diameter of 5.0mm, available in lengths of 9, 11, 13, 15 and 17mm comprises the TX S Profile product group.
