Place of Origin: | China |
---|---|
Brand Name: | ANGELS |
Certification: | TUV CE, ISO13485, ISO9001 |
Model Number: | ITI Straumann Bone Level® |
Minimum Order Quantity: | 1PC |
Price: | USD5~8 |
Packaging Details: | 1pcs/bag |
Delivery Time: | 3-5 days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 500,000pcs/month |
Material: | Stainless Steel 303F / GR5 | Warranty: | 12 Months |
---|---|---|---|
After-sale Service: | Online Technical Support | Compatible: | NC 3.3mm/ RC 4.1 |
Properties: | Implant Materials & Artificial Organs | Product Tolerance: | +-0.01mm |
REF NO.: | 025.2101 / 025.4101 | ||
Highlight: | 3.3mm Straumann Dental Analog,RC 4.1 Straumann Implant Analog,NC 3.3mm Dental Implant Analog |

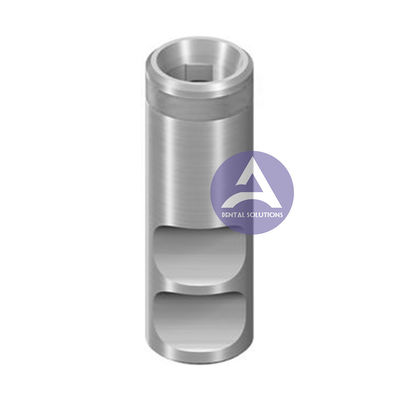

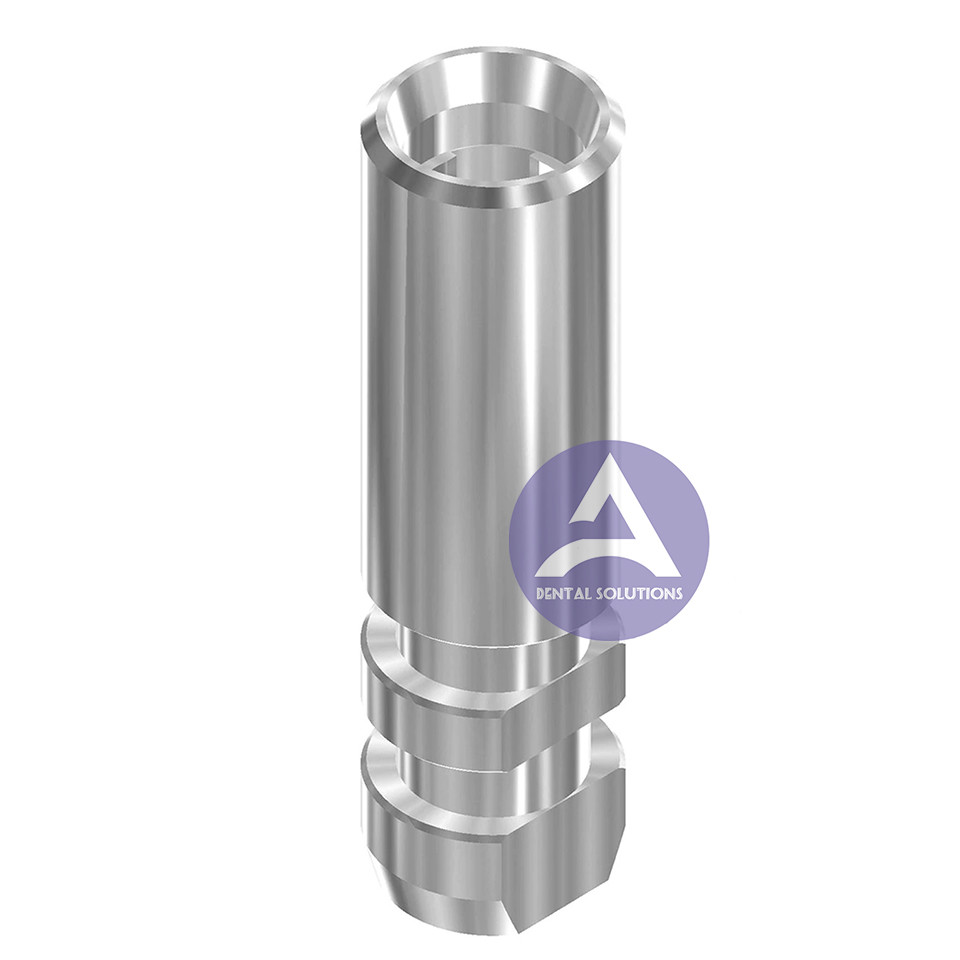

Titanium NC 3.3mm ITI Straumann Bone Level Implant Analog
ITI Straumann Bone Level® Dental Impalnt Analog Compatible with
NC 3.3mm/ RC 4.1
Material:
Stainless Steel 303F / Titanium GR5
Reference Number:
025.2101
025.4101
Feature:
* Reproducibility
* Precision machined up to ± 5µm
* Position indicator & Level stopper for 3D print & Stone model
* Anti-rotate design
Head that reproduces the implant system joint.
Position indicator and level stopper support precise positioning of removable gingiva mask.
Gentle retaining area to easily position the soft gum in the working model.
Effective circuit and self-locking cross retainers that, inside the plaster, provide extraordinary embedding even in cases of abutment drilling on model.
Its discrete size means that analogues can be easily fitted, despite the implants being close together or not parallel.
Approved by CE, ISO 9001, ISO 13485
Points of ITI Straumann Bone Level Analogue:
Fig. 3

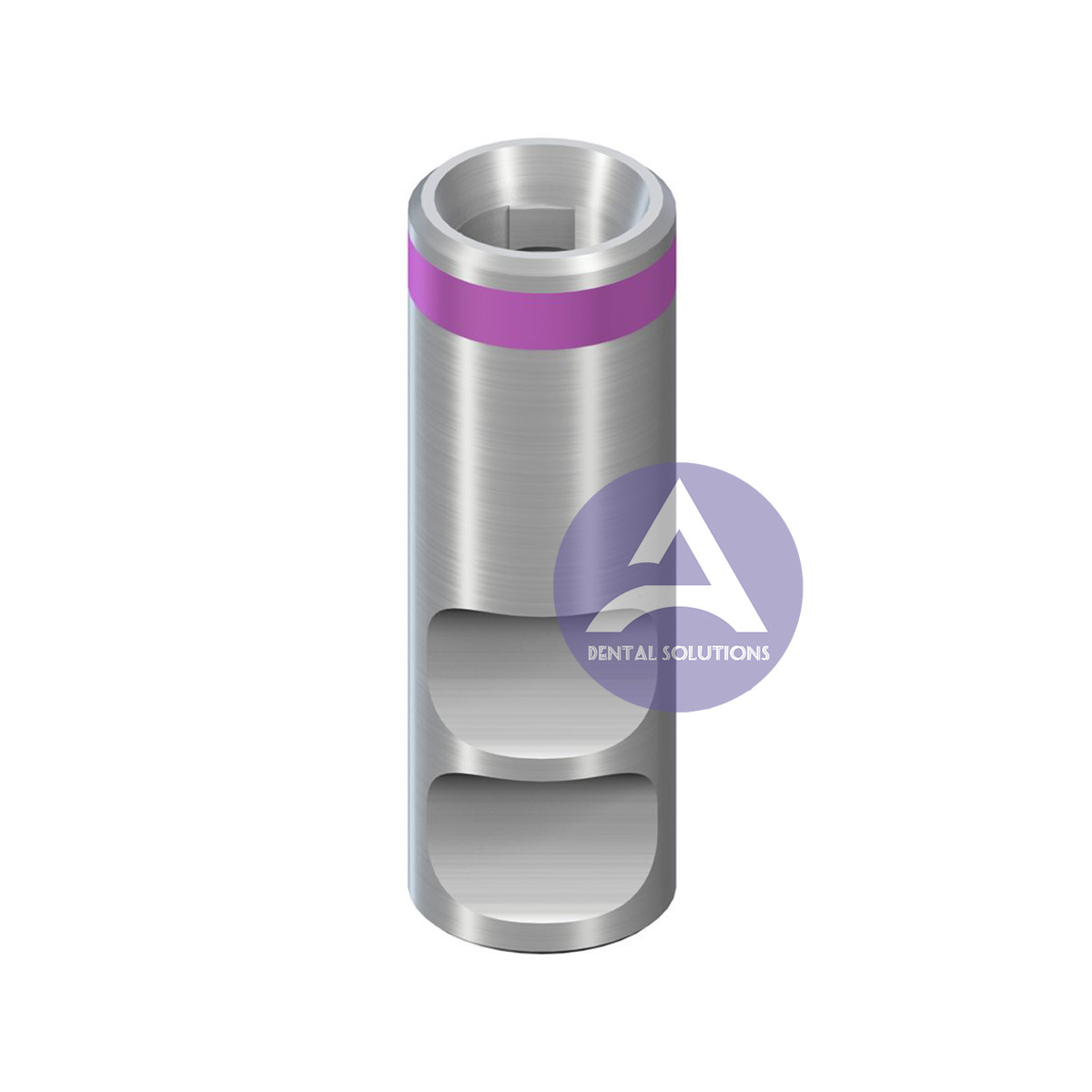

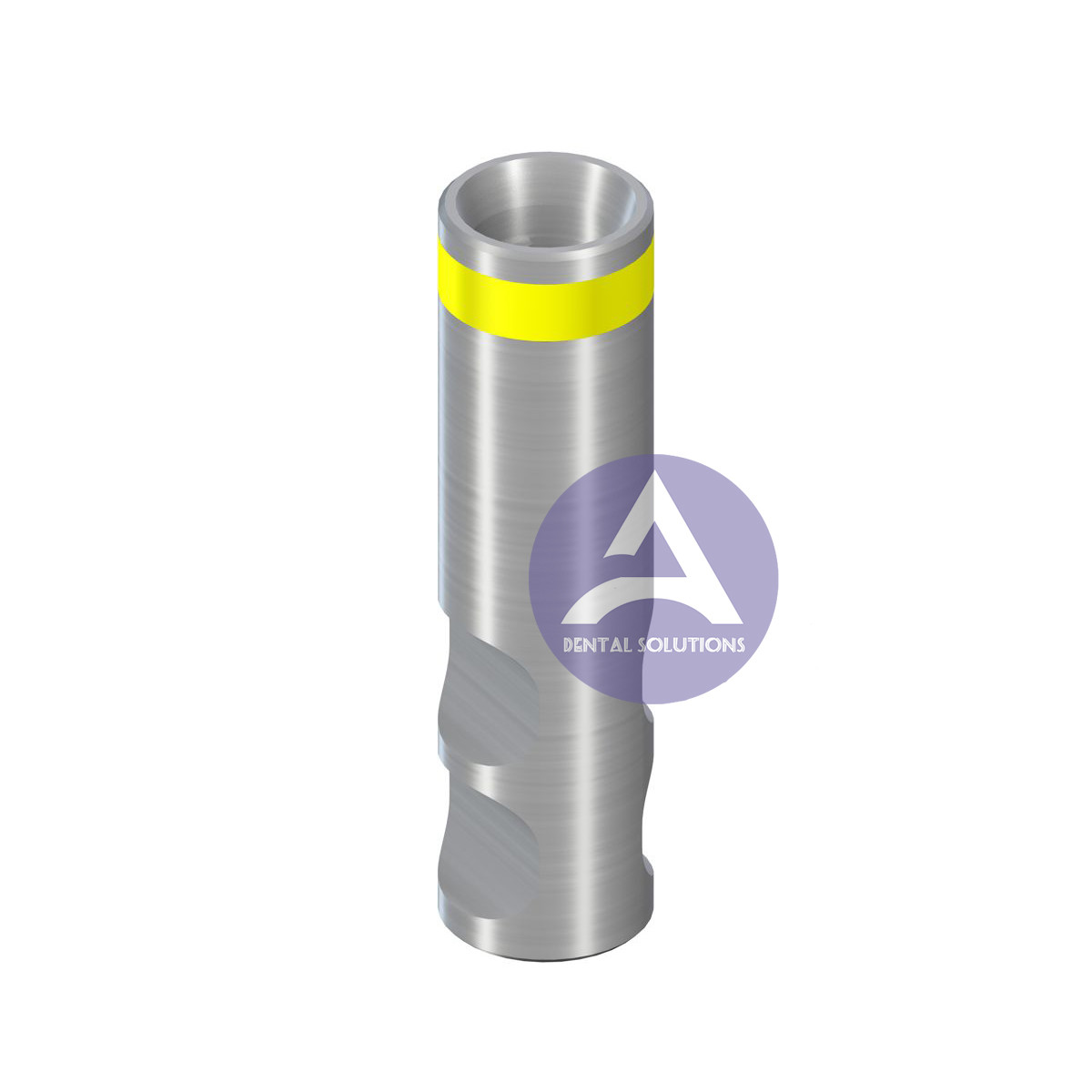

Two color coded fixture level analogs (Fig.3) are presented delineating the two platform diameters (NC, RC). A yellow band denotes the NC platform and a purple band defines the RC implant platform.
Abutment level analogs (Fig.4) are manufactured in four different versions for each platform diameter corresponding to the "cementable" abutment emergence profile (3.5, 5.0, 6.5mm) and abutment height (4mm, 5.5mm). All abutment level analogs are color coded in accordance to the previously mentioned possible dimension combinations. NC analogs (Fig.4 top row)are coded
Fig. 4
NC analogs (Fig.4 top row) are coded blue (3.5mm) or yellow (5mm) to signify the emergence profile and either a black or white color band to identify the abutment height (4mm, 5mm). RC analogs (Fig.4 bottom row) are coded yellow (5mm) or brown (6.5mm) to signify the emergence profile and either a black or white color band to identify the abutment height (4mm, 5mm). To further differentiate the analogs, each NC analog is inscribed with the letters "NC" and RC analogs are inscribed with the letters "RC".
