Place of Origin: | China |
---|---|
Brand Name: | ANGELS |
Certification: | TUV CE, ISO13485, ISO9001 |
Model Number: | Astra Tech Implant EV® |
Minimum Order Quantity: | 1PC |
Price: | USD5~8 |
Packaging Details: | 1pcs/bag |
Delivery Time: | 3-5 days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 500,000pcs/month |
Material: | Stainless Steel 303F / GR5 | Warranty: | 12 Months |
---|---|---|---|
After-sale Service: | Online Technical Support | Compatible: | 3.6mm (Purple)/ 4.2mm (Yellow)/ 4.8mm (Blue) |
Properties: | Implant Materials & Artificial Organs | Product Tolerance: | +-0.01mm |
Highlight: | Astra Tech Implant EV Analog,4.8mm Implant EV Analog,Ultra Precision Implant EV Analog |

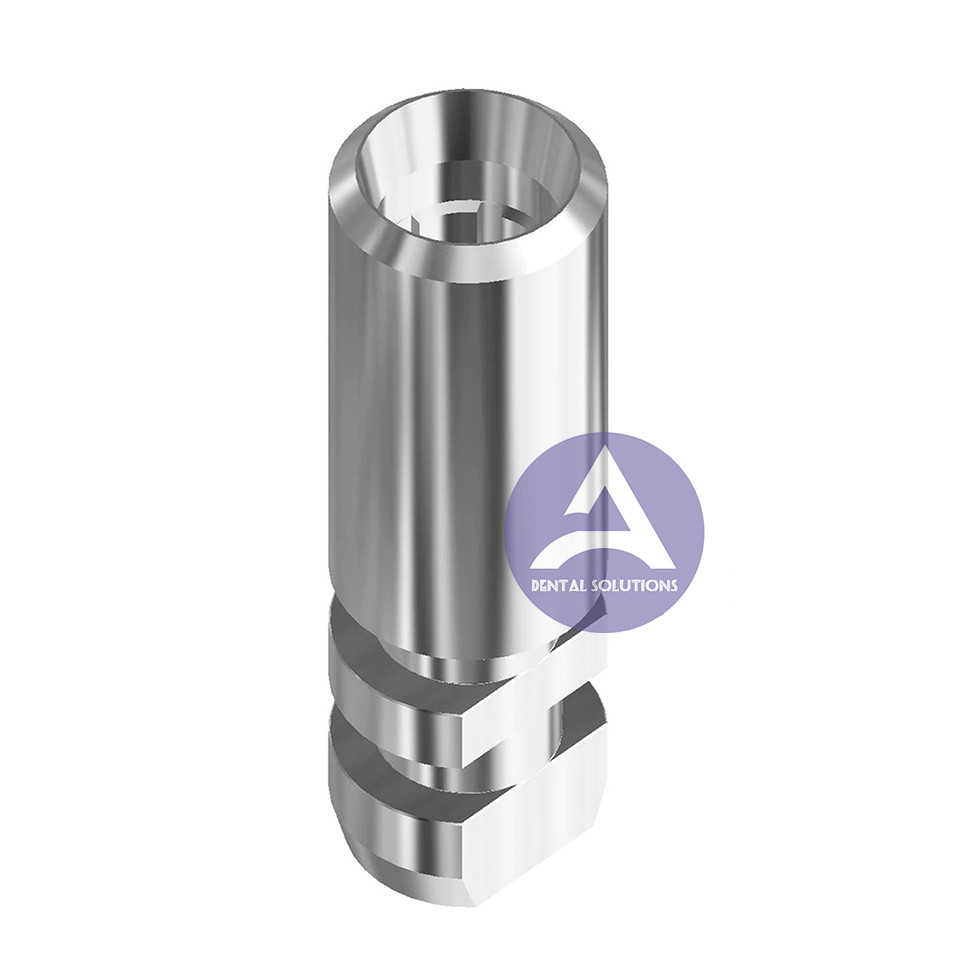

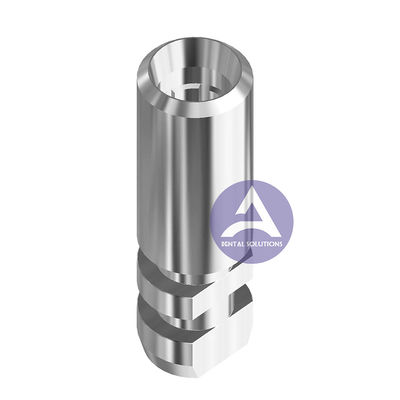

Ultra Precision 4.8mm Astra Tech Implant EV Analog
Astra Tech Implant EV® Analog Compatible with
3.6mm (Purple)/ 4.2mm (Yellow)/ 4.8mm (Blue)
Material:
Stainless Steel 303F / Titanium GR5
Feature:
* Reproducibility
* Precision machined up to ± 5µm
* Position indicator & Level stopper for 3D print & Stone model
* Anti-rotate design
Head that reproduces the implant system joint.
Position indicator and level stopper support precise positioning of removable gingiva mask.
Gentle retaining area to easily position the soft gum in the working model.
Effective circuit and self-locking cross retainers that, inside the plaster, provide extraordinary embedding even in cases of abutment drilling on model.
Its discrete size means that analogues can be easily fitted, despite the implants being close together or not parallel.
Approved by CE, ISO 9001, ISO 13485
|
ANALOGUE |
A |
B |
|
14.059 | EV 3.6 | 3,70 | Conic EVO | |
14.060 | EV 4.2 | 4,25 | Conic EVO | |
14.061 | EV 4.8 | 4,80 | Conic EVO | |
14.058 | EV Uniabutment | Cone 66º | EV Uni |
Points of Astra OsseoSpeed™ EV Analogue:
Fixture level
Five analogs specific to the five platform diameter groups (3.0, 3.6, 4.2, 4.8, 5.4) are offered. The analogs are color coded in accordance to the platform diameter group color identification scheme. Analogs for 3.0 implants are colored green, 3.6 platform diameter group analogs are purple, 4.2 diameter corresponds to yellow, 4.8 diameter matches with blue and the 5.4 platform is identified through the color brown.
OsseoSpeed™ EV Profile
Specific Profile EV analogs are offered in two platform sizes of 4.2 and 4.8mm color coded yellow and blue respectively. These analogs although color coded to match the color scheme of regular EV analogs can only be used with EV Profile impression copings.
