| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | Dentsply Xive® |
| Minimum Order Quantity: | 1PC |
| Price: | USD5~8 |
| Packaging Details: | 1pcs/bag |
| Delivery Time: | 3-5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Stainless Steel 303F / GR5 | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Compatible: | 3.0 Brown/ 3.4 Gray/ 3.8 Yellow/ 4.5 Blue/ 5.5 Red |
| Properties: | Implant Materials & Artificial Organs | Product Tolerance: | +-0.01mm |
| Highlight: | 5.5mm Red Dental Implant Analogue,Titanium GR5 Implant Analogue,Dentsply Xive Implant Analogue |
||

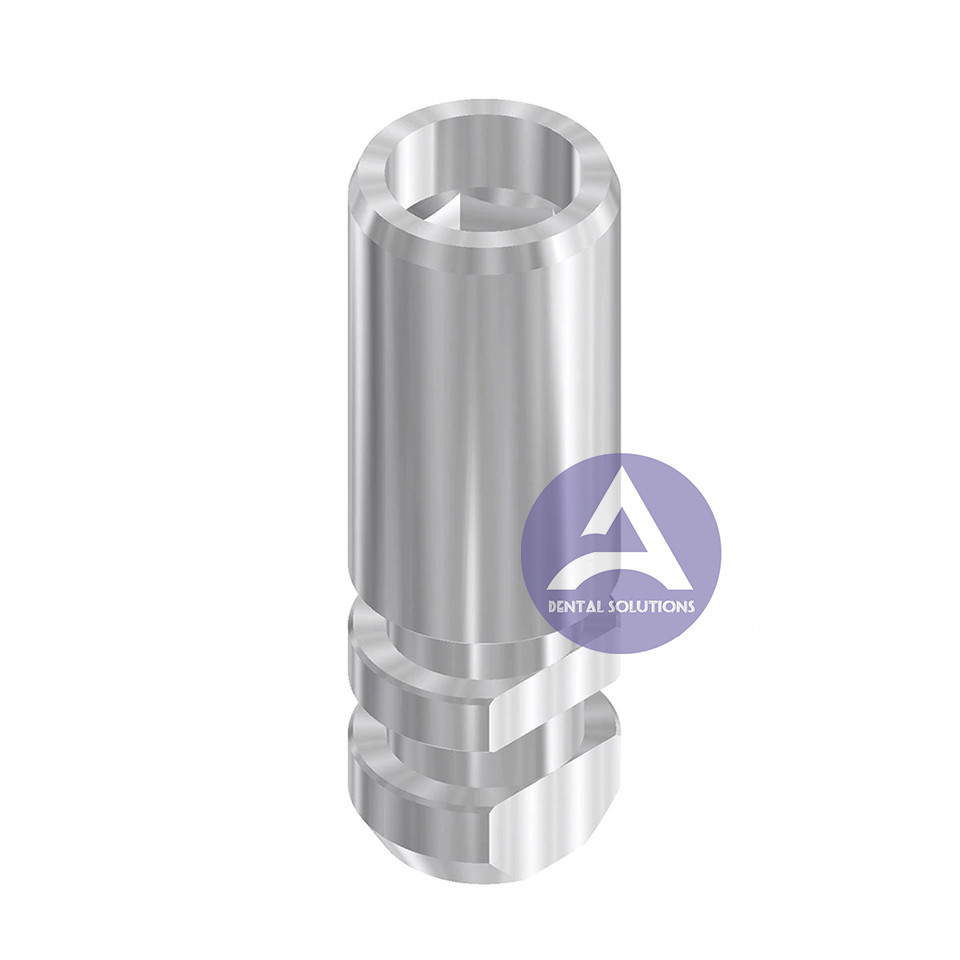

5.5mm Red Titanium GR5 Dentsply Xive Dental Implant Analogue
Dentsply Xive® Analog Compatible with
3.0 brown/ 3.4 gray/ 3.8 yellow/ 4.5 blue/ 5.5 red
Material:
Stainless Steel 303F / Titanium GR5
Feature:
* Reproducibility
* Precision machined up to ± 5µm
* Position indicator & Level stopper for 3D print & Stone model
* Anti-rotate design
Head that reproduces the implant system joint.
Position indicator and level stopper support precise positioning of removable gingiva mask.
Gentle retaining area to easily position the soft gum in the working model.
Effective circuit and self-locking cross retainers that, inside the plaster, provide extraordinary embedding even in cases of abutment drilling on model.
Its discrete size means that analogues can be easily fitted, despite the implants being close together or not parallel.
Approved by CE, ISO 9001, ISO 13485
|
|
ANALOGUE |
A |
B |
|
| 14.038 | NP | 3,40 | HEX 2,20 | |
| 14.039 | RP | 3,80 | HEX 2,50 | |
| 14.040 | WP | 4,50 | HEX 2,50 | |
| 14.071 | 5.5 | |||
Points of Dentsply Xive® Analogue:
Xive® S
Analogs are manufactured out of aluminum in five diameters with a internal hex and color coded (3.0 brown, 3.4 gray, 3.8 yellow, 4.5 blue, and 5.5 red) for easy identification. Xive® S analogs are interchangeable with appropriate diameter analogs of the Frialit® S implant system.
Xive® TG
Analogs are manufactured out of steel in one configuration with a external square to universally fit any of the three TG implant diameters (3.4 gray, 3.8 yellow and 4.5mm blue).
