Place of Origin: | China |
---|---|
Brand Name: | ANGELS |
Certification: | TUV CE, ISO13485, ISO9001 |
Model Number: | Biomet 3I Certain® |
Minimum Order Quantity: | 10pcs |
Price: | USD15-20/pc, included screw |
Packaging Details: | 1pcs/bag |
Delivery Time: | 3~5 days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 500,000pcs/month |
Material: | Ti 6AI-4V ELI (Grade 5) | Warranty: | 12 Months |
---|---|---|---|
After-sale Service: | Online Technical Support | Degree: | 15°/25°/Custom Degree |
Compatible: | NP 3.4mm/ RP 4.1mm/ WP 5.0mm | Properties: | Implant Materials & Artificial Organs |
Product Tolerance: | +-0.01mm | ||
Highlight: | 3.4mm Angled Implant Abutment,4.1mm Angled Implant Abutment,Certain Implant Abutment |

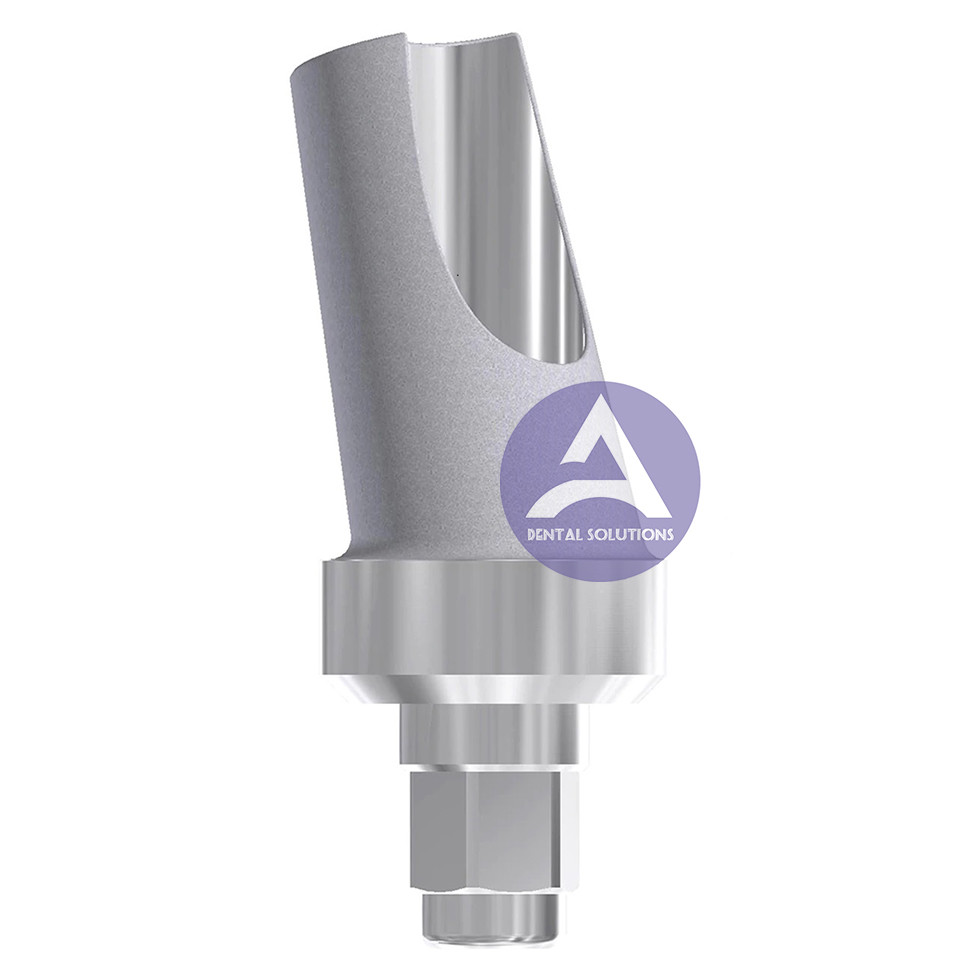

Biomet 3i Certain RP 4.1mm NP 3.4mm Angled Implant Abutment
Biomet 3i Certain® Titanium Angled Abutment Compatible
NP 3.4mm/ RP 4.1mm/ WP 5.0mm -- 15°/25° Degree
Desciption:
This angled abutment comes with a screw that takes a .048/1.20mm hex driver
This abutment is prep-able with a 1mm/2mm/3mm collar height. (Or according your customize request)
Angled abutments are available for cases where implants are not able to provide alignments leading to clinical parallelism.
15°/25° Angled Abutments in three cuff heights for pre-angulation.
Angled abutments are designed to be used with cemented prostheses.
They offer the clinician a wide range of three-dimensional options.
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
* Titanium interface abutment
* 1pc Screw Included
* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility
* Can production Custom interface
Approved by CE, ISO 9001, ISO 13485
|
ABUTMENT |
A |
B |
C |
D |
|
13.014 | NP | 3,45 | Hex.2,15 | 2,00 | 4,50 | |
13.015 | RP | 4,10 | Hex.2,70 | 2,00 | 4,90 | |
13.016 | WP | 5,00 | Hex.2,70 | 2,00 | 5,90 |
Points of Biomet 3i Certain® internal hex Abutment:
Fig. 6
GingiHue® Titanium abutments for internally hexed implants are titanium nitride plated to negate a dark show through of the abutment under thin biotype tissue. All platform diameter straight abutments are machined with a hexagonal implant/abutment interface. 4.1, 5.0 and 6.0mm platform abutments engage only the primary ("coronal") internal hexagon, affording six different positions. 3.4mm platform abutments engage the duodegon of the implant, affording 12 possible seating positions. All GingiHue® abutments are produced with a non sloping collar in two possible heights of 2 and 4mm (Fig.5). Each collar height is designed with a choice of three emergence profiles of 5mm, 6mm and 7.5mm (Fig.6). 3.4mm platform abutments are only available with a single emergence profile of 3.8mm. Emergence profiles coordinate with available EP® (Emergence Profile) healing abutments
Fig. 7
Angled GingiHue® titanium abutments are machined with a 15 degree angle (Fig.7, right). 4.1, 5.0 and 6.0mm abutments engage the secondary indexing feature (duodegon), affording 12 different positions of the abutment on the implant. 3.4mm platform implants can also be positioned 12 different ways. Collar heights and emergence profiles of angled abutments mirror straight titanium abutment options. All abutments are color coded at the implant/abutment interface for platform diameter identification purple (3.4), blue (4.1), yellow (5.0) and green (6.0) Final screws are not included with titanium abutments and need to be purchased separately.
