| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | Astra Tech Implant EV® |
| Minimum Order Quantity: | 10Pcs |
| Price: | USD8~12/pc, included screw |
| Packaging Details: | 1pcs/bag |
| Delivery Time: | 3~5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Castable Plastic | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Connection: | Engaging & Non-Engaging |
| Size: | 3.6mm(Purple)/ 4.2mm(Yellow)/ 4.8mm (Blue) | Properties: | Implant Materials & Artificial Organs |
| Product Tolerance: | +-0.01mm | ||
| Highlight: | 3.6mm Purple Castable Implant Abutment,3.6mm Purple Castable Abutment,4.8mm Castable Abutment |
||

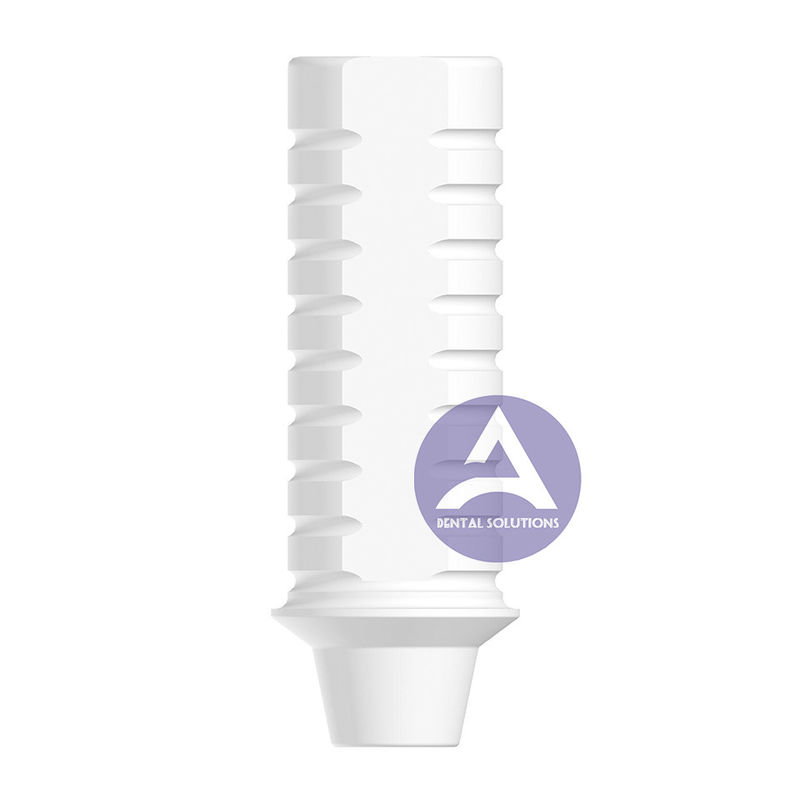

Astra Tech Implant EV® UCLA All-Plastic Castable Abutment Compatible
3.6mm(Purple)/ 4.2mm(Yellow)/ 4.8mm (Blue) (Engaging & Non-Engaging)
Material:
Pastic Castable
Made of a totally castable material for the stable retention of modelling materials, resins or waxes by means of two flat surfaces that stabilize the lightening and loosening movements during production of the structure or during clinical use.
Approved by CE, ISO 9001, ISO 13485
|
|
CASTABLE ON IMPLANT |
A |
B |
C |
D |
||
| 28.059 | EV 3.6 | Non-engaging | 2,90 | Circular | 1,00 | 4,50 | |
| 28.060 | EV 4.2 | Non-engaging | 3,50 | Circular | 1,00 | 4,50 | |
| 28.061 | EV 4.8 | Non-engaging | 4,10 | Circular | 1,00 | 4,50 | |
Points of Astra Tech EV UCLA Abutment:
■ Single, partial and fully* edentulous situations
■ All* positions in the mouth *Use of ZirDesign EV should be carefully evaluated in situations with unfavorable loading conditions and
should not be used in the molar region.
TiDesign™ EV/ZirDesign™ EV
TiDesign EV and ZirDesign EV are two-piece anatomically pre-designed abutments. The design and dimensions are based upon the natural dentition utilizing a site-specific, crown-down approach.
The round and triangular options mimic a variety of tooth shapes and are harmonized with the soft tissue sculpturing created by the corresponding healing abutment.
■ Round – design for the majority of restorative situations
■ Triangular – primarily for incisors and canines with distinct triangular shape
■ Angled – for offset situations both in the anterior and posterior regions, compensating for implants in a restoratively unfavorable position
■ Abutment Screw EV is color coded
