| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | Dentsply Xive® |
| Minimum Order Quantity: | 10Pcs |
| Price: | USD8~12/pc, included screw |
| Packaging Details: | 1pcs/bag |
| Delivery Time: | 3~5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Castable Plastic | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Connection: | Engaging & Non-Engaging |
| Size: | 3.0mm/ NP 3.4mm/ RP 3.8mm/ WP 4.5mm/ 5.5mm | Properties: | Implant Materials & Artificial Organs |
| Product Tolerance: | +-0.01mm | ||
| High Light: | Dentsply Xive Castable Abutment,RP 3.8mm Castable Implant Abutment,WP 4.5mm Castable Abutment |
||

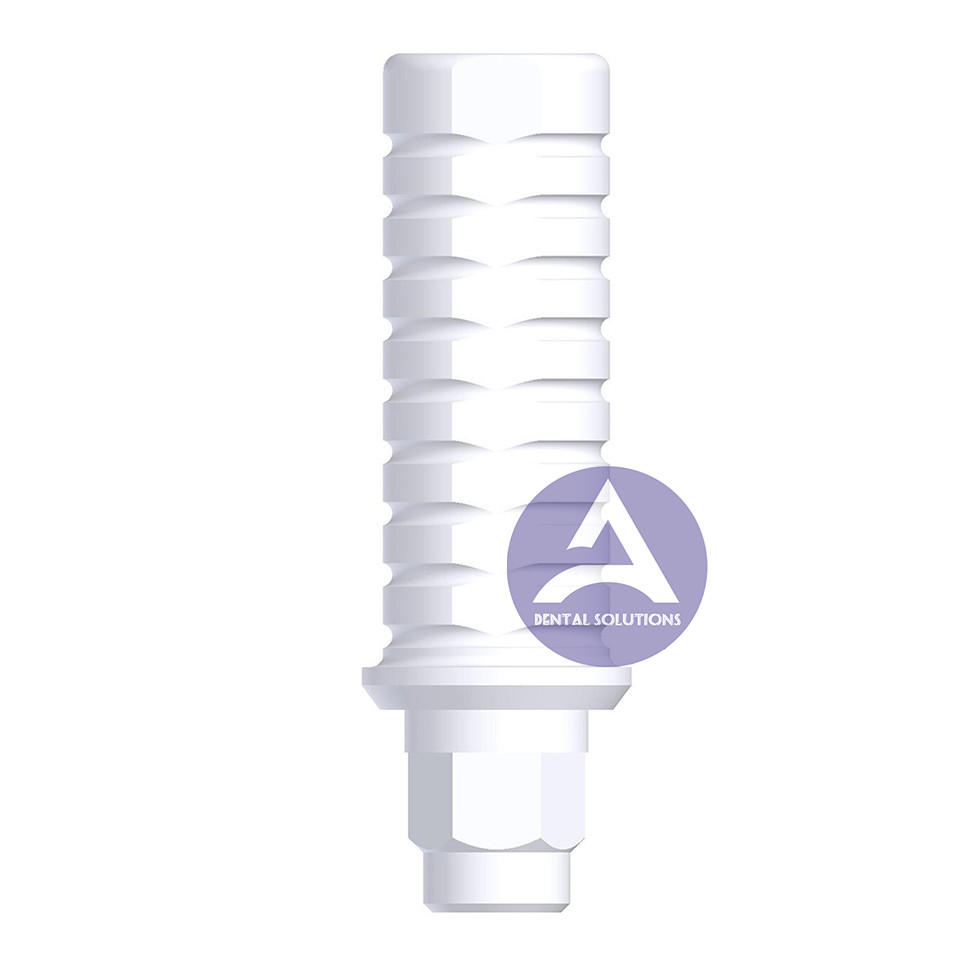

RP 3.8mm WP 4.5mm Dentsply Xive Castable Implant Abutment
Dentsply Xive® UCLA All-Plastic Castable Abutment Compatible
3.0mm/ NP 3.4mm/ RP 3.8mm/ WP 4.5mm/ 5.5mm (Engaging & Non-Engaging)
Material:
Pastic Castable
Made of a totally castable material for the stable retention of modelling materials, resins or waxes by means of two flat surfaces that stabilize the lightening and loosening movements during production of the structure or during clinical use.
Approved by CE, ISO 9001, ISO 13485
|
|
CASTABLE |
A |
B |
C |
D |
||
| 28.038 | NP | Non-engaging | 3,40 | Circular | 0,70 | 4,00 | |
| 29.038 | NP | Engaging | 3,40 | Hex. 2,20 | 0,70 | 4,00 | |
| 28.039 | RP | Non-engaging | 3,80 | Circular | 0,70 | 4,00 | |
| 29.039 | RP | Engaging | 3,80 | Hex. 2,50 | 0,70 | 4,00 | |
| 28.040 | WP | Non-engaging | 4,50 | Circular | 0,70 | 4,00 | |
| 29.040 | WP | Engaging | 4,50 | Hex. 2,50 | 0,70 | 4,00 | |
Points of Dentsply Xive UCLA Crco base Abutment:
Xive® S
UCLA's (AuroBase, cast on abutment) are only offered as an indexed component. Screws (1.22mm hex) are included as a kit with each abutment for this implant system. All screws are interchangeable from implant diameter to implant diameter with the exception of 3.0mm (brown) abutments, which have their own specific screws.
Xive® TG
UCLA's (AuroBase, cast on) abutments are only offered as an indexed component. No zirconia abutments are available for this system. All screws (1.22mm hex and slot combination) are interchangeable from implant diameter to implant diameter and need to be purchased separately.
