| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | BioHorizons® Internal |
| Minimum Order Quantity: | 1PC |
| Price: | USD5~8 |
| Packaging Details: | 1pcs/bag |
| Delivery Time: | 3-5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Stainless Steel 303F / GR5 | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Compatible: | 3.0mm/ NP 3.5mm/ RP 4.5mm/ WP 5.7mm |
| Properties: | Implant Materials & Artificial Organs | Product Tolerance: | +-0.01mm |
| Highlight: | TUV CE Dental Analog,BioHorizons Dental Analog,NP 3.5mm Dental Analog |
||

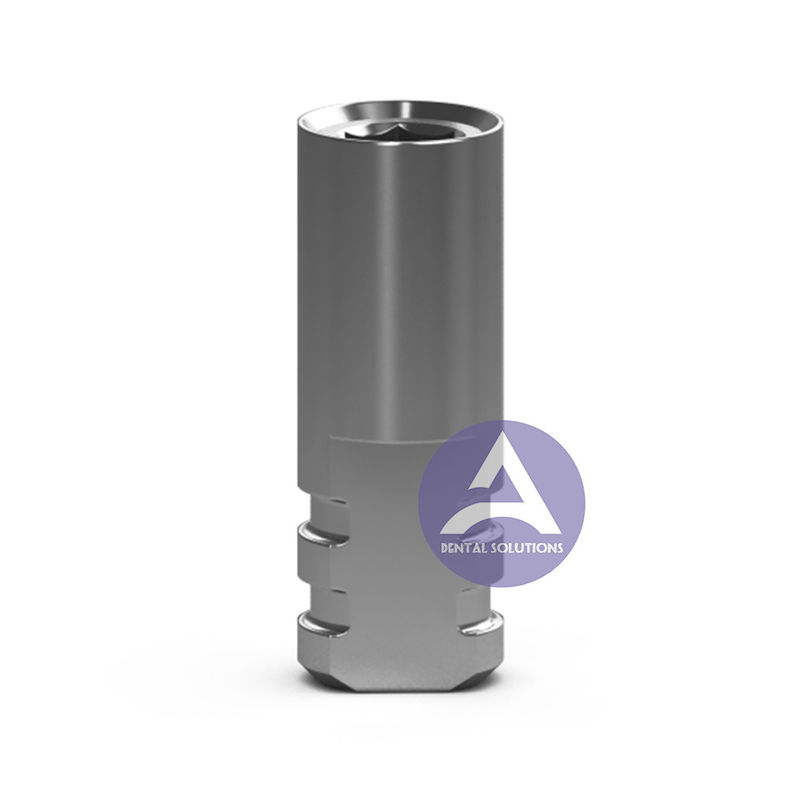

RP 4.5mm NP 3.5mm BioHorizons Internal Dental Analog
BioHorizons® Internal Analog Compatible with
3.0mm/ NP 3.5mm/ RP 4.5mm/ WP 5.7mm
Material:
Stainless Steel 303F / Titanium GR5
Feature:
* Reproducibility
* Precision machined up to ± 5µm
* Position indicator & Level stopper for 3D print & Stone model
* Anti-rotate design
Head that reproduces the implant system joint.
Position indicator and level stopper support precise positioning of removable gingiva mask.
Gentle retaining area to easily position the soft gum in the working model.
Effective circuit and self-locking cross retainers that, inside the plaster, provide extraordinary embedding even in cases of abutment drilling on model.
Its discrete size means that analogues can be easily fitted, despite the implants being close together or not parallel.
Approved by CE, ISO 9001, ISO 13485
|
Points of Biohorizons Analogue:
1. External hex Fixture level analogs (Fig.1) are color coded according to the implant platform diameter, yellow (3.5/3.7mm), green (4.0/4.2mm), blue (5.0/5.2mm) and purple (6.0/6.2mm). The external hex dimensions are machined to different dimensions and the analogs are not interchangeable from platform diameter to platform diameter. |
Fig. 1 |
|
2. Internal and Tapered Internal hex Fixture level analogs (Fig.2) are color coded according to implant platform diameter, yellow (3.5mm), green (4.5mm) and blue (5.7mm). The internal hex platform dimensions are machined to different dimensions and the analogs are not interchangeable from platform diameter to platform diameter. |
Fig. 2 |
|
|
