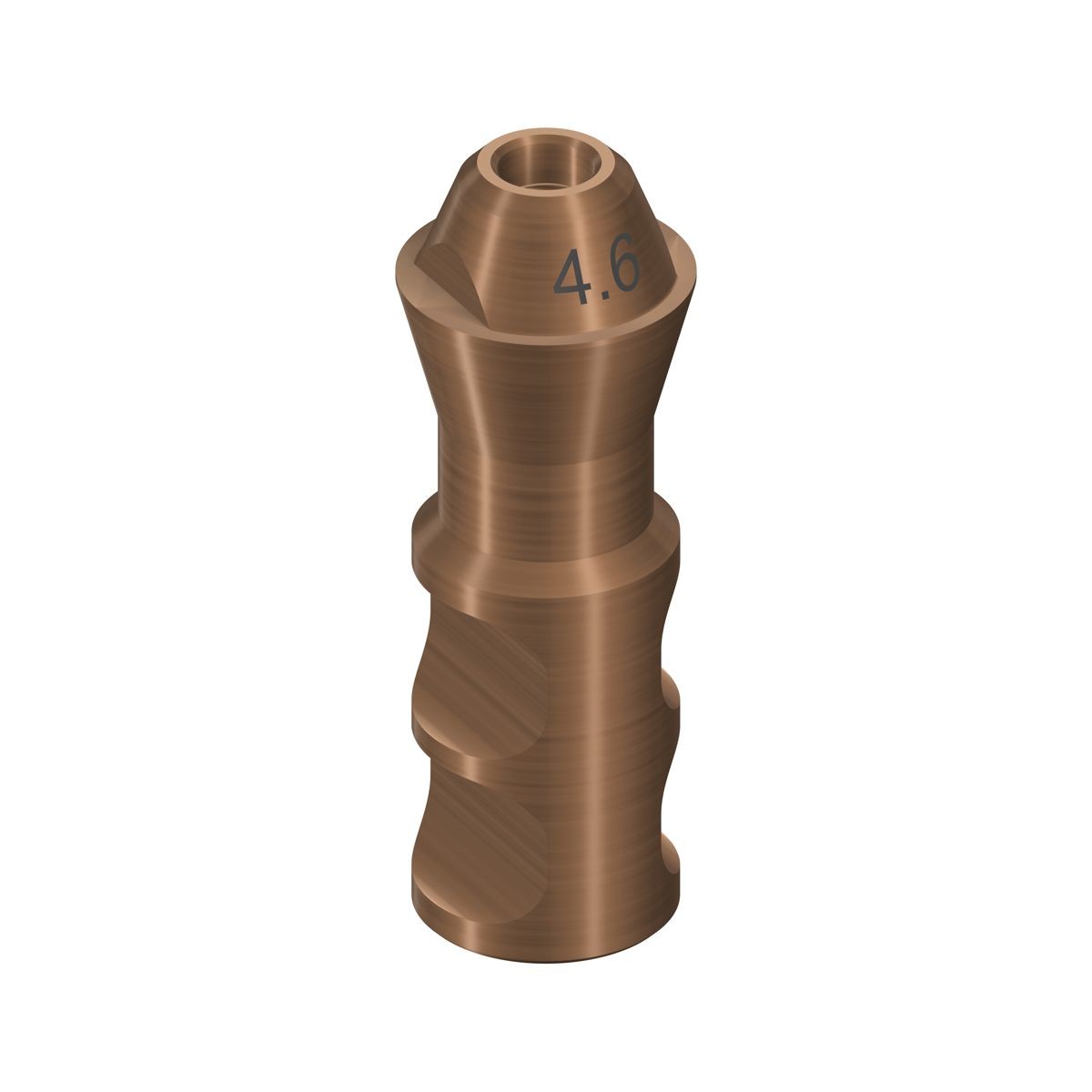

ITI NC RC Analog For Screw Retained Abutment TAN Straight 0° D 4.6mm

Basic Information
Place of Origin: China
Brand Name: ANGELS
Certification: TUV CE, ISO13485, ISO9001
Model Number: ITI Straumann®
Minimum Order Quantity: 1PC
Price: USD5~8
Packaging Details: 1pcs/bag
Delivery Time: 3-5 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500,000pcs/month
Detail Information
Material: Stainless Steel 303F / GR5 Warranty: 12 Months
After-sale Service: Online Technical Support Compatible: NC/RC D 4.6mm
Properties: Implant Materials & Artificial Organs Product Tolerance: +-0.01mm
REF NO.: 023.4756
Highlight:

4.6mm RC Analog

,

ITI NC RC Analog

,

Screw Retained Abutment RC Analog


Product Description



ITI NC Analog for screw-retained abutment, TAN - straight 0°, D 3.5mm



ITI Straumann Dental Impalnt Multi Unit Analog Compatible with NC/RC 4.6mm





Material:

Stainless Steel 303F / Titanium GR5



Reference Number:

023.2756

Feature:
* Reproducibility
* Precision machined up to ± 5µm
* Position for screw-retained (Multi unit) abutment


Head that reproduces the implant system joint.
Position indicator and level stopper support precise positioning of removable gingiva mask.
Gentle retaining area to easily position the soft gum in the working model.
Effective circuit and self-locking cross retainers that, inside the plaster, provide extraordinary embedding even in cases of abutment drilling on model.
Its discrete size means that analogues can be easily fitted, despite the implants being close together or not parallel.

Approved by CE, ISO 9001, ISO 13485

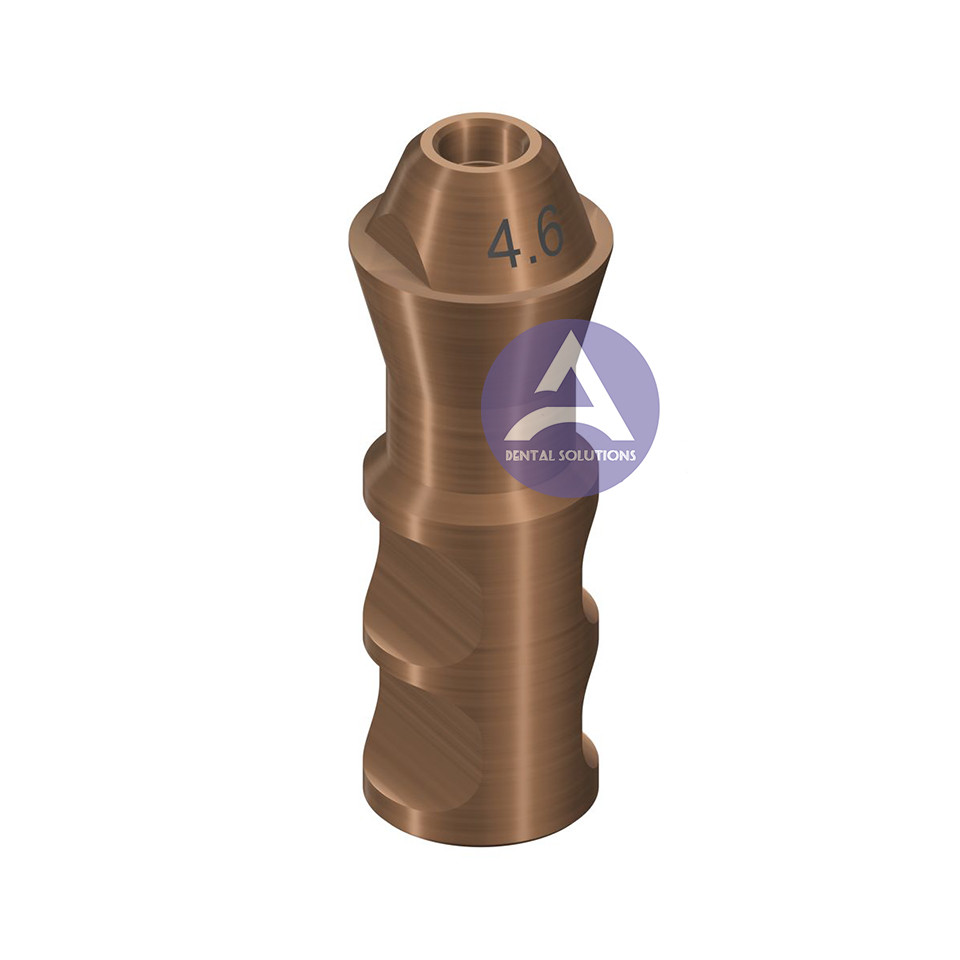

ITI NC RC Analog For Screw Retained Abutment TAN  Straight 0° D 4.6mm 0



Component
Implant Analog
Implant Line
Bone Level Implants
Prosthetic Solution Category
Abutments
Connection Type
NC/RC (Narrow CrossFit®)/Regular CrossFit®)
Impression Tray
Open/Closed Tray
Abutment Type
Standard Abutment
Impression Level
Implant/Abutment Level
Indication
Bridge (multi unit)
Fixation
Screw-retained
Angulation
Straight
Diameter
Ø 4.6 mm





Points of ITI Straumann Bone Level Analogue:










ITI NC RC Analog For Screw Retained Abutment TAN  Straight 0° D 4.6mm 1

Fig. 4

NC analogs (Fig.4 top row) are coded blue (3.5mm) or yellow (5mm) to signify the emergence profile and either a black or white color band to identify the abutment height (4mm, 5mm). RC analogs (Fig.4 bottom row) are coded yellow (5mm) or brown (6.5mm) to signify the emergence profile and either a black or white color band to identify the abutment height (4mm, 5mm). To further differentiate the analogs, each NC analog is inscribed with the letters "NC" and RC analogs are inscribed with the letters "RC".
