| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | Nobel Biocare Active® |
| Minimum Order Quantity: | 1PC |
| Price: | USD5~8 |
| Packaging Details: | 1pcs/bag |
| Delivery Time: | 3-5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Stainless Steel 303F / GR5 | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Compatible: | NP/RP |
| Properties: | Implant Materials & Artificial Organs | Product Tolerance: | +-0.01mm |
| REF NO.: | 36697/36698 | ||
| Highlight: | Nobel Biocare Active Analog Implant,GR5 Active Analog Implant,Stainless Steel 303F Active Analog Implant |
||

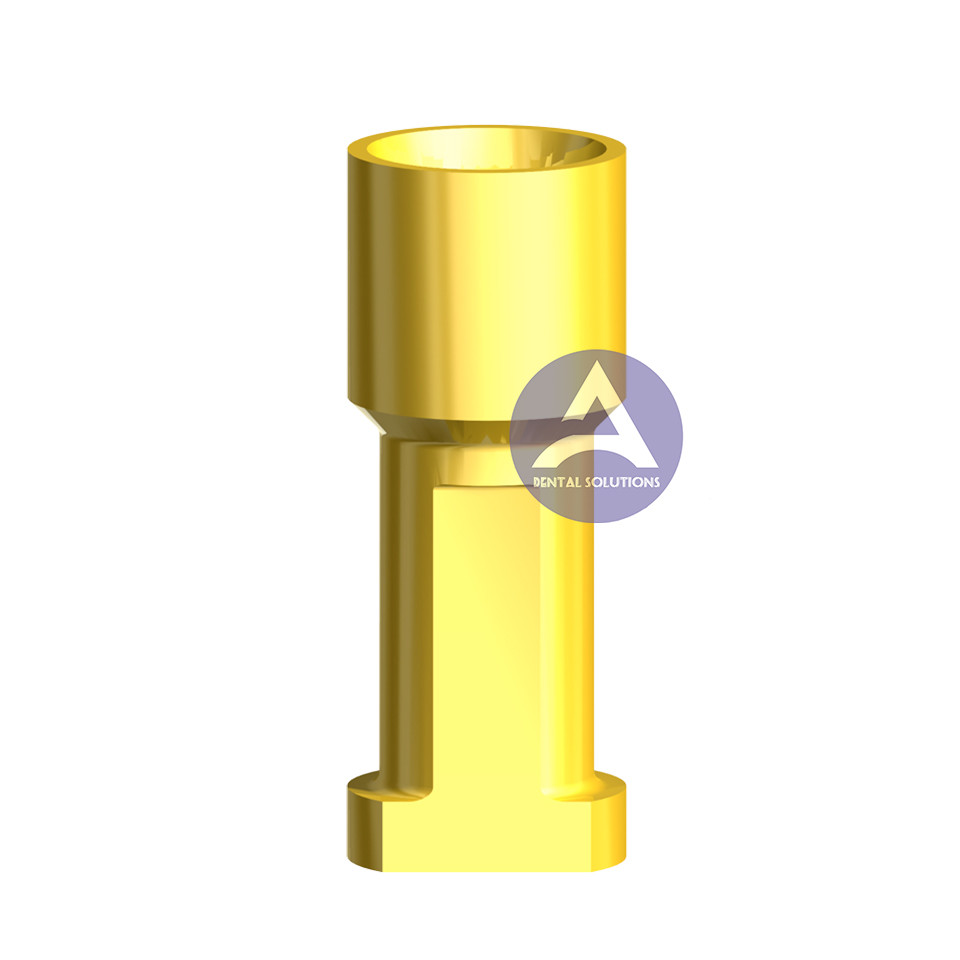

Nobel Biocare Active Analog Implant Replica Conical Connection NP/RP 36697/36698
Material:
Stainless Steel 303F / Titanium GR5
Reference Number:
36697
36698
Feature:
* Reproducibility
* Precision machined up to ± 5µm
* Position for screw-retained (Multi unit) abutment
Head that reproduces the implant system joint.
Position indicator and level stopper support precise positioning of removable gingiva mask.
Gentle retaining area to easily position the soft gum in the working model.
Effective circuit and self-locking cross retainers that, inside the plaster, provide extraordinary embedding even in cases of abutment drilling on model.
Its discrete size means that analogues can be easily fitted, despite the implants being close together or not parallel.
Approved by CE, ISO 9001, ISO 13485
| Implant Platform | Narrow Platform (NP) / Regular Platform (RP) |
|---|---|
| Connection Type | Internal Conical Connection |
| Works with | NobelActive, NobelActive TiUltra, NobelParallel CC, NobelParallel CC TiUltra, NobelReplace CC, NobelReplace CC PMC |
| Purpose |
CAD/CAM prosthetic, Pre-fab prosthetic
|
Fig. 1
(fixture level, internal hex)
Two fixture level analogs are available for this product group. NP (3.5mm, catalog # 34243, Fig. 1, left) analogs are color coded through a fuchsia colored anodization at the very edge of the abutment/analog interface. RP and WP implants share the same analog because both diameter implants implant/abutment interface is machined to the same exact dimensions. Therefore only one analog is available for both diameters. RP/WP (4.3, 4.9mm, catalog # 34244, Fig.1, right) analogs are not color coded themselves, only the packaging for the analogs provides color (yellow/blue) coded identification.
